3 - 24

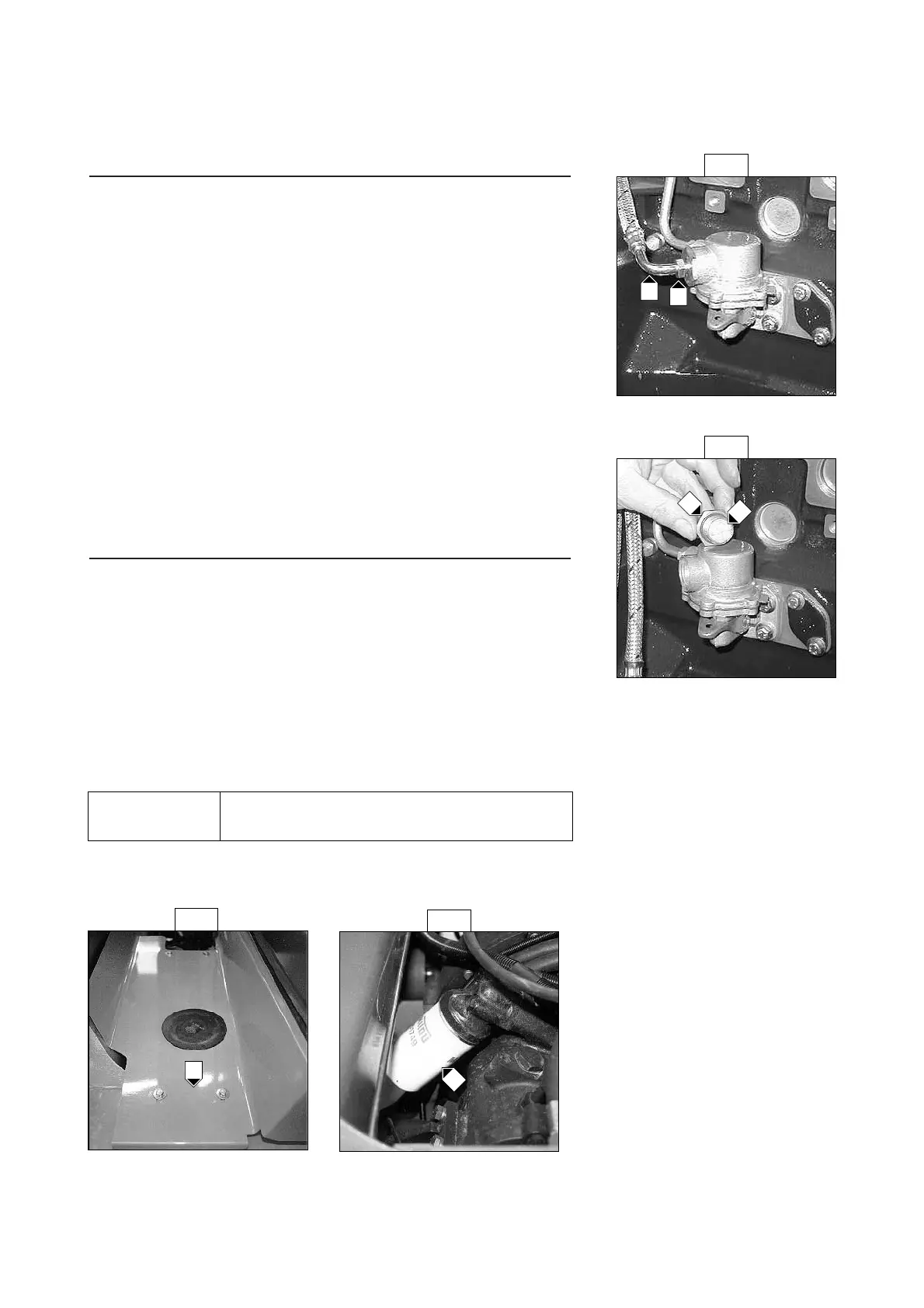

D5 - FUEL FEED PUMP
CLEAN
- Open the compartment.
- Loosen connection 1 (Fig. D5/1), lift hose 2 (Fig. D5/1) and protect the
aperture.
- Remove connection 3 (Fig. D5/2) and lift strainer 4 (Fig. D5/2).
- Carefully clean the strainer and connection using a brush soaked in clean
diesel fuel and dry them with a low pressure jet of compressed air.
- Reassemble connection 3 (Fig. D5/2) ensuring that the watertight seal is in
the correct position (Tightening torque 20 N.m or 14 ft/lbs).
- Reconnect hose 2 (Fig. D5/1) and check that the feed pump is watertight.
- Reprime the circuit by activating the feed pump.
- If necessary, bleed the fuel circuit (See G1 - FUEL SYSTEM in SECTION 3
- MAINTENANCE).
D6 - TRANSMISSION OIL FILTER
CHANGE
- Remove the cover plate 1 (Fig. D6/1).
- Unscrew and discard the transmission oil filter 2 (Fig. D6/2).
- Carefully clean the filter head with a clean, lint-free cloth.
- Slightly lubricate the new seal and fit the seal on the filter.
- Fill up the new transmission oil filter (See FILTERS CARTRIDGES AND
BELTS in SECTION 3 - MAINTENANCE) with oil (See LUBRICANTS AND
FUEL in SECTION 3 - MAINTENANCE).
- Refit the filter, making sure that the seal is correctly positioned and
tightened.
- Put back the cover plate 1 (Fig. D6/1).
D6/1
1
D6/2
2
D5/1
D5/2
4
3
1
2
Tighten the transmission oil filter by hand pressure
only and lock the filter in place by a quarter turn.
IMPORTANT
