3 - 29
E3 - TRANSMISSION OIL
DRAIN
E4 - T
RANSMISSION HOUSING STRAINER
CLEAN
Place the lift truck on level ground with the I.C. engine stopped, the
transmission oil still warm.
DRAINING THE OIL
- Place a container under drain plug 1 (Fig. E3/1) and under cover 2 (Fig.
E3/2) and unscrew the drain plug.
- Remove cover plate 3 (Fig. E3/3).
- Remove dipstick 4 (Fig. E3/4) and unscrew filling plug 5 (Fig. E3/4) in order
to ensure that the oil is drained properly.
CLEANING THE STRAINER
- Remove cover 2 (Fig. E3/2) and set aside the O-ring joint and sealing
washer.
- Allow the rest of the oil to drain away.
- Remove and clean the strainer using a compressed air jet.
- Clean the magnetic section on the plate.
- Refit the assembly and tighten up plate 2 (Fig. E3/2) (Tightening torque 18
to 31 N.m or 13-22 ft/lbs).
FILLING UP THE OIL
- Refit and tighten drain plug 1 (Fig. E3/1) (Tightening torque 34 to 54 N.m or
25-40 ft/lbs).
- Fill up with oil (See LUBRICANTS AND FUEL in SECTION 3 -
MAINTENANCE) by filler port 5 (Fig. E3/4) and refit the plug.
- Check the level with the dipstick 4 (Fig. E3/4) (See A5 - TRANSMISSION
OIL LEVEL in SECTION 3 - MAINTENANCE).
- Check any possible leaks from the drain plug or cover.
- Put back the cover plate 3 (Fig. E3/3).

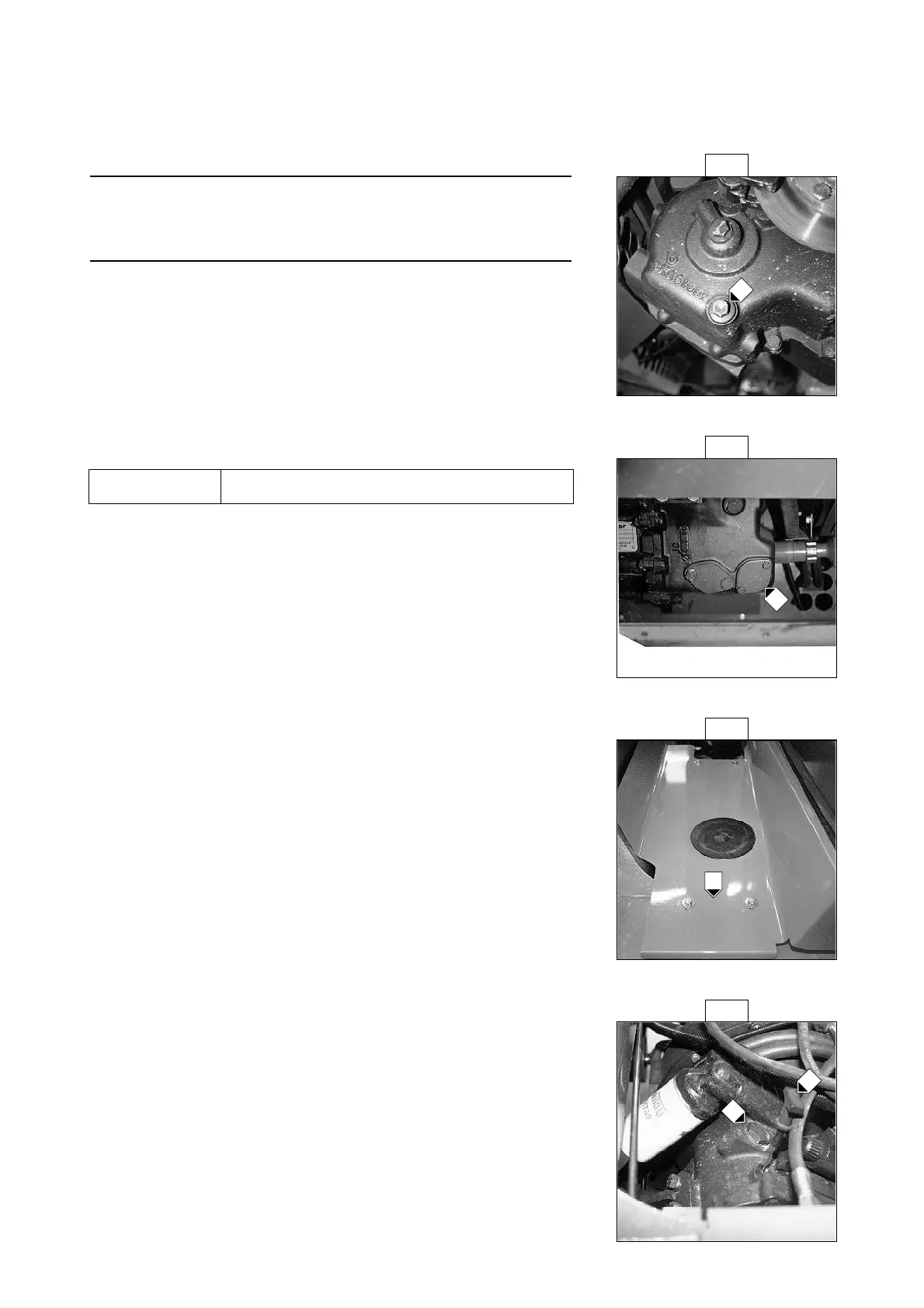

E3/2
E3/1
E3/3
E3/4
1
2
3
4
5
Dispose the drain oil in an ecological manner.
IMPORTANT
