G3 - LIFT TRUCK
TOW
- Put the forward/reverse lever and the gear shift in neutral (As model of lift truck).
- Release the parking brake.
- Put the warning lights on.
- If the I.C. engine is not running there will be no steering or braking assistance. Operate the steering and pedal slowly
avoiding sudden abrupt movements.
G4 - L
IFT TRUCK
SLING

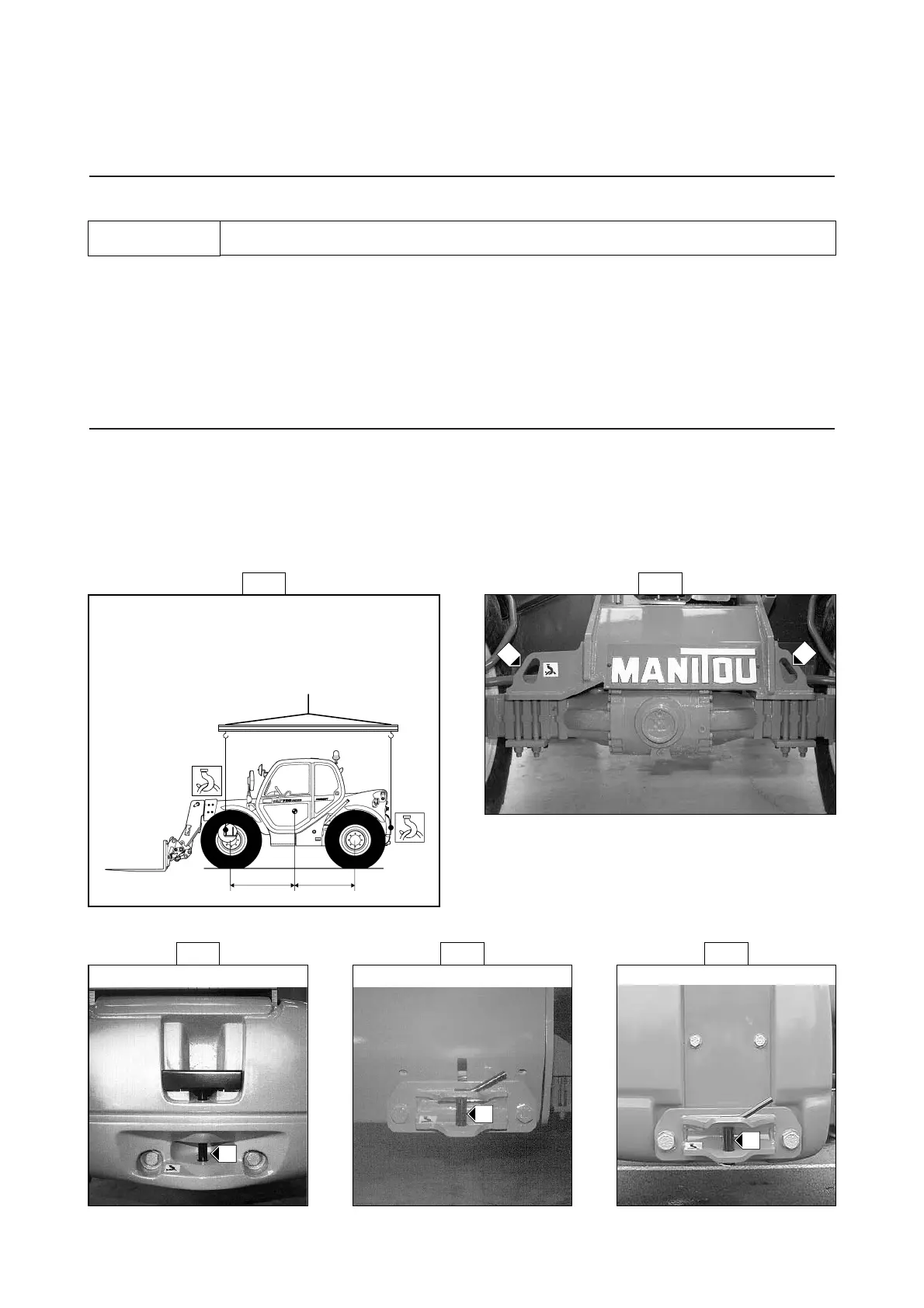

- Take into account the position of the lift truck gravity center for lifting (Fig. G4/1).
- Place the hooks in the fastening points provided (Fig. G4/2 and G4/3).
AB
G4/1
G4/2
A = 1290 mm (50.78 in) B = 1270 mm (50 in) MLT 629
A = 1445 mm (56.88 in) B = 1115 mm (43.9 in) MLT 633
A = 1370 mm (53.94 in) B = 1190 mm (46.85 in) MLT 730
A = 1480 mm (58.27 in) B = 1080 mm (42.52 in) MT 732
A = 1465 mm (57.68 in) B = 1190 mm (46.85 in) MT 932
G4/3 G4/3
MLT 629 . ......... MLT 633/730 . .........
Do not tow the lift truck at more than 25 km/h (15 mph).
IMPORTANT
G4/3
MT 732/932 . .....
