1 - DRIVER
'S SEAT
STANDARD
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.

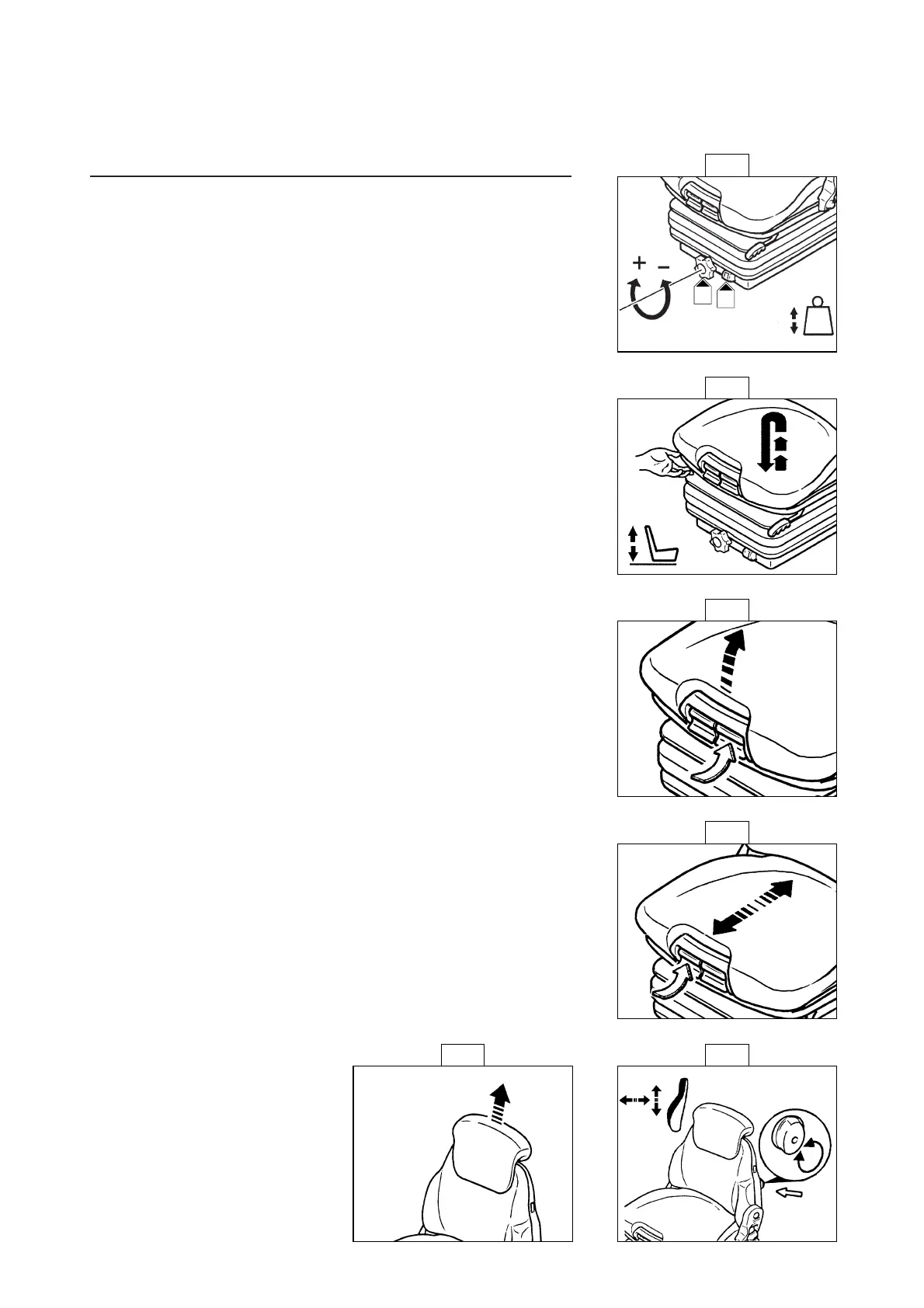

WEIGHT ADJUSTMENT (FIG. A)
It is advised that the weight be adjusted when the driver is not sitting in the
cab.
- Refer to graduation 1 of the seat.
- Turn handle 2 according to the driver’s weight.
NOTE : To avoid any health problems, it is recommended that the weight
should be checked and adjusted before starting up the lift truck.
SEAT HEIGHT ADJUSTMENT (FIG. B)
Raise the seat to the desired position, until you hear the ratchet click. If you
raise the seat above the last notch (Stop), the seat drops down to the lowest
position.
SEAT BACK-REST ANGLE ADJUSTMENT (FIG. C)
The back-rest angle of the seat may be adjusted to suit the individual.
- Press the left-hand button while pushing on the seat or relaxing pressure on
the seat to find a comfortable position.
SEAT DEPTH ADJUSTMENT (FIG. D)
The depth of the seat may be adjusted to suit the individual.
- Press the right-hand button while raising or lowering the seat to find the
desired position.
EXTENDING THE HEAD-REST (FIG. E)
- The height of the back-rest can be adjusted by pulling it upwards (The
notches will click) up to the stop.
- The head-rest can be removed by applying sufficient pressure to pull it off
the stop.
LUMBAR ADJUSTMENT (FIG. F)
This increases the comfort of the seat and the driver’s freedom of movement.
- Turn the handle either left or right to adjust the height or depth of the lumbar
support.
