2 - 33
F - RED BRAKING OIL LEVEL LAMP
If the lamp and the buzzer come on, when the lift truck is running, stop the I.C. engine immediately and check the
braking oil level. In the event of an abnormal dropping of the level, consult your dealer.
G - RED PARKING BRAKE LAMP
This lamp comes on when the parking brake is applied.
H - RED ALTERNATOR CHARGE LAMP
If the lamps E - F - G - H - I - J - K and the buzzer come on, when the lift truck is running, stop the I.C. engine
immediately and check the electrical circuit as well as the alternator belt.
I - RED I.C. ENGINE OIL PRESSURE LAMP
If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause
(See oil level in engine crankcase).
J - RED I.C. ENGINE WATER TEMPERATURE LAMP
If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and investigate the
cooling system for the cause of the malfunction.
K - RED LAMP - AIR FILTER OR HYDRAULIC RETURN FILTER CLOGGED
The lamp and buzzer come on when the air filter cartridge or the hydraulic return oil filter cartridge is clogged up. Stop
the lift truck and carry out the necessary repairs (See cleaning and replacement requirments: FILTERS CARTRIDGES
AND BELTS in SECTION 3 - MAINTENANCE).
L - GREEN INDICATOR LAMP
M - GREEN SIDELIGHTS LAMP
N - GREEN LOW BEAM LAMP
O - BLUE MAIN BEAM LAMP
4 - N/A

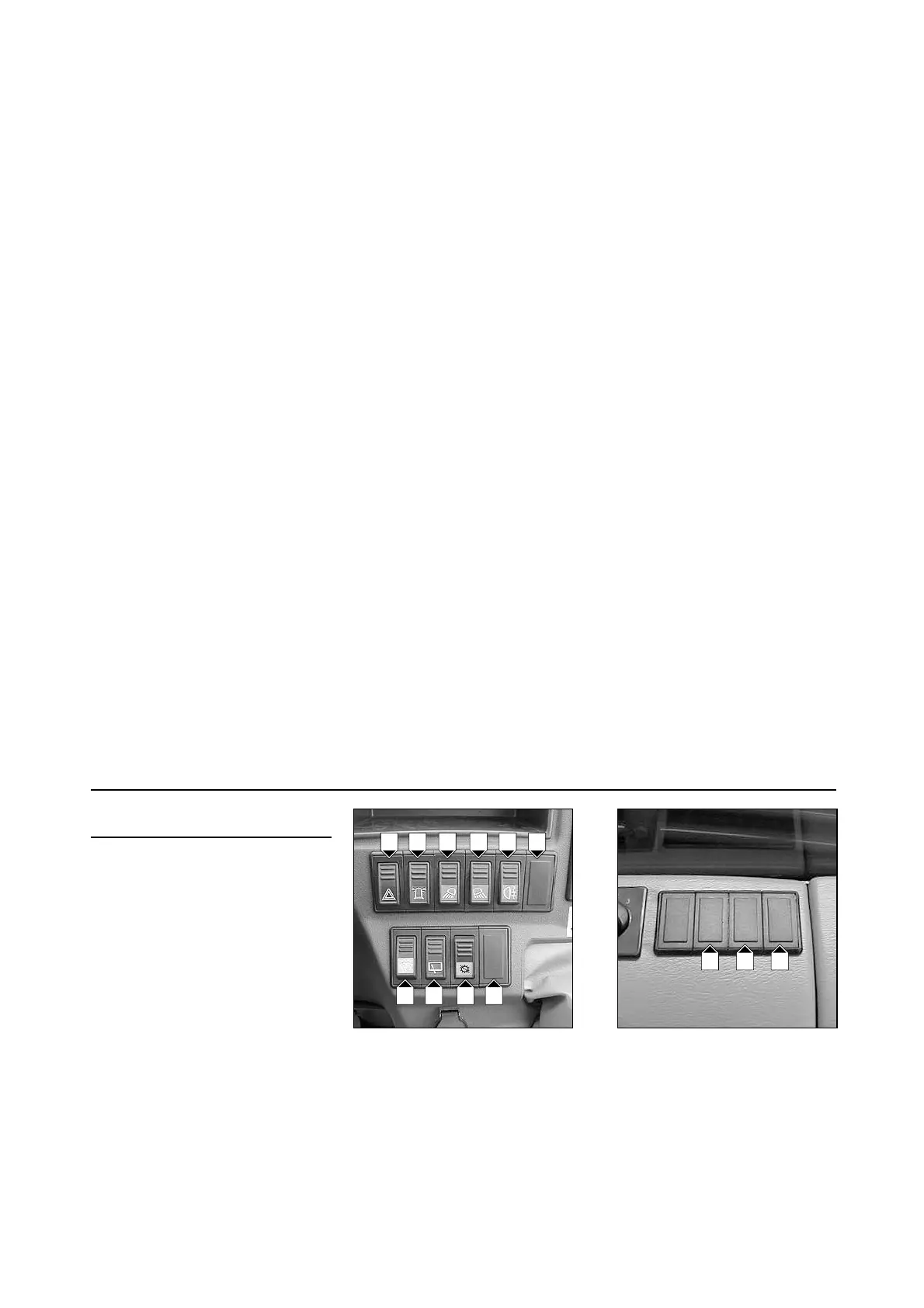

5 - SWITCH PANEL
A - WARNING LIGHTS
This switch enables the L.H. and R.H.
indicators to be switched on simultaneously, with the ignition off. The signal light indicates that the switch is being used.
B - FLASHING LIGHT
C - REAR FOG LIGHT
D - FRONT WINDSCREEN WIPER AND WINDSCREEN WASHER
This two position switch, when set on the "down" position and simultaneously pressed, allows the windscreen-washer
and the windscreen wiper to be operated, and when set on the "up" position, the windscreen wiper to be operated.
A B I J/K C
K/L
D E F K
M N O
