2 - SAFETY BELT
- Sit correctly on the seat.
- Check that seat belt is not twisted.
- Place the seat belt at hip level and not across the stomach.
- Attach the seat belt and check that it locks.
- Adjust the seat belt to your body shape without squeezing your hip.

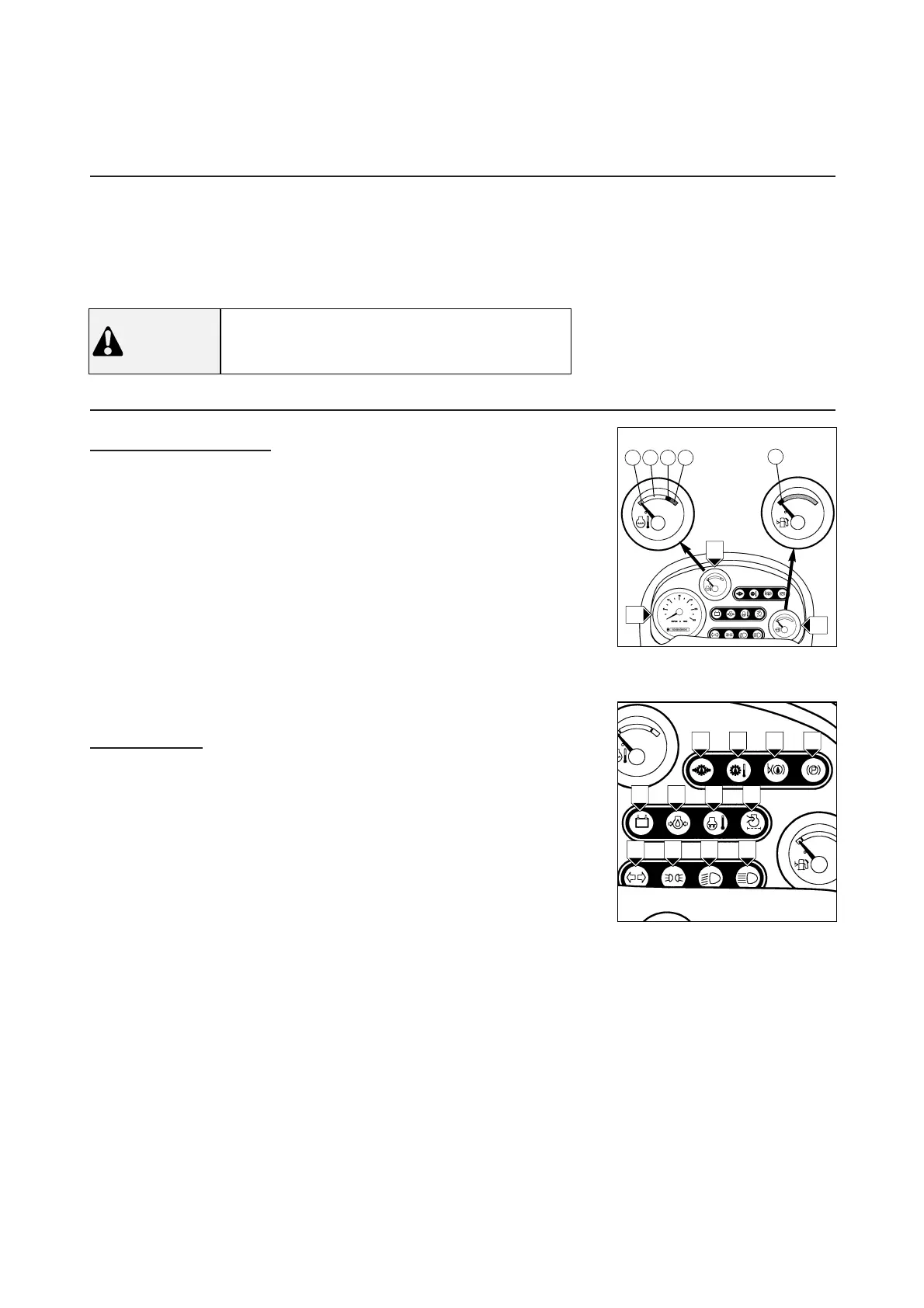

3 - C
ONTROL AND SIGNAL LIGHTS PANEL
CONTROL INSTRUMENTS
A - HOURMETER AND REV COUNTER
B - I.C. ENGINE WATER TEMPERATURE
Temperature zone B1 - Blue zone 0° - 50°C (32°-122°F)
B2 - Green zone 50° - 100°C (122°-212°F)
B3 - Black/red zone 100° - 105°C (212°-221°F)
B4 - Red zone 105° - 120°C (221°-248°F)
NOTE : Red indicator light “E” comes on between zone B3 and B4.
C - FUEL LEVEL
Red zone C1 indicates that you are using the reserve supply and that time of
use is limited.
SIGNAL LIGHTS
When activating the electrical system of the lift truck, all the red lamps and the
panel's buzzer must light to indicate their good working order. If one of the red
lamps or the buzzer does not function, carry out the necessary repairs.
D - RED TRANSMISSION OIL PRESSURE LAMP
The lamp and the buzzer come on when the pressure in the transmission,
when driving forward, is abnormally low. Stop the lift truck and look for the
cause (Insufficient transmission oil level, internal leak in the transmission,
etc.).
NOTE : The signal light operates in forward travel conditions only, the signal should not be taken into account when the
engine is running at idle or is stopped.
E - RED TRANSMISSION OIL TEMPERATURE LAMP
The lamp and the buzzer come on when the converter oil temperature is abnormally high. Stop the lift truck and look for
the cause of this overheating.
D E F G
H I J K
L M N O
B1 B2 B3 B4
C1
C
A
B
In no event should the lift truck be used if the seat belt
is defective (Fixing, locking, cuts, tears, etc.). Repair
or replace the seat belt immediately.
WARNING
