Manitou A Series Operator's Manual

2 - 35

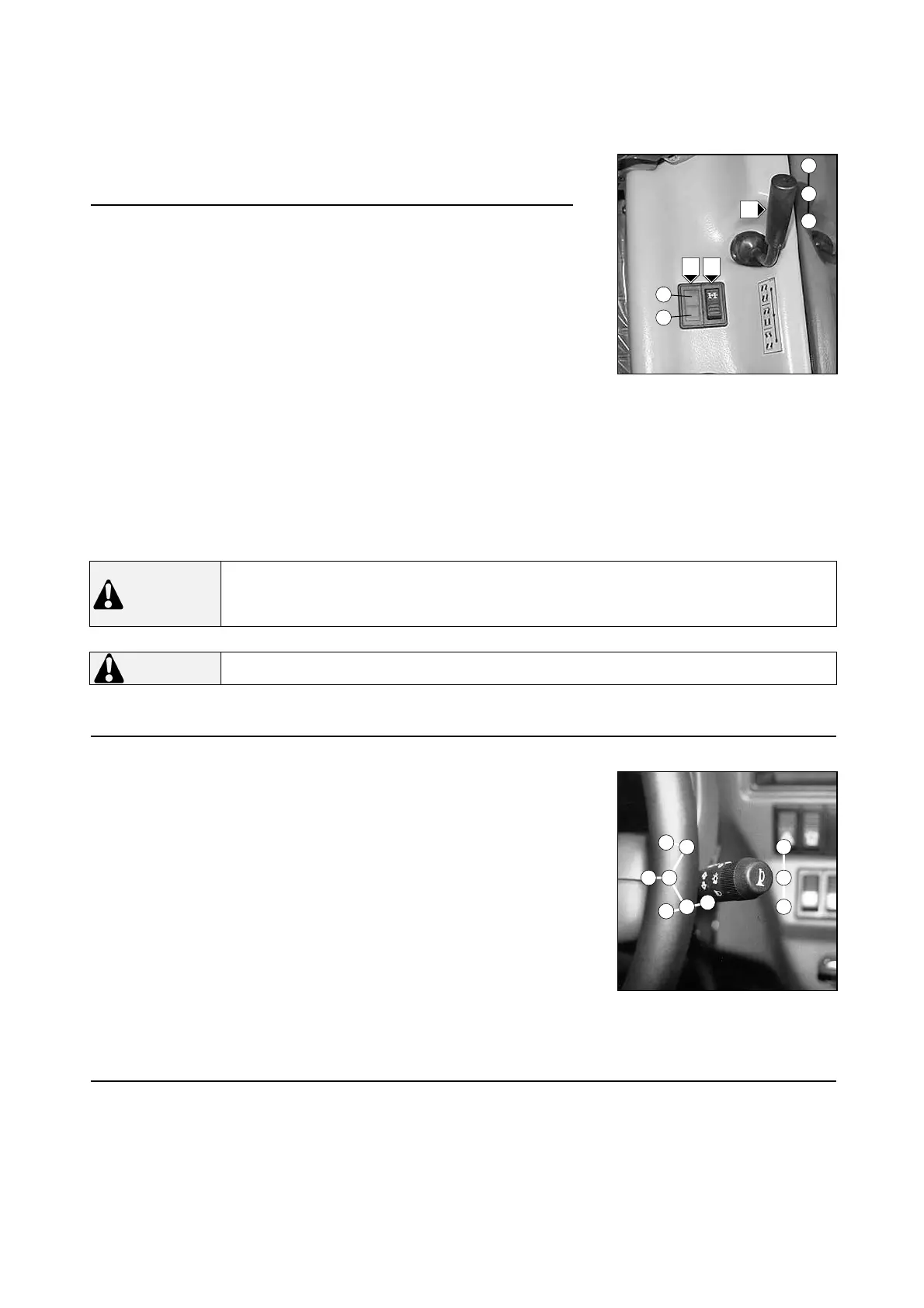

6 - SWITCH AND LAMPS FOR ALIGNMENT OF THE
WHEELS
Before selecting one of the three possible steering positions, bring the 4
wheels into alignment, i.e., in the straight ahead position.
A - GREEN LAMPS FOR ALIGNMENT OF THE WHEELS
These lamps come on to indicate the alignment of the wheels, in relation to
the axle of the lift truck. The lamp A1 for the front wheels and the lamp A2 for
the rear wheels.
B - SWITCH FOR ALIGNMENT OF THE WHEELS
This switch enables the use or not of the device for alignment of the wheels.The indicator light indicates its use.
WHEEL ALIGNMENT PROCEDURE.
- Connect the switch (Signal light ON).
- Shift the distributor control lever for steering selection 1 in position B (4 wheel steering).
- Turn the steering wheel and bring the rear wheels into alignment until the lamp A2 is on.
- Shift the distributor control lever for steering selection 1 in position A (Highway traffic).
- Turn the steering wheel and bring the front wheels into alignment until the lamp A1 is on.
7 - LIGHT SWITCH, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
A - All lights are off, the direction indicators do not flash.
B - The right hand direction indicators flash.
C - The left hand direction indicators flash.
D - The sidelights and the rear lights are on.
E - The dipped headlights and the rear lights are on.
F - The main beam headlights and the rear lights are on.
G - Headlight signal.
Pressing the switch sounds the horn.
NOTE : The positions D - E - F - G can be carried out without the ignition
being on.
8 - IGNITION SWITCH
The key switch has five positions :
P - Ignition off, parking position.
O - Ignition switched off and engine stopped.
I - Ignition on.
II - Heating.
III - The engine starts, return to position i as soon as the key is released.
D AG
C
G
B
F
G
A
E
A2
A1
C
B
A
A
B
1
Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive in
front wheel steer. During prolonged use of the front wheel steering mode, periodically check the
alignment of the rear tires, using the green lamps.
WARNING
In case of anomalies, consult your dealer.
WARNING
FORKLIFT SAFETY
