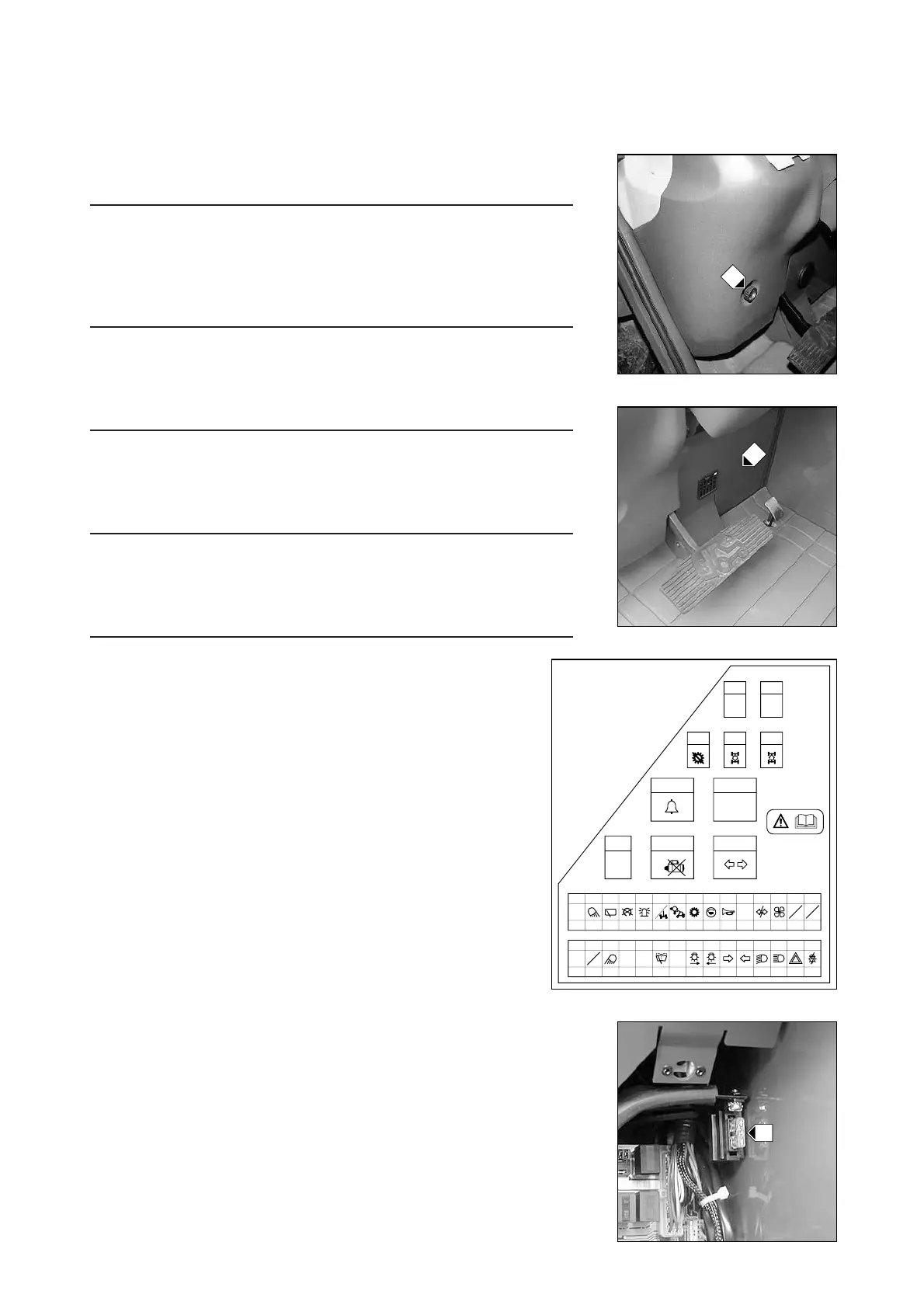

9 - BRAKING OIL TANK AND WINDSCREEN WASHER
ACCESS PANEL
- Loosen screw 1 and lift up the brake fluid and windscreen washer access
panel.
10 - BRAKING OIL TANK
See B - EVERY 50 HOURS SERVICE in SECTION 3 - MAINTENANCE.
11 - WINDSCREEN WASHER TANK
See B - EVERY 50 HOURS SERVICE in SECTION 3 - MAINTENANCE.
12 - FUSE AND RELAY ACCESS PANEL
- Lift up the fuse and relay access panel 1.
13 - FUSE AND RELAY PLATE
A sticker on the inside of the access panel gives a clear display of
the use of the components described below.
K0 - OPTION Air conditioning.
K1 - OPTION. *
- Transmission cut-off relay. **
K2 - Transmission cut-off relay.
K3 - Reverse gear relay.
K4 - Forward gear relay.
K5 - Buzzer.
K6 - OPTION Electrovalve on boom head.
- OPTION Electrical boom provision.
- OPTION Electrovalve on boom head + attachment
hydraulic locking device.
K7 - OPTION Hydraulic movements cut-off.
K8 - Safety system starting switch relay.
K9 - Flashing unit.
NOTE : Replace a used fuse with a new fuse of the same quality and
capacity. Never reuse a repaired fuse.
F1 - (10A MAX.) - Electric controls of hydraulic movements (7,5A). ***
-
OPTION Attachment hydraulic locking device (7,5A). ***
F2 - (15A MAX.) - OPTION Working tail light (10A).
F3 - (10A MAX.) - Rear windscreen wiper (7,5A).
- OPTION Roof windscreen wiper (7,5A).
1
1
OPT.
OPT.
STOP
F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14
F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25
K8
K4
K6
K7
K5
K3
K9
K2
K1K0
25A max.25A max.30A10A max. 7.5A7.5A10A 7.5A 5A 10A 5A 15A 15A max.15A 10A
15A max.10A10A max.15A max.15A max.10A max. 7.5A7.5A 15A7.5A 15A 15A10A 25A7.5A
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.
OPT.OPT.OPT.OPT.
OPT. OPT.
OPT.OPT.
N° 225698
F31
