E10 - FRONT AND REAR WHEELS REDUCERS OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped and the reducers oil still
warm.
Dispose the drain oil in an ecological manner.
- Drain and change each front wheel reducer.

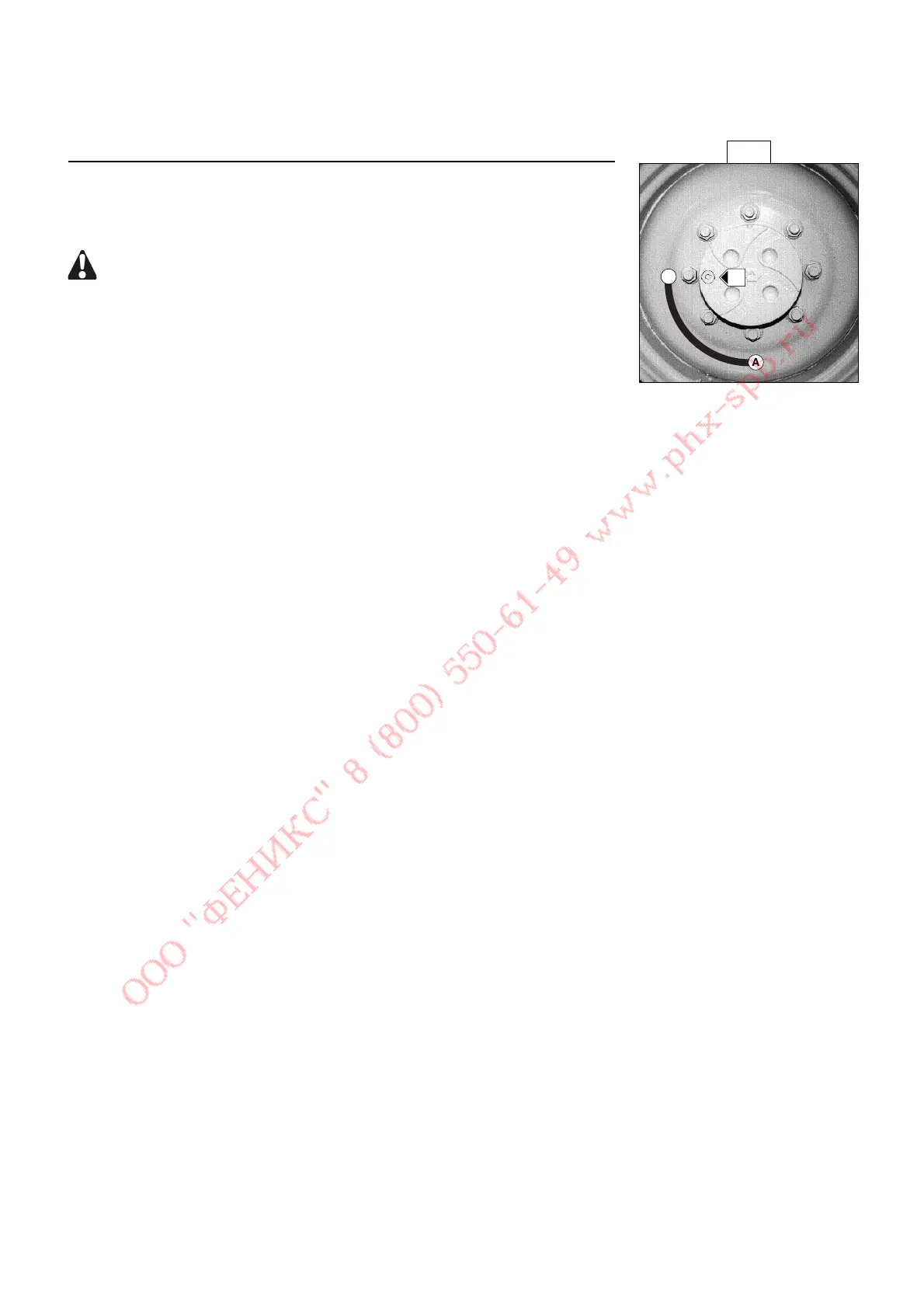

- Place drain plug 1 (Fig. E10) in position A.
- Place a container under the drain plug and unscrew the plug.
- Let the oil drain fully.
- Place the drain port in position B, i.e. in a level port.
- Fill up with oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by level port 1 (Fig. E10).
- The level is correct when the oil level is flush with the edge of the hole.
- Refit and tighten the drain plug 1 (Fig. E10) (Tightening torque 34 to 49 N.m).
- Repeat this operation on each rear wheel reducer.
