Manitou MHT 10225 LT-E3 - Page 48

2-16

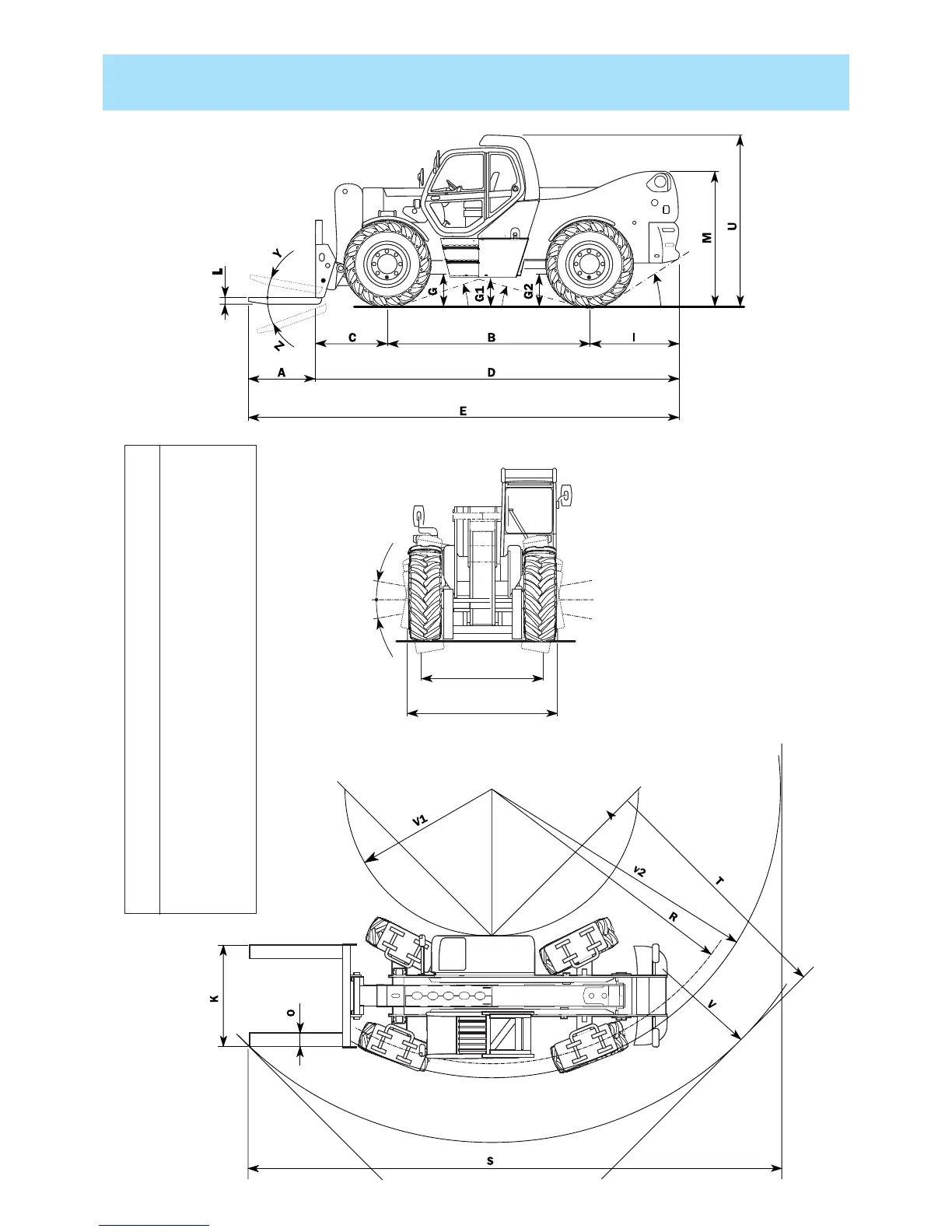

DIMENSIONS AND LOAD CHART
MHT 10180 LT-E3
W
F
10°
10
°
17° 15°
30°
B 3350 mm
C 1310 mm
D 6567 mm
E 8067 mm
F 2000 mm
G 685 mm
I 1607 mm
K 2000 mm
L80 mm
U 2960 mm
V 6810 mm
V1 2870 mm
V2 5685 mm
W 2500 mm
Y 12°
Z 105°
A 1500 mm
G1 445 mm
G2 685 mm
M 2300 mm
O 200 mm
R 5445 mm
S 10345 mm
T 4255 mm
