2 - 27
D - Red air filter clog lamp.
E - Not used.
F - Red alternator charge lamp.
G - Red parking brake lamp.
H - OPTION Green indicator lamp.
I - OPTION Blue main beam lamp.
J - Not used.
A - RED ENGINE OIL PRESSURE LAMP
If the lamp or the buzzer come on when the lift truck is running, stop the engine immediately and look for the cause (See
oil level in engine crankcase).
B - RED WATER TEMPERATURE LAMP
If the lamp or the buzzer come on when the lift truck is running, stop the engine immediately and investigate the cooling
system for the cause of the malfunction.
C - RED HYDROSTATIC TRANSMISSION OIL FILTER CLOG LAMP
This lamp informs the operator about the good working condition of the filter cartridge. If it is clogged, the red lamp and
the buzzer light up (See replacement requirements in the chapter : FILTERS CARTRIDGES AND BELTS in paragraph :
3 - MAINTENANCE).
NOTE : Leave the lift truck run after a cold start, the lamp should go out once the hydraulic oil has reached its operating
temperature.
- RED AIR FILTER CLOG LAMP
The lamp or the buzzer come on when the filter cartridge is clogged. Stop the lift truck and carry out the necessary
repairs (See cleaning and replacement requirements in chapter : FILTERS CARTRIDGES AND BELTS in paragraph : 3
- MAINTENANCE).
F - RED ALTERNATOR CHARGE LAMP
If the lamps B - C - D - F or the buzzer come on, when the lift truck is running, stop the engine immediately and check
the electrical circuit as well as the alternator belt.
G - RED PARKING BRAKE LAMP
This lighted lamp indicates that the parking brake is connected.
H - OPTION GREEN INDICATOR LAMP
It is illuminated when the indicators are on and indicates that they are functioning properly.
I - OPTION BLUE MAIN BEAM LAMP
The lamp is illuminated when main beam lights are on.

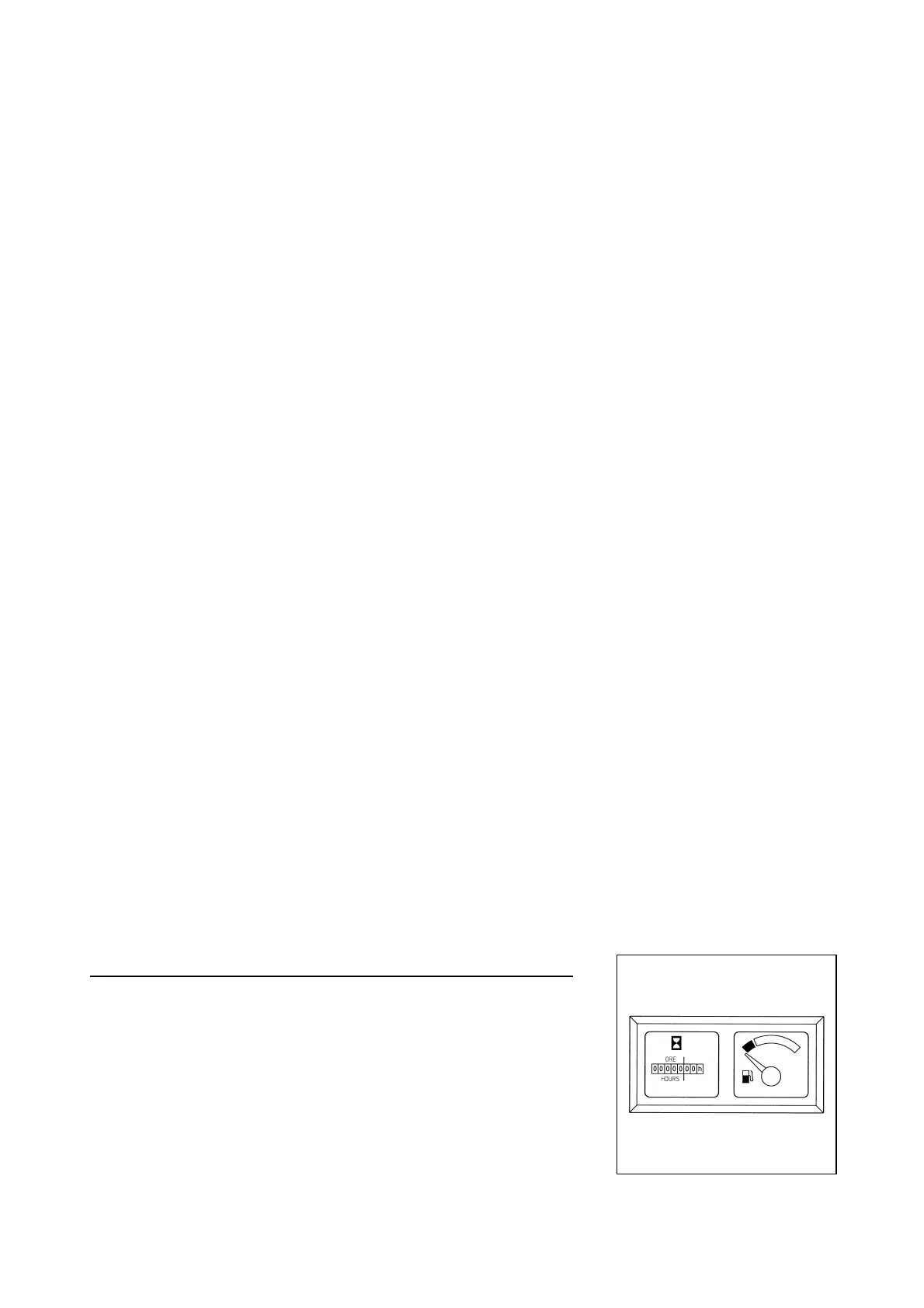

4 - FUEL LEVEL GAUGE AND HOURMETER
A - FUEL LEVEL GAUGE
B - HOURMETER
It shows the number of hours the lift truck has run.
B
A
