2 - 28

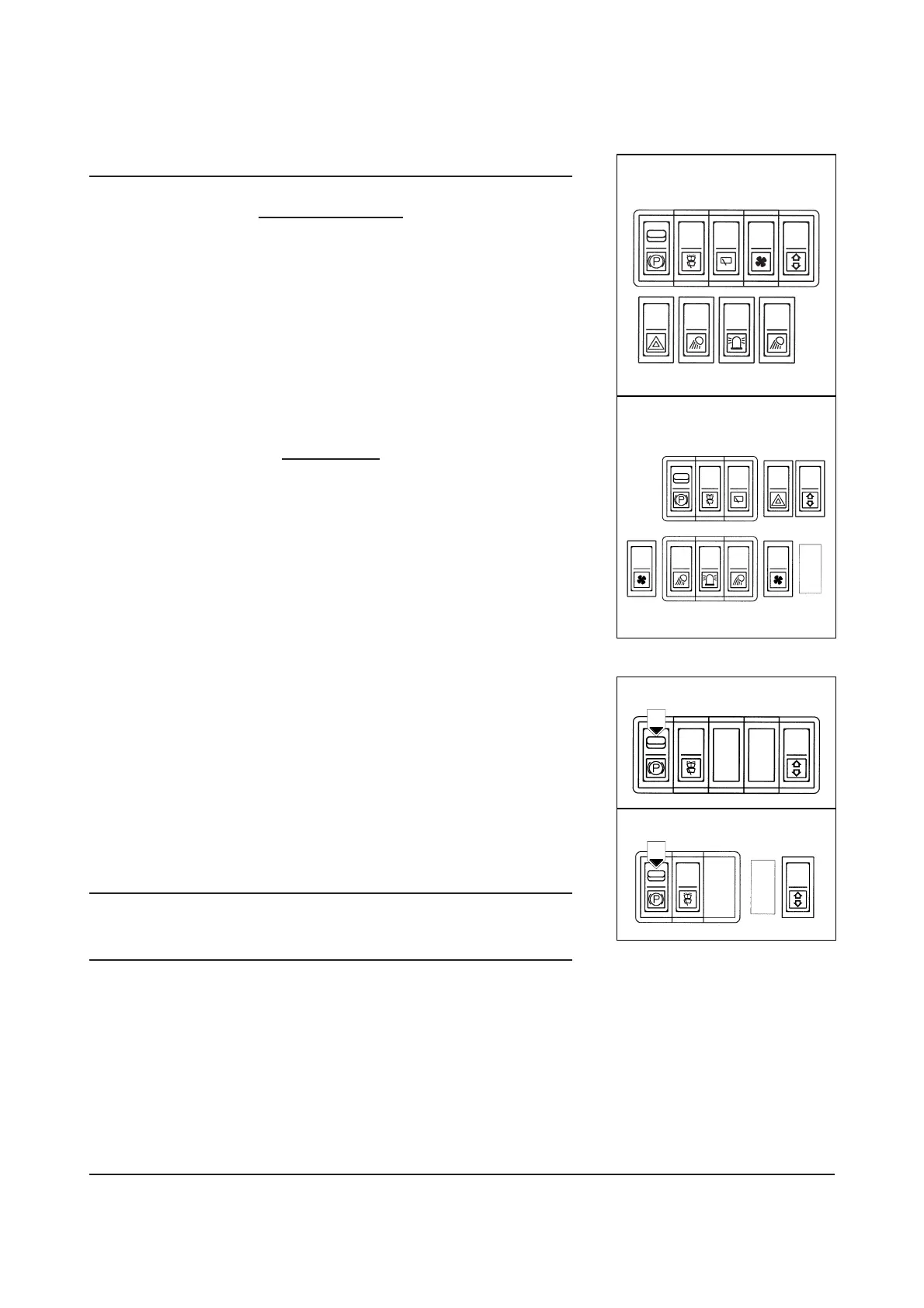

5 - SWITCH PANEL
1
st
and 2
nd
ASSEMBLY
A - Parking brake switch.
B - Front windscreen wiper switch and windscreen washer.
C - OPTION rear windscreen washer switch.
D - OPTION heater fan switch.
E - Overhead guard lifting switch.
F - OPTION warning light switch.
G - OPTION working head light switch.or
OPTION left working head light switch.
H - OPTION flashing alarm light switch.
I - OPTION working tail light switch.or
OPTION left working tail light switch.
2
nd
ASSEMBLY
J - OPTION Cold country heater fan switch.
K - OPTION.
NOTE : For the first assembly, the layout of the switches may be different
depending on the option(s) fitted on the lift truck.
A - PARKING BRAKE SWITCH
To connect the parking brake, lower the button 1 and press the bottom of the
switch. The signal lamp shows it is being used. To disconnect the parking
brake, press the top of the switch.
B - FRONT WINDSCREEN WIPER SWITCH AND WINDSCREEN
WASHER
This two position switch, when set on the "down" position and simultaneously
pressed, allows the windscreen-washer and the windscreen wiper to be operated,
and when set on the "up" position, the windscreen wiper to be operated.
E - OVERHEAD GUARD LIFTING SWITCH
See chapter : 18 OVERHEAD GUARD LIFTING in paragraph : 2 -
DESCRIPTION for operation of the switch.
6- HORN SWITCH
7 - IGNITION SWITCH
The key switch has five positions :
P - Ignition off, parking position.
O - Ignition switched off and engine stopped.
I - Ignition on.
II - Heating.
III - The engine starts, return to position I as soon as the key is released.
8 - KEY-OPERATED BATTERY DISCONNECTING DEVICE
Enables the battery to be rapidly cut off from the electric circuit in the event of a short circuit or a fire.
1
st
ASSEMBLY
B C D E
F G H I
A
1
1
st
ASSEMBLY
1
2
nd
ASSEMBLY
B C
D
EF
G H I J K
A
2
nd
ASSEMBLY
