NOTE : For towing, optional solutions exist, consult your dealer.
Before towing trailers, ensure that the clip is fully engaged in the towing pin.

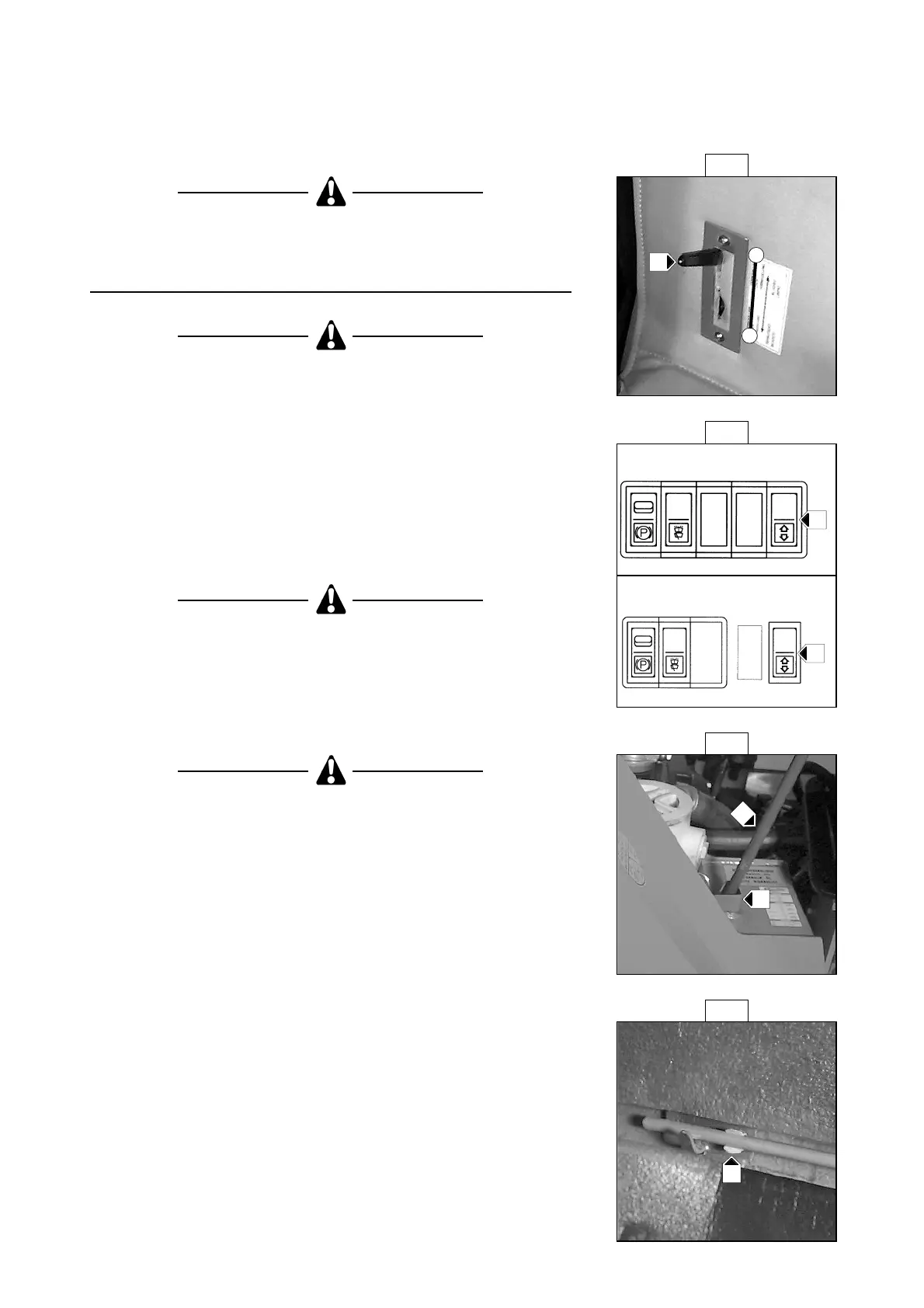

18 - OVERHEAD GUARD LIFTING
Make sure that the mast is tilted forwards to a maximum and the engine is
stopped before lifting the overhead guard.
UNLOCKING THE OVERHEAD GUARD
- Keep the ignition on in the lift truck.
- Unlock the overhead guard by means of the lever 1 (Fig. A) in position A.
LIFTING THE OVERHEAD GUARD
- Press the top of the switch 2 (Fig. B) until complete lifting of the overhead
guard.
- Put the lever 1 back into position B (Fig. A).
- Place the safety prop 3 (Fig. C) onto its stop 4 (Fig. C).
Check that any object left in the operator’s stand cannot impede the operation.
LOWERING THE OVERHEAD GUARD
- Fold the safety prop back into its clip 5 (Fig. D).
- Lower the overhead guard into its initial position by pressing the bottom of
the switch 2 (Fig. B).
- Ensure that the overhead guard is locked.
Check that nothing or nobody can impede the lowering of the overhead
guard.
A
B
1
st
ASSEMBLY
2
nd
ASSEMBLY
2
2
1
B
A
