3-14

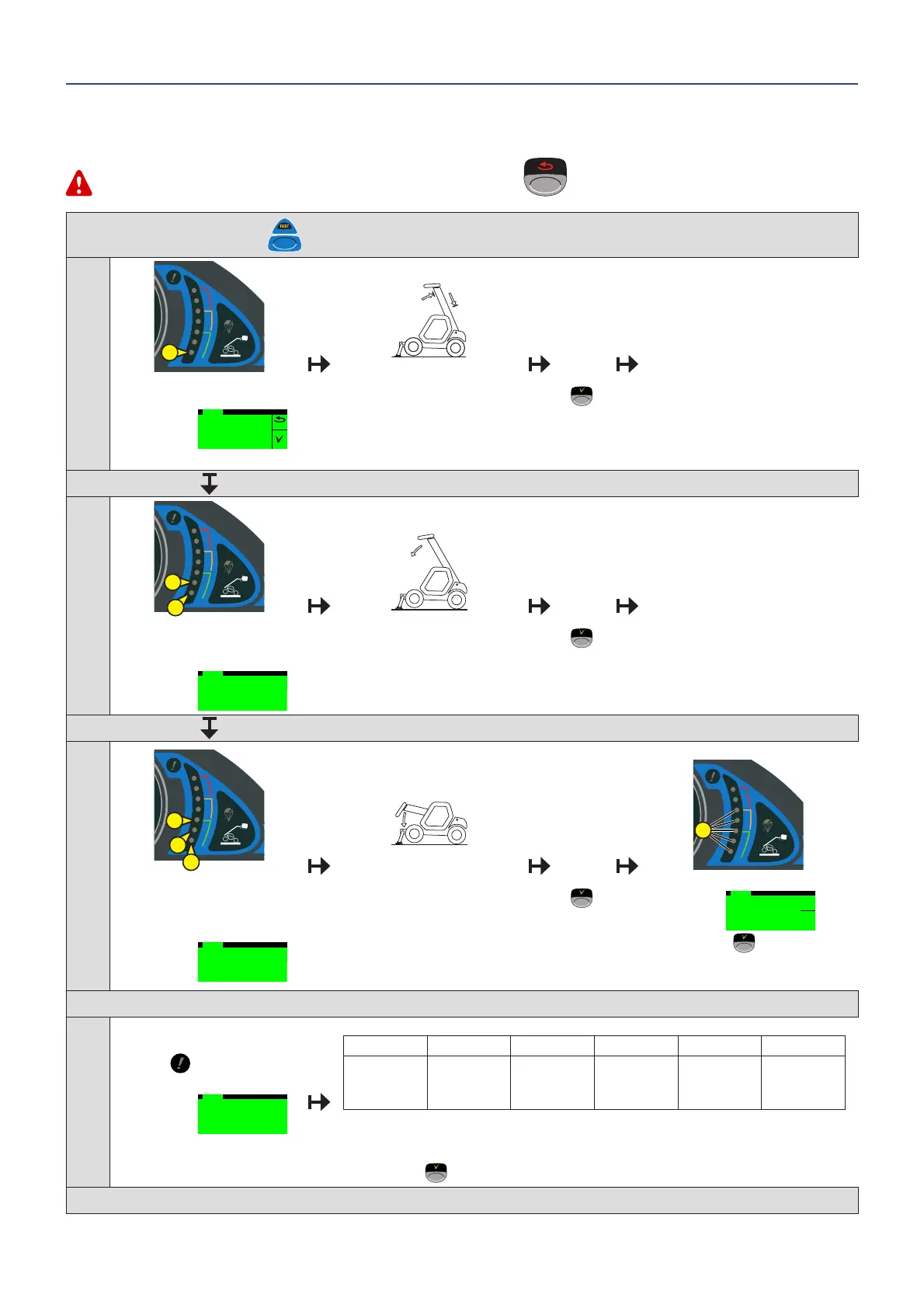

A9 - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
CHECK
- These tests are essential for checking the correct operation and adjustment of the different components of the device.
- Place the lift truck on flat, level ground with the wheels straight.
In case of doubt during the test procedure, exit by pressing the cancel button briefly .
Long press on the test button.
STAGE
1
1
- First green led flashing.
- Test button lit.
- Screen display.
TEST
Retract Telescope, Put
Boom to Maximum Angle
Then Press OK
- An audible beep.
- Place the lift truck with no attachments,
with the left and right-hand stabilizers
on the ground, the front wheels off
the ground and the jib fully retracted
and raised.
Short
press on
the test
button
.
- Go to stage 2.
STAGE
2
2
1
- First green led continuously lit.
- Second green led flashing.
- Test button lit.
- Screen display.
TEST
Lower the Boom
at Full Speed
(1/2)
- Lower the jib with the engine running
at full revs and the hydraulic control
at the maximum setting. Lowering
slows until movement is cut-off.
Short
press on
the test
button
.
- Go to stage 3.
STAGE
3
3
1
2
- First and second green LEDs
continuously lit.
- Third green led flashing.
- Test button lit.
- Screen display.
TEST
Lower the Boom
at Full Speed
(2/2)
- Continue to lower the jib with the
engine running at full revs and the
hydraulic control at the maximum
setting. Lowering slows until
movement is next cut-off.
Short
press on
the test
button
.
TEST OK
- First 5 LEDs lit.
- Screen display.
TEST
Security Test
Procedure OK
- Press the button To exit test mode.
TEST NOT OK
- See stage 4.
STAGE
4
- The fault
warning light remains
flashing on until the error is repaired.
- Screen display.
TEST
Security Test
Procedure NOK
111110
- The combination is the result of tests carried out in the following order:
1st digit 2nd digit 3rd digit 4th digit 5th digit 6th digit
Telescope
retracted
sensor fault.
Right or left
stabilizer
sensor fault.
Jib angle
sensor fault.
Strain gauge
fault.
Safety valve
fault.
Governing
fault.
1 = Test OK
0 = Fault detected
- Consult your dealer and provide the combination.
- Press the button
to exit test mode.
