2 - 33
24 - HEATING VENTS
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
These heating vents enable the air to be directed to the interior of the cabin and onto the side windows.
25 - DOOR LOCK
STANDARD MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
OPTION MT 523 Série B-E2
MT 523 Série MONO-ULTRA B-E2
MT 620 Série B-E2
Two keys are provided with the lift truck to enable the cab to be locked.
26 - LOCKING HANDLE FOR UPPER HALF DOOR
STANDARD MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
OPTION MT 523 Série B-E2
MT 523 MONO-ULTRA Série B-E2
MT 620 Série B-E2
27 - RELEASING BUTTON FOR UPPER HALF DOOR
STANDARD MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
OPTION MT 523 Série B-E2
MT 523 MONO-ULTRA Série B-E2
MT 620 Série B-E2
28 - HANDLE FOR REAR WINDOW OPENING
EMERGENCY EXIT
Use the rear window as an emergency exit, if it is impossible to leave the cab by the door.
29 - DOCUMENT HOLDER
Ensure that the operator's manual is in its place in the document holder.
NOTE: There is an OPTIONAL document holder net.

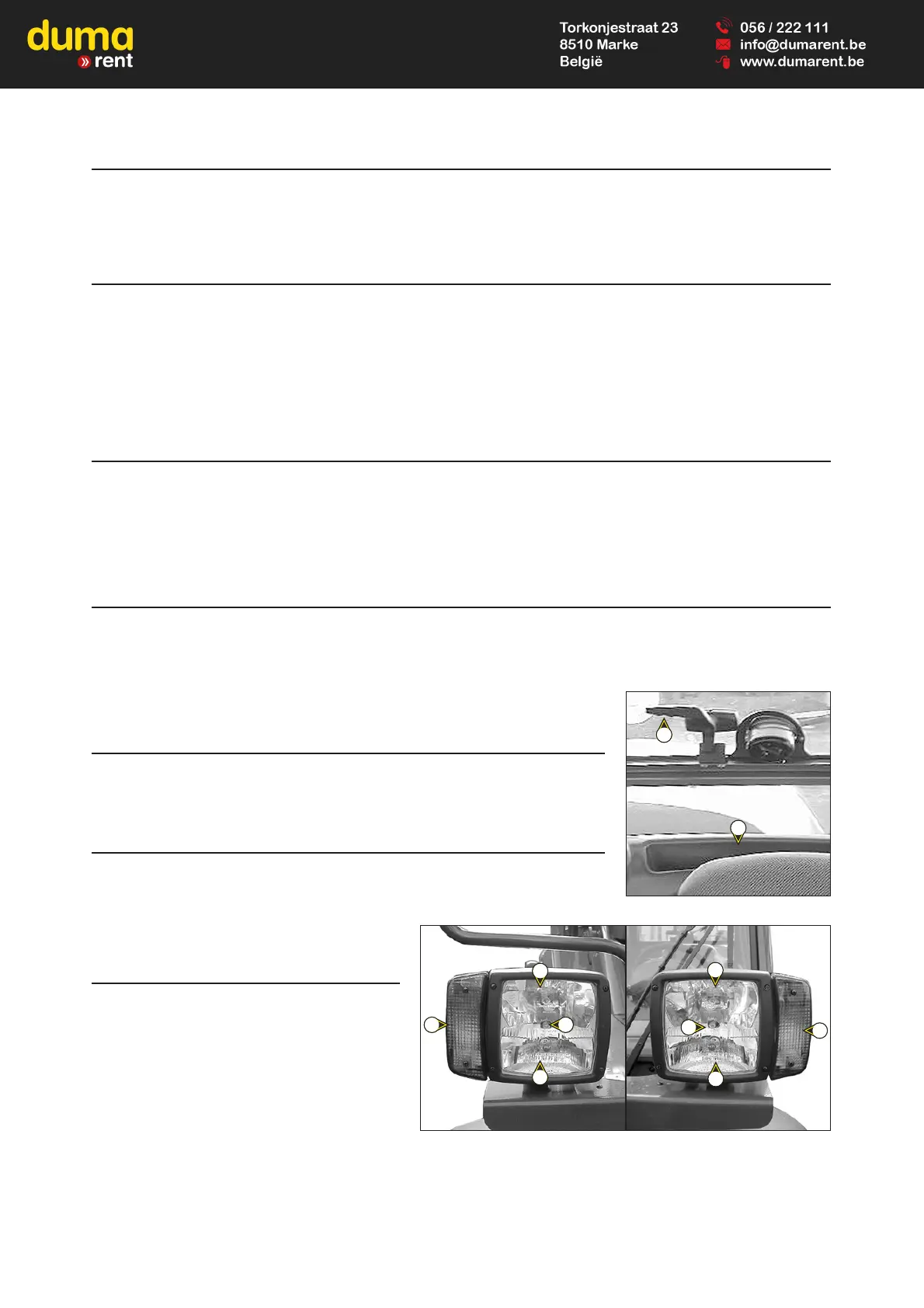

30 - FRONT LIGHTS
A - Left front indicator.
B - Left front dipped headlight.
C - Left front main beam.
D - Left front sidelight.
E - Right front indicator.
F - Right front dipped headlight.
G - Right front main beam.
H - Right front sidelight.
E
A
C
G
B
F
D
H
28
29
