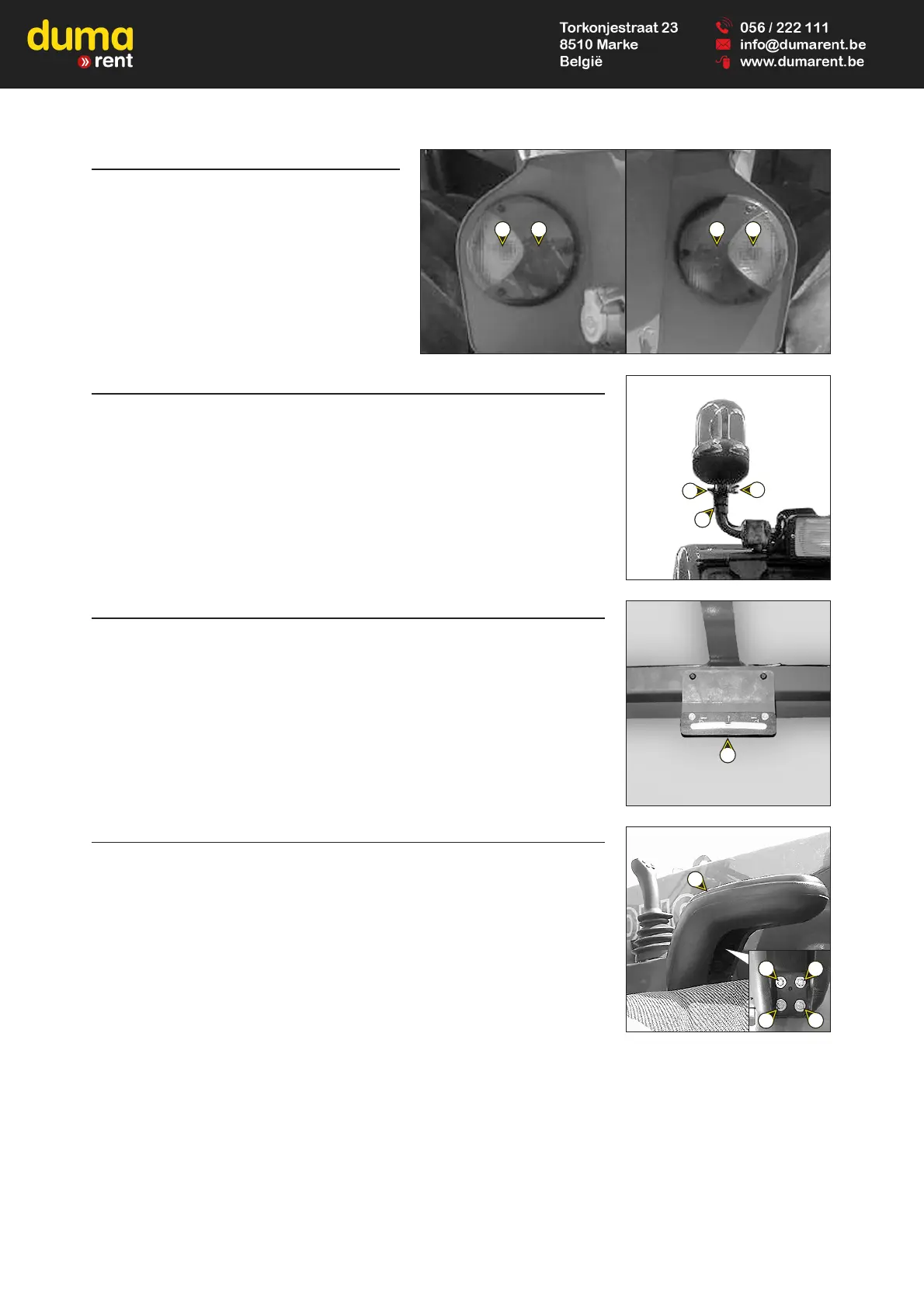

31 - REAR LIGHTS
A - Left rear indicator.
B - Left rear stoplight.
Left tail light.
C - Right tail light.
Right rear stoplight.
D - Right rear indicator.
32 - REVOLVING LIGHT
The revolving light pivots for space-saving on the lift truck and can be detached to prevent
theft.
- Loosen nut 1 and remove the revolving light.
- Protect mounting 2 with cap 3.
33 - SPIRIT LEVEL
Enables the operator to check that the lift truck is in the horizontal position.
34 - ARM-REST
MT 523 Série MONO-ULTRA B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
The arm-rest can be adjusted in height.
- Untighten screws 1 and adjusting arm-rest in the height required.
- Retighten screws 1.
34
33
1
1
1
1
3
1
2
A B C D
