3 - 22

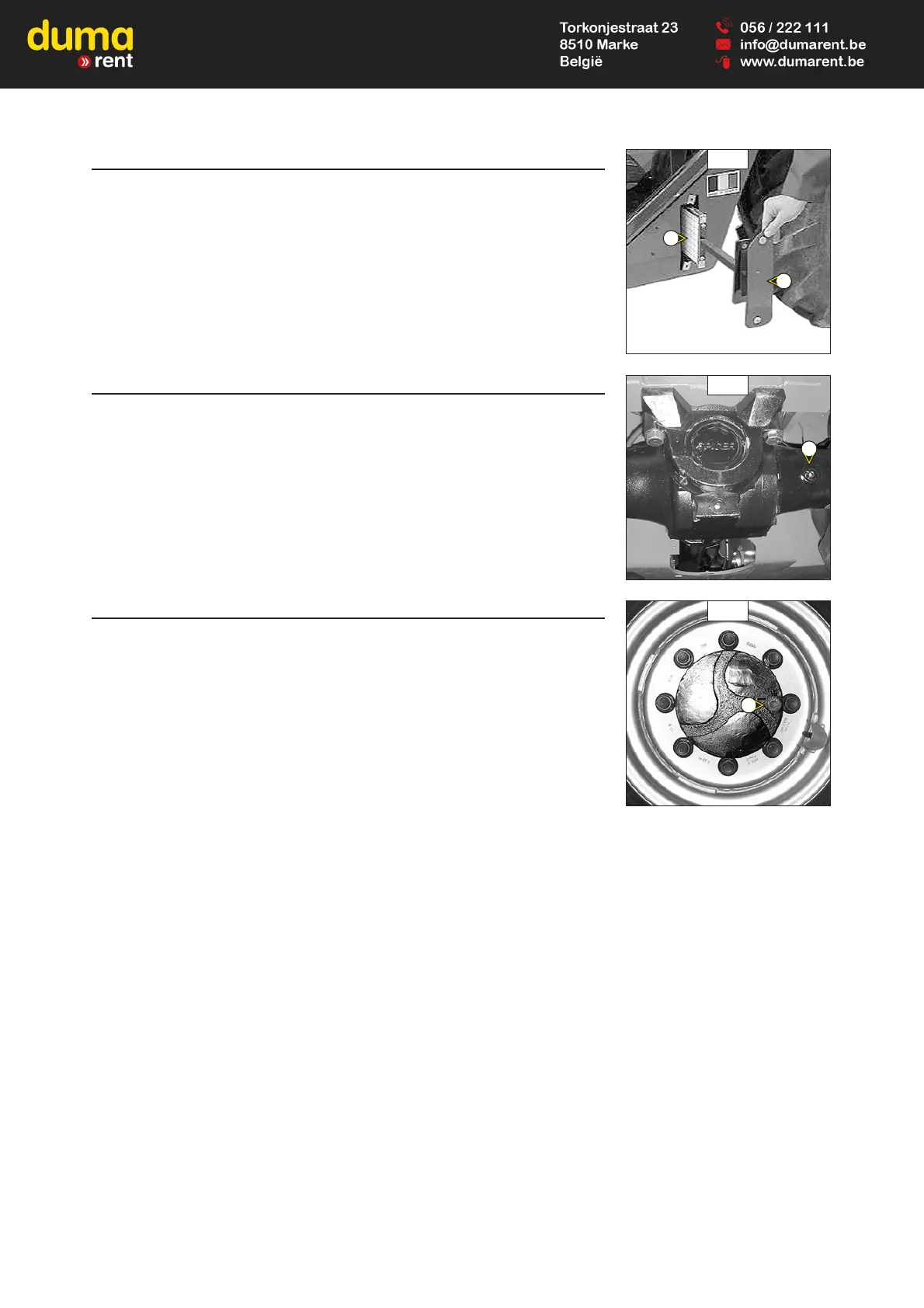

C5 - CAB VENTILATION FILTER (OPTION AIR CONDITIONING)
CHANGE
MLT 523 Turbo Série B-E2
MLT 523 Turbo MONO-ULTRA Série B-E2
- Lift up protective casing 1 (fig. C5).
- Lift out cabin ventilation filter 2 (fig. C5) and fit new replacement filter (see: 3 -
MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Refit the protective casing.
C6 - FRONT AND REAR AXLE DIFFERENTIAL OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Remove level plug 1 (fig. C6). The oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same filler
port.
- Replace and tighten the level plug 1 (fig. C6) (tightening torque 34 to 49 N.m).
- Repeat this operation for the rear axle differential.
C7 - FRONT AND REAR WHEELS REDUCERS OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped.
- Check the level on each front wheel reducer.
- Place level plug 1 (fig. C7) in the horizontal position.
- Remove the level plug ; the oil should be flush with the edge of the hole.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Replace and tighten the level plug 1 (fig. C7) (tightening torque 34 to 49 N.m).
- Repeat the same operation on each rear wheel reducer.
C5
1
2
C6
C7
1
1
