3 - 21

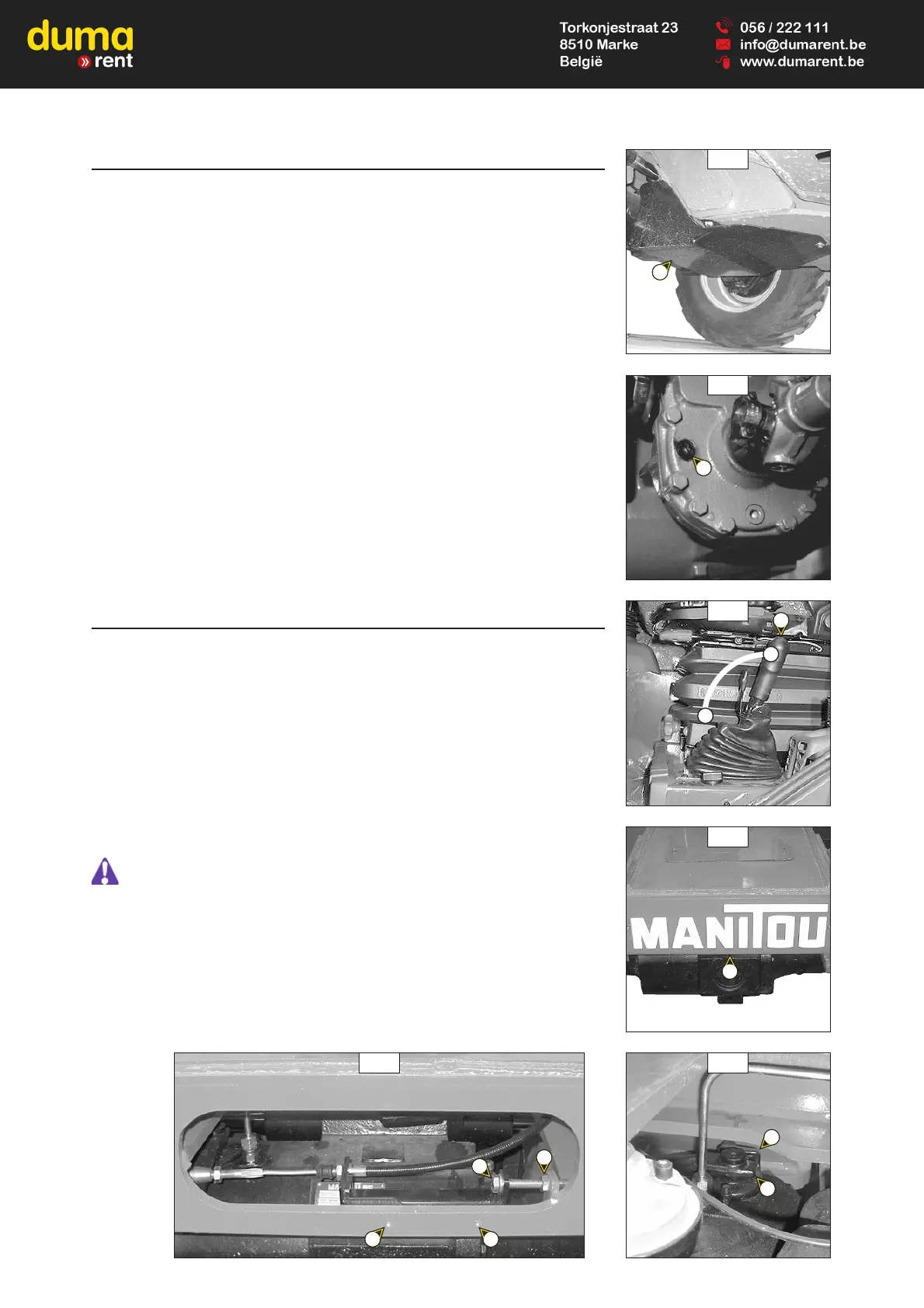

C3 - LEVEL OF THE TRANSFER BOX OIL
CHECK
Place the lift truck on level ground with the engine stopped.
- Remove access panel 1 (fig. C3/1).
- Remove level plug 2 (fig. C3/2). The oil should be flush with the edge of the filler port.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same filler
port.
- Set back and tighten the level plug 3 (fig. C3/2) (tightening torque 34 to 49 N.m).
C4 - PARKING BRAKE
CHECK - ADJUST
Place the lift truck on a slope less than 15 % with the rated load in the transport position.
- Check the tightening adjustment by locking the parking brake in position A (fig. C4/1).
- The adjustment is correct when the lift truck is held stationary on a slope.
- Carry out adjustments if necessary.
Adjustment of the parking brake cable on the front axle
- Press and release the brake pedal, then release the parking brake, putting it in position
B (fig. C4/1).
- Remove the cover plate 1 (fig. C4/2).
- Unscrew nut 2 and screws 3 (fig. C4/3).
- Adjust the cable by untightening screw 4 (fig. C4/3), until a clearance of 1.5 mm between
cams 5 (fig. C4/4) and stops 6 (fig. C4/4) is obtained.
The adjustment of the stops performed by the manufacturer must not be modified under any
circumstances.
ADJUSTMENT OF THE PARKING BRAKE
- Leave the parking brake in position B (fig. C4/1).
- Progressively tighten the end piece of the lever 7 (fig. C4/1) and recheck braking.
- Repeat the operation until the correct braking adjustment is obtained.
C3/2
2
C3/1
1
C4/1
7
A
B
C4/3 C4/4
2
3
3
4
5
6
C4/2
1
