D - EVERY 500 HOURS SERVICE
Carry out the operations described previously as well as the following operations.
D1 - I.C. ENGINE OIL
DRAIN
D2 - I.C. ENGINE OIL FILTER
CHANGE
Place the lift truck on level ground, let the I.C. engine run at idle for a few minutes, then stop the
I.C. engine.
DRAINING THE OIL
- Open the I.C. engine bonnet.

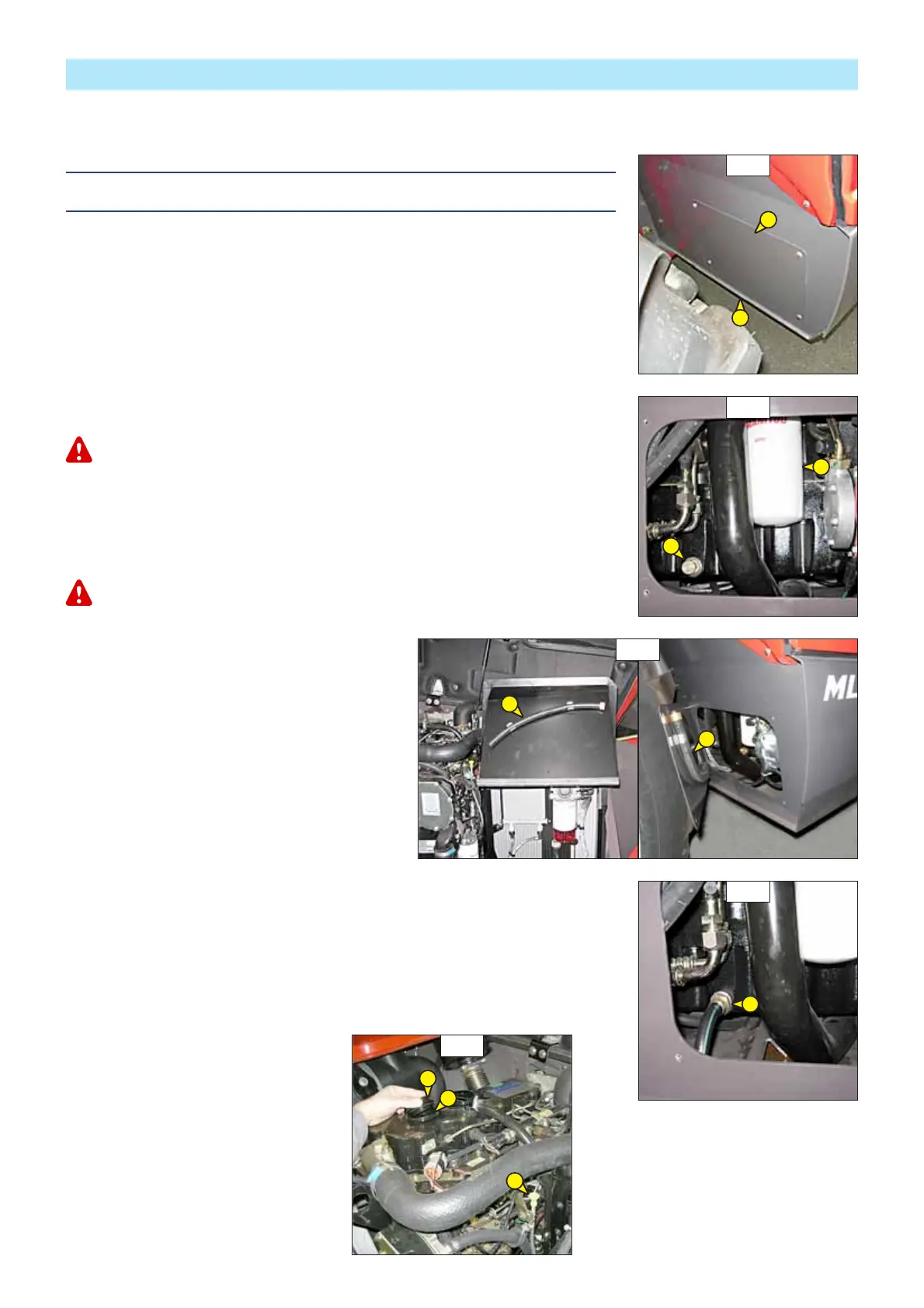

- Remove access panel 1 (fig. D1/1).
- Place a container under drain plug 2 (fig. D1/1) and unscrew the plug 3 (fig. D1/2).
- Take drain hose 4 (fig. D1/3). (according to model)
- Place the end of the drain hose in the container 2 (fig. D1/1) and screw fully the union on draining
port 5 (fig. D1/4).
- Remove filler cap 6 (fig. D1/5) in order to ensure that the oil is drained properly.
Dispose of the drain oil in an ecological manner.
REPLACEMENT OF THE FILTER
- Remove I.C. engine oil filter 7 (fig. D1/2); discard the filter and the filter seal.
- Clean the filter bracket with a clean, lint-free cloth.
- Lightly grease the new oil filter seal and refit the oil filter (see: 3 - MAINTENANCE: FILTERS
CARTRIDGES AND BELTS) on the filter bracket.
Tighten the oil filter by hand pressure only and lock the filter in place by a quarter turn.
FILLING UP THE OIL
- Loosen, clean and put back in place the drain hose 4
(fig. D1/3). (according to model)
- Refit and tighten drain plug 3 (fig. D1/2).
- Refit access panel 1 (fig. D1/1).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND
FUEL) through filler port 8 (fig. D1/5).
- Wait a few minutes to allow the oil to flow into the
sump.
- Start the I.C. engine and let it run for a few minutes.
- Check for possible leaks at the drain plug and the oil
filter.
- Stop the I.C. engine, wait a few minutes and check the
level between the two notches on dipstick 9 (fig. D1/5).
- Top up the level if necessary.
D1/2
7
3
D1/4
5
D1/1
1
2
4
D1/3
4
D1/5
6
9
8
