2-26

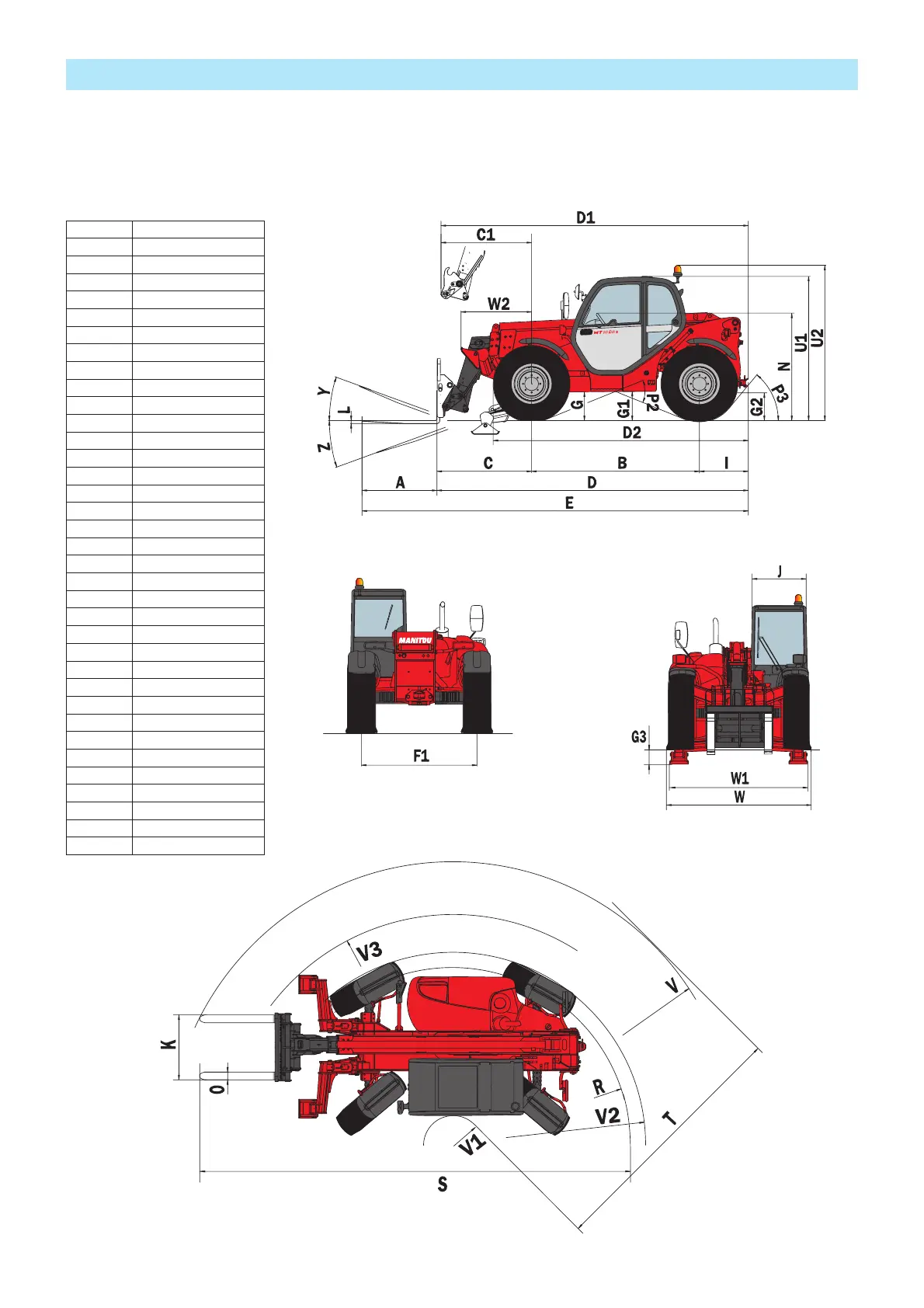

DIMENSIONS AND LOAD CHART
MT 1030 S Turbo Série 5-E3
A
(mm)
1200
B
(mm)
2690
C
(mm)
1513
C1
(mm)
1602
D
(mm)
4992
D1
(mm)
5081
D2
(mm)
4050
E
(mm)
6192
F
(mm)
1846
F1
(mm)
1846
G
(mm)
455
G1
(mm)
440
G2
(mm)
440
G3
(mm)
220
I
(mm)
789
J
(mm)
865
K
(mm)
1040
L
(mm)
45
N
(mm)
1690
O
(mm)
125
P2
(°)
44
P3
(°)
53
R
(mm)
3545
S
(mm)
7810
T
(mm)
3640
U1
(mm)
2300
U2
(mm)
2550
V
(mm)
4950
V1
(mm)
1310
V2
(mm)
3752
V3
(mm)
4200
W
(mm)
2260
W1
(mm)
2210
W2
(mm)
1132
Y
(°)
11,9
Z
(°)
113,7
647083 EN (21/06/2011)
