Part Number: 000015202 Rev 00 12/17 11
Section 2 Installation
WATER SUPPLY & DRAIN LINE SIZING CONNECTIONS
,
Caution
Plumbing must conform to state and local codes.
Location Water Temperature Water Pressure Ice Machine Fitting Tubing Size Up to Ice Machine Fitting
Ice Making Water
Inlet
45°F (6°C) Min.
90°F (32°C) Max.
20 psi (137.9 kPa) Min.
80 psi (551.5 kPa) Max.
3/8" Female Pipe Thread
3/8" (9.5 mm)
minimum inside diameter
Ice Machine Drain --- --- 1/2" Female Pipe Thread
3/4" (19 mm)
minimum inside diameter
DRAIN
ICE MAKING
WATER INLET
TUBING 3/8" MIN.
I.D. (9.5 mm)
DRAIN CONNECTION IS
INTERCHANGEABLE
DRAIN IS PREINSTALLED TO RUN OUT
THE BACK
MOVE DRAIN PLUG TO RUN DRAIN OUT
THE BOTTOM IF DESIRED

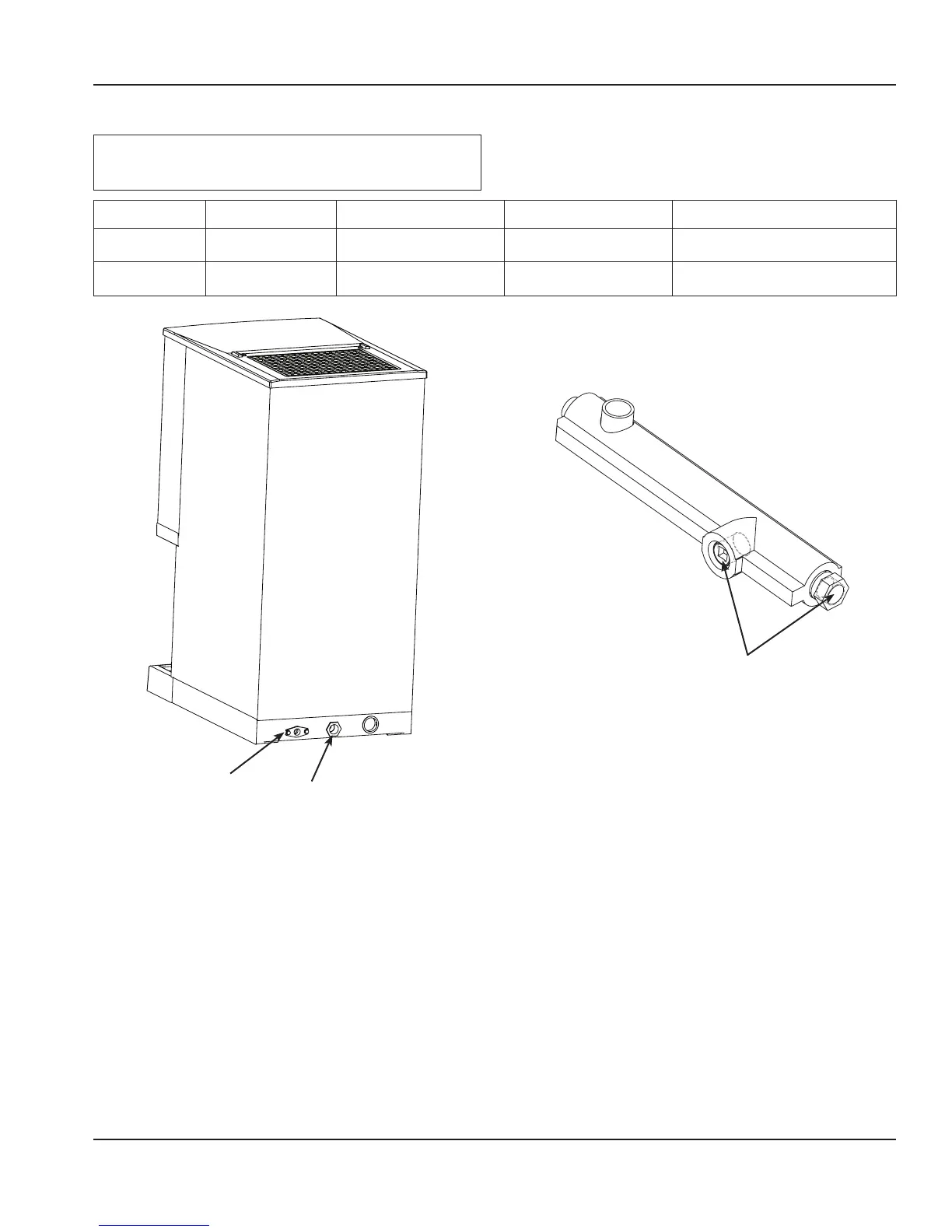

Typical Water Supply Drain Installation
To Next Page
