10 Part Number 000009036 Rev03 6/18
Installation Section 2
HEIGHT REQUIREMENT
Either the base or the top of the iAuCS® accessory must
be within 2" (5 cm) of the base of the ice machine. Do not
mount the iAuCS® unit too high or too low.
Notice
The cleaner or sanitizer may siphon (or dispense
improperly) into the ice machine water trough if the
iAuCS® unit is mounted too high or too low.
DISTANCE REQUIREMENT
The iAuCS® unit must be mounted within 9 feet (2.7 m)
of the ice machine to accommodate the low voltage
communication wire and tubing. The tubing may be
shortened to accommodate a run of less than 9 feet (2.7 m).
Notice
Do not extend the length of the 9-foot (2.7 m) low voltage
communication wire or tubing. The correct amount of
solution will not dispense.

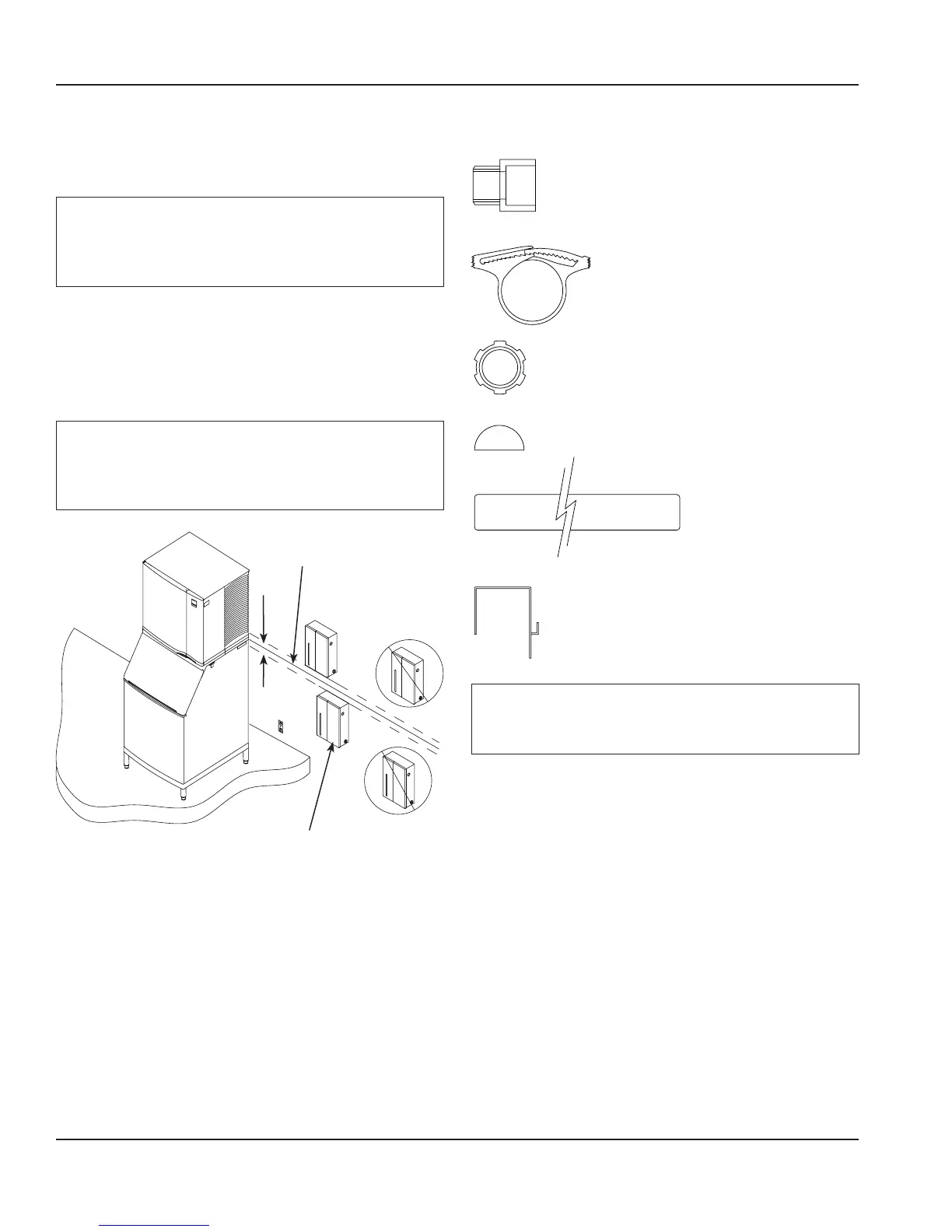

Box Base or Box Top Must
Be Within 2"
(5 cm) of Ice Machine
Base
2"
(5 cm)
Base of Ice
Machine
MOUNTING
Parts
Foam Tape
Bumper
1/2" PVC Conduit
Fitting
Hose Clamps
Locknut
Bracket
Notice
The iAuCS® unit may be mounted to the bin or dispenser
only when permitted by local electrical codes.
Mounting to Bin or Dispenser
NOTE: The ice machine’s serviceability may be reduced when
the iAuCS® unit is mounted to the bin or dispenser. Wall
mounting is recommended.
1. Set the mounting bracket over the bin top rail at desired
location.
2. Remove the backing from the foam adhesive tape. Apply
tape to mounting bracket, and along the entire bin rail.
3. Align the iAuCS® key slots with the mounting bracket
tabs. Verify the tabs are at the top of the key slots and
that the iAuCS® unit is level.
To Next Page
