Part Number 000009036 Rev03 6/18 11
Section 2 Installation

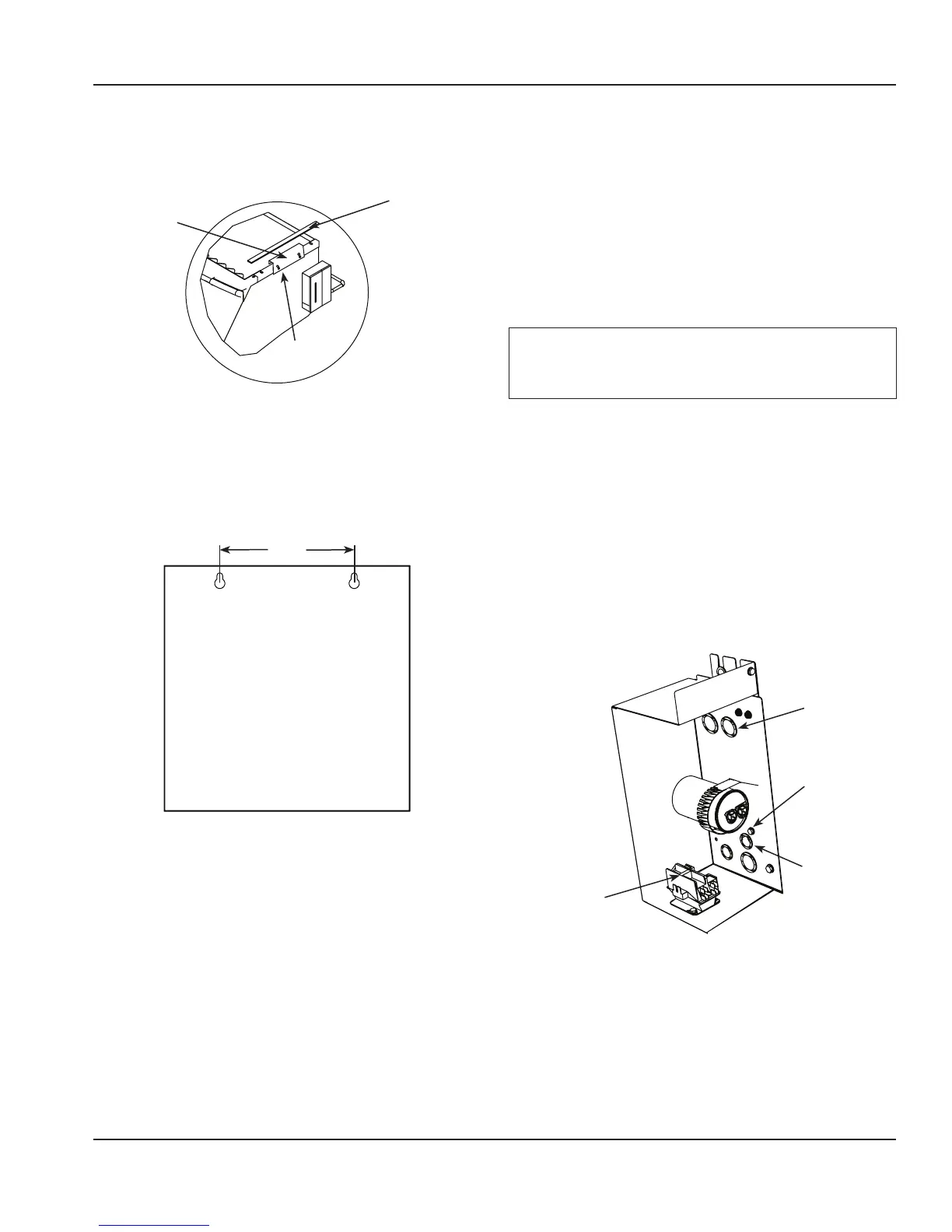

4. Remove the backing from the adhesive bumpers. Attach
bumpers to the mounting bracket directly above the
iAuCS® control box. This eliminates upward movement
and stops the tabs from disengaging the key slots.
Bumper
Mounting
Bracket
Gasket
Mounting to Ice Machine
Mounting to Wall
The iAuCS® is mounted to the wall using the two key slots in
the back wall of the accessory. Screw fasteners (not supplied)
must hold the entire weight of the iAuCS® (approximately 10
lbs. [4.5 kg]).
6.56"
(16.6 cm)
Key Slot Dimensions
CONNECTION TO ICE MACHINE
Electrical Connections
1. Check electrical code for your area.
• When local code allows, the included wire and strain
relief can be used for line voltage wiring. Remove
knockout from ice machine and install strain relief
and wire.
• When conduit is required, remove strain relief and
ice machine electrical knockout. Install conduit as
required by your electrical code.
n
Warning
Disconnect the electrical power supply to the ice machine
at the electrical disconnect before proceeding.
• Connections on ice machines vary. Refer to the
diagram for the ice machine you are working on.
2. Remove the front, top, and right side panels from the ice
machine.
3. Route line voltage wires through control box line voltage
Heyco fitting. Connect line voltage wires to incoming
power supply of contactor and ground screw.
NOTE: On QuietQube Ice Machines the power connection
is made at the incoming power supply (L1 and L2). Cut-off
yellow terminal (L2) and purple terminal (L1) on iAuCS®
harness. Strip insulation back 1/2" and connect.
Connect to incoming
power supply of
contactor observing
proper polarity for
115V
Low Voltage
Heyco
Fittings
Connect
ground wire
to ground
screw
Line Voltage
Heyco
Fittings
To Next Page
