Manitowoc LB User Manual

Part Number: 000016538 Rev 03 04/23 3
Model Numbers
This manual covers the following models
Single Door Upright Ice Storage Bins
30 inch wide 48 inch wide 60 inch wide
LB730 LB1448
LB1460
LB1760
Before You Begin
After uncrating and removing all packing material, inspect
the equipment for concealed shipping damage. If damage is
found, notify the shipper immediately.
n
Warning
Top is NOT fastened to bin. Be aware of this to avoid
personal injury.
n
Warning
Do not operate equipment that has been misused, abused,
neglected, damaged, or altered/modified from that of
original manufactured specifications. This appliance is
not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision concerning use of the appliance by a
person responsible for their safety. Do not allow children
to play with, clean or maintain this appliance without
proper supervision.
n
Warning
All Manitowoc ice machines require the ice storage bin to
incorporate an ice deflector. Refer to the sales price list to
determine the correct adapter for your ice machine and
bin installation.
,
Caution
30" large capacity ice storage bins must be attached to
the wall.
,
Caution
Avoid excessive tightening force when connecting to the
bin drain fitting. Over tightening may cause damage.
Do not apply excessive heat if any sweating of fittings
is necessary. Heat conduction through metal may melt
threads in plastic drain fitting.

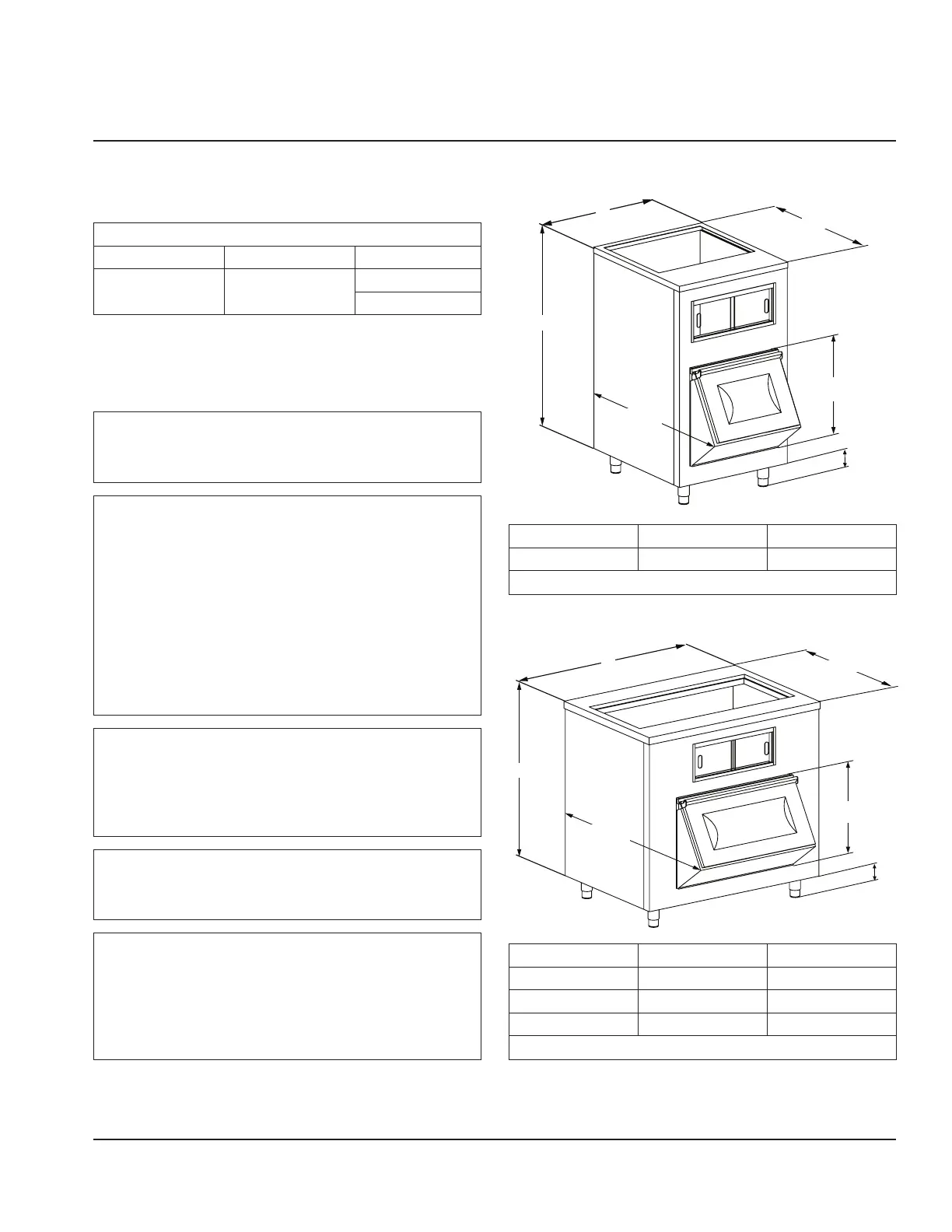

30 Inch Bin Dimensions
Bin Model Dimension A Dimension B
LB730 30 in. (76 cm) 58 in. (147 cm)
The bin drain is exactly in the center of the bin.
48 & 60 Inch Bin Dimensions
Bin Model Dimension A Dimension B
LB1448 48 in. (122 cm) 55 in. (140 cm)
LB1460 60 in. (152 cm) 55 in. (140 cm)
LB1760 60 in. (152 cm) 58 in. (147 cm)
The bin drain is exactly in the center of the bin.
