Manitowoc National Crane NBT45 User Manual

National Crane Published 4-23-2018 Control # 239-11 3-5
3
NBT40 SERIES OPERATOR MANUAL OPERATING CONTROLS & PROCEDURES

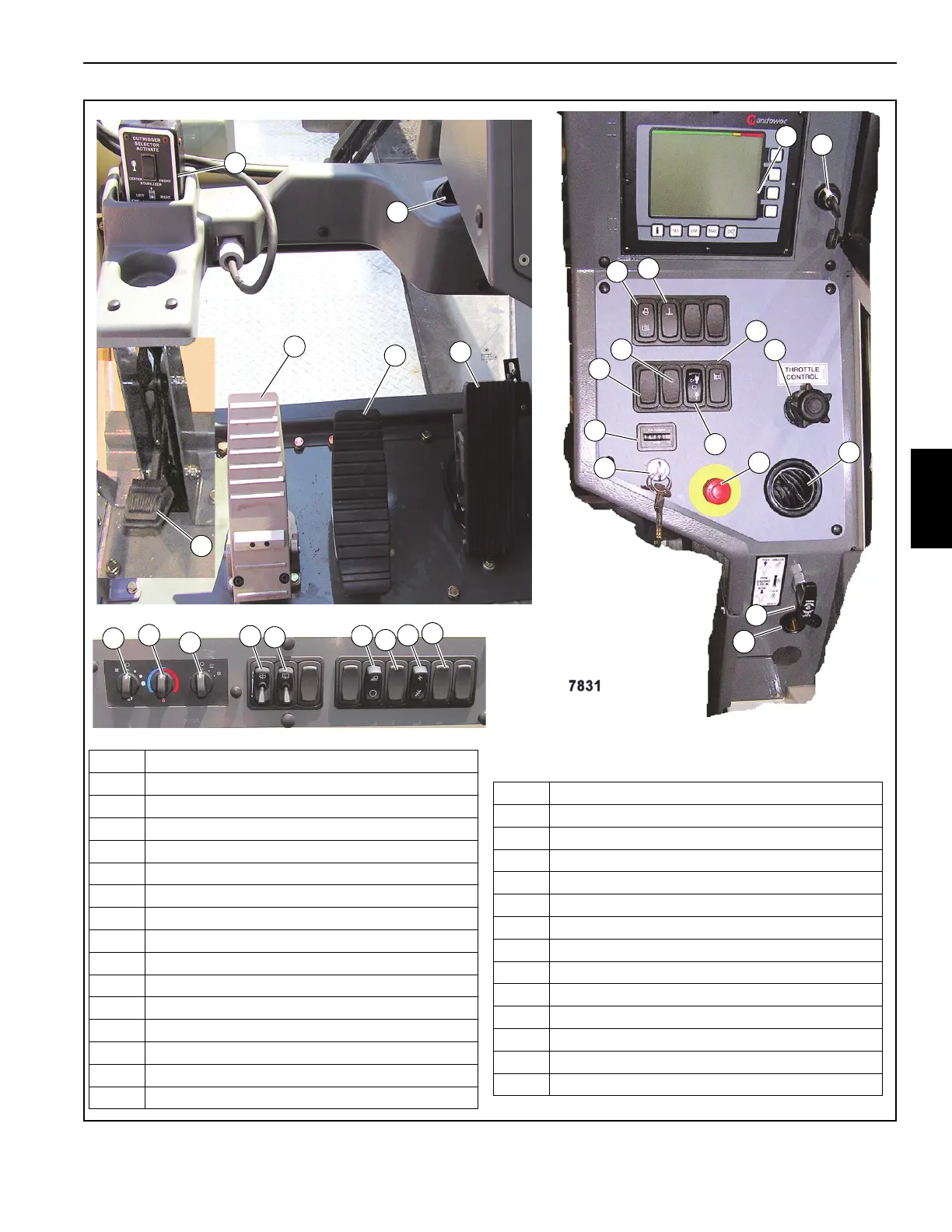

FIGURE 3-3
Item Description
1 Handheld Outrigger Control
2 Swing Brake Pedal
3 Boom Telescope Pedal (Optional)
4 Foot Throttle Pedal
5 Display Panel
6 RCL Bypass Switch (Momentary)
7 Hydraulic Oil Indicator/Engine Warning
8 Swing Brake Indicator
9 Main Hoist Minimum Wrap Indicator
10 Main Hoist Speed Switch
11 Hand Throttle Control
12 Emergency Stop Switch
13 Crane Ignition Switch
14 Hourmeter
15 Auxiliary Hoist Switch (Optional)
16 Auxiliary Hoist Minimum Wrap Indicator
17 AC/Heater Vent
18 Receptacle (12V)
19 Remote Power Switch (Optional)
20 Crane Power Switch
21 Boom Worklight Switch (Optional)
22 Cab Worklight Switch
23 Skylight Wiper Switch
24 Windshield Wiper Switch
25 Heater/Air Conditioner Function Switch
26 Heater/Air Temperature Control
27 Heater/Air Fan Speed
28 360° Swinglock Pedal
Item Description
1
3
4
5
6
7
8
9
10
11
12
13
14
18
17
20
22
23
24
25
26
15
17
21
19
27
7462-6
7462-3
2
16
40
28
