RATED CAPACITY LIMITER NBT50 OPERATOR MANUAL
7-6 Published 03-23-2018 Control # 243-14
RCL SETUP
The RCL setup is where the lifting configuration of the crane
is entered into the system. The RCL setup is required before
the crane can be operated.
When the crane ignition switch is turned on the RCL powers
up and displays the National Crane logo screen for a few
seconds followed by Screen 1 in the RCL setup sequence.

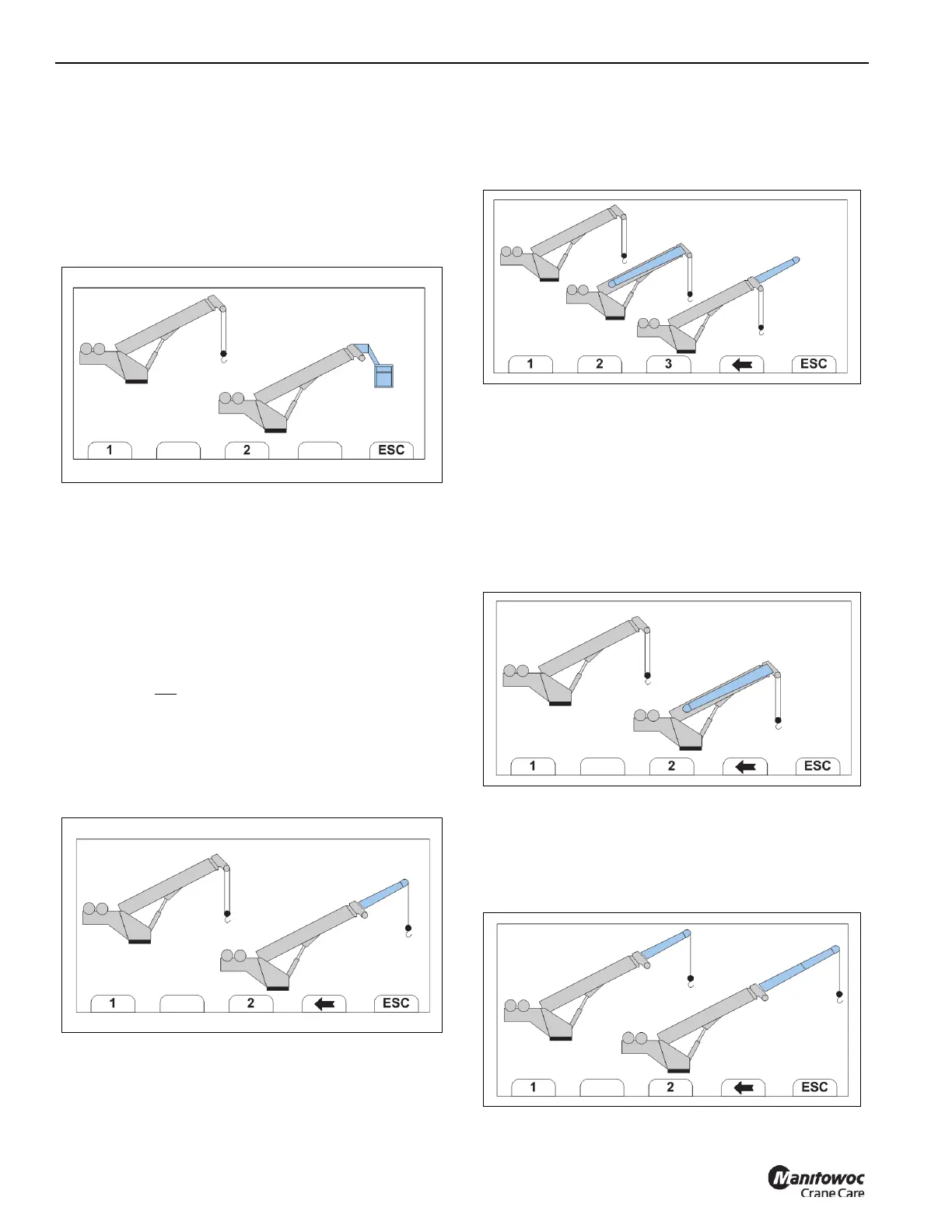

Screen 1
Is a basket attached to the boom or the tip of the jib nose?
Select 1 or 2.
- The ESC function here takes you to the Main Menu.
- If a basket is selected and the machine is shut
down, the RCL will restart without having to
complete the setup sequence. This is to enable
basket with radio remote operation.
Boom Configuration
If the crane is not equipped with a jib the following set up
screens will not appear. The system will detect that no jib has
been installed on the crane and by-pass these screens.
Select the RCL setup icon on the main menu to begin RCL
setup (Figure 7-2).
Screen 2
Is a jib attached to the boom nose? Select 1 or 2.
NOTE: Screens 3-2, 3-3 and 4-2 do not apply to cranes
equipped with a fixed or non-telescoping jib
extension and should not appear as a screen
selection. The RCL control system will by-pass
these screens and move to Screen 4-1
Screen 3-1A
Selected 1 on Screen 2. Now select 1, 2 or 3 on Screen 3-
1A;
- 1 - No jib
- 2 - Jib stowed on the side of the boom
- 3 - Jib deployed but not reeved
- Screen 3-1A will only appear if the crane is not
equipped with a personnel basket.
Screen 3-1B
Selected 1 on Screen 2. Now select 1 or 2 on Screen 3-1B; is
the jib stowed on the side of the boom?
- Screen 3-1B will only appear if the crane is
equipped with a personnel basket.
Screen 3-2
To Next Page
