NATIONAL CRANE Published 09-06-2019 Control # 691-01 4-17
NBT60L OPERATOR MANUAL SET-UP
4
5-Part Line Reeving
6-Part Line Reeving

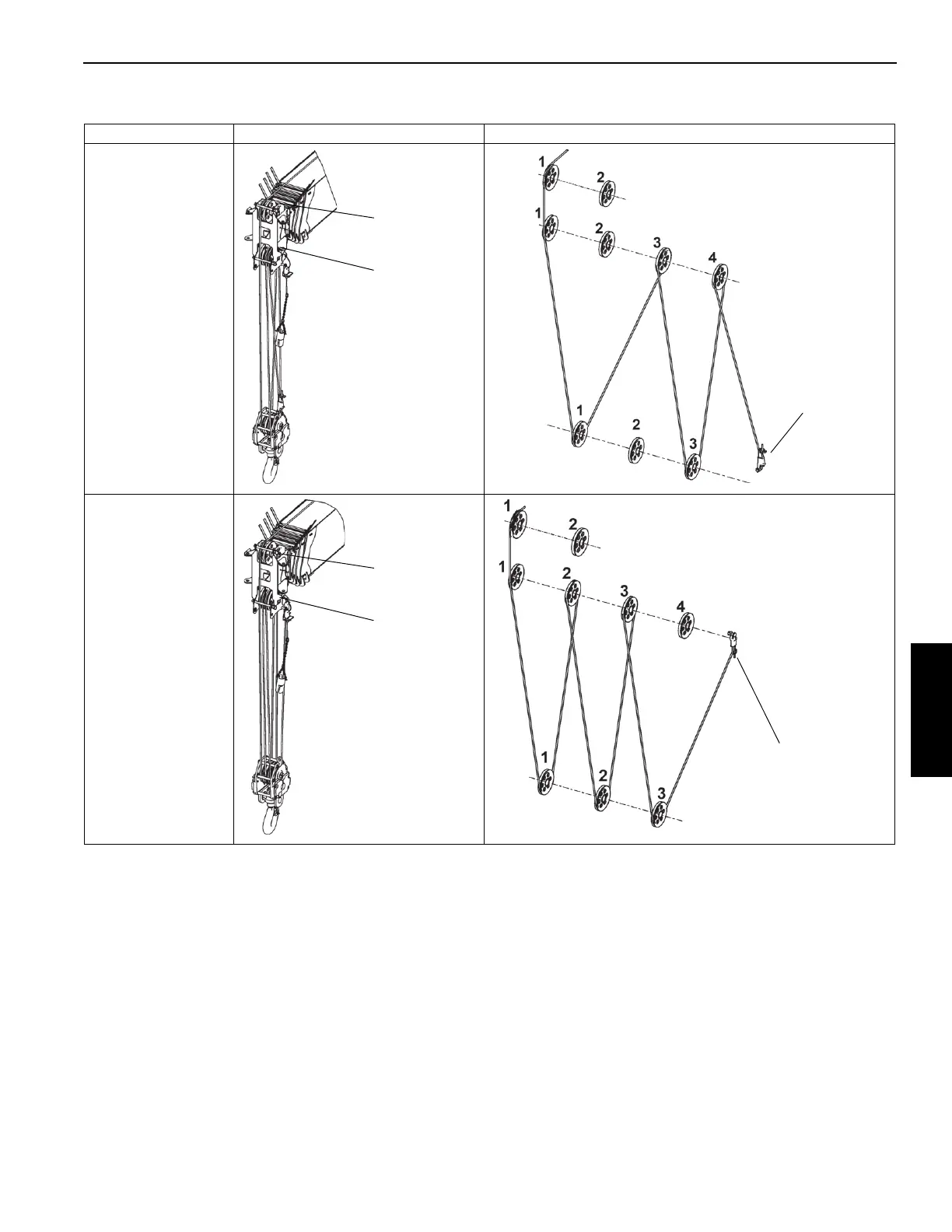

Table 4-1 Possible Multi-Part Line Reeving Combinations (Continued)
Line Parts Assembled View Reference Drawing
3-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9647
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Hook Block
9648
3-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9649
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Boom Nose
9650
