SET-UP OPERATOR MANUAL NBT60L
4-18 Published 09-06-2019 Control # 691-01
7-Part Line Reeving
8-Part Line Reeving

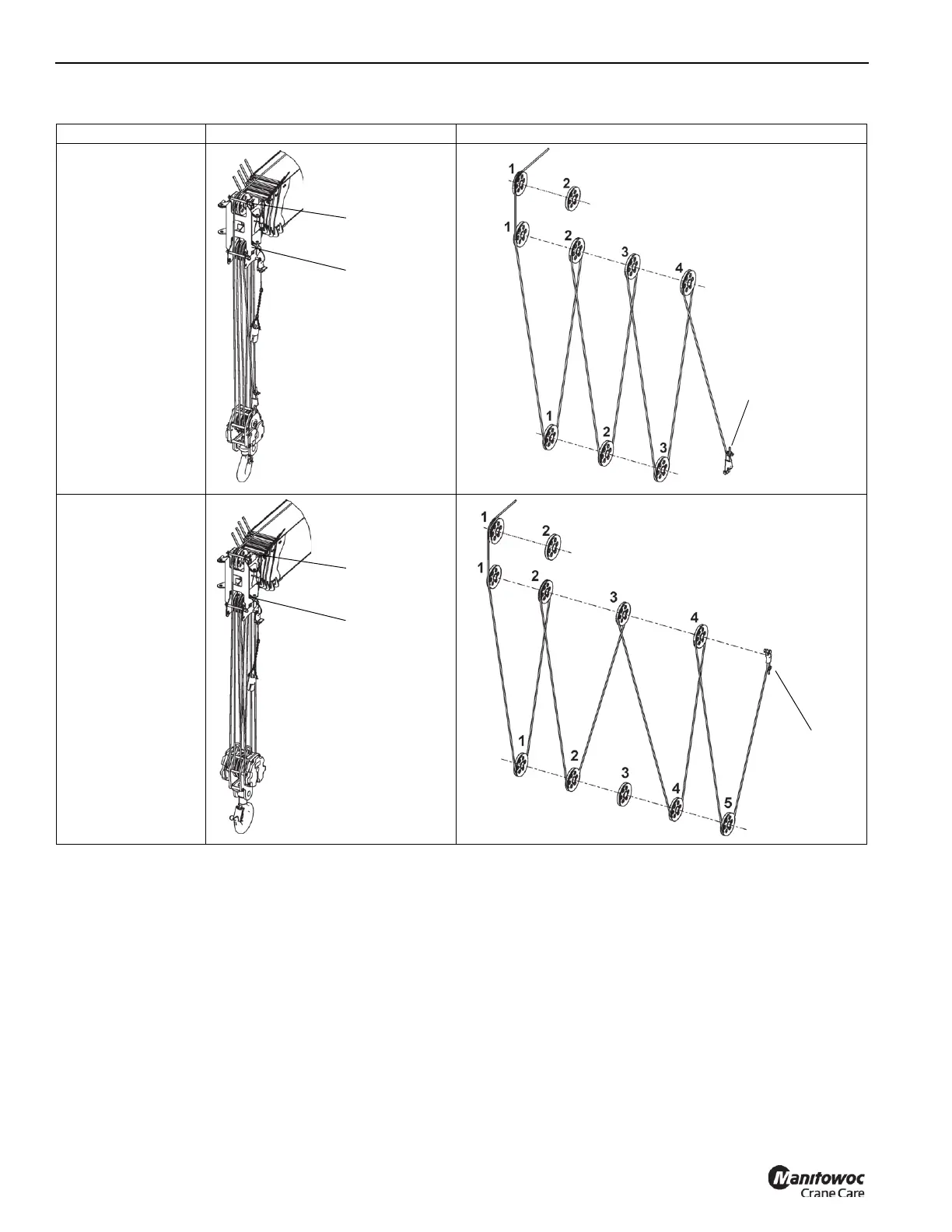

Table 4-1 Possible Multi-Part Line Reeving Combinations (Continued)
Line Parts Assembled View Reference Drawing
3-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9651
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Hook Block
9652
5-Sheave
Hook Block
ATB
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
9653
Bottom Boom
Nose Sheaves
Top Boom
Nose Sheaves
Hook Block
Sheaves
Connect to
Boom Nose
9654
