RATED CAPACITY LIMITER NBT60L OPERATOR MANUAL
7-6 Published 09-06-2019 Control # 691-01
Hoist 1 (Main) Raise High Speed
(If Equipped) Hoist 2 (Auxiliary) Raise High
Speed
Hoist 1 (Main) Lower
(If Equipped) Hoist 2 (Auxiliary) Lower
Hoist 1 (Main) Lower High Speed
(If Equipped) Hoist 2 (Auxiliary) Lower High
Speed
Hoist 1 (Main) Inactive
(If Equipped) Hoist 2 (Auxiliary) Inactive
Windspeed Indicator Reading (If Equipped)
— This box shaded depending on wind speed:
• Green. Less than or equal to 20
mph
• Yellow. Greater than or equal to
20.1 mph and less than or equal to 30 mph
• Red. Greater than 30.1 mph
Swing Brake — Indicates that swing brake is
ON. This icon is not shown when the swing
brake is OFF.
3rd Wrap Indicator — Indicates when the 3rd
(minimum) wrap is detected. For more
information about the 3rd wrap indicator, see
“3rd Wrap Indicator” on page 3-18.
Reeving Selection — Reeving selecting
screen. Pressing this button returns to the
reeving configuration screen for number of parts
of line selection.
LIMIT
LIMIT — Pressing enables the RCL Limits
Menu screen and WADS options main menu.
TARE — Pressing will enable/disable TARE or
zeros out the current load indicated on the
screen to show the active weight of the load
only. TARE button icon flashes BLUE when
active.
Reeved Parts — Displays the number of rope
parts reeved.

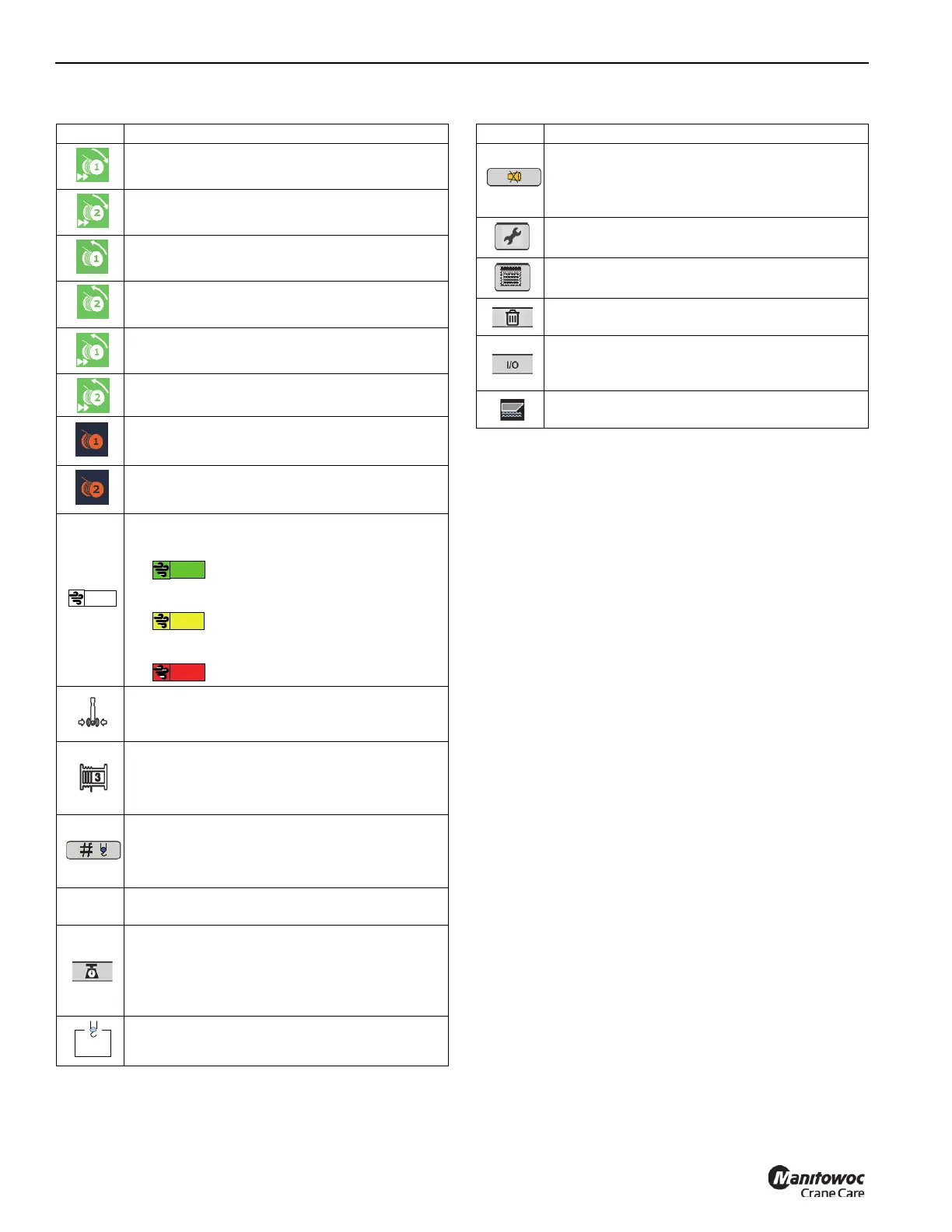

Table 7-3 RCL Screen Symbols (Continued)
Icon Description
Horn Silence — When highlighted blue,
indicates the RCL warning horn is temporarily
disabled for 15 seconds. The horn silence
button icon is shaded when active.
Diagnostics — Pressing this button returns to
the diagnostics screen.
MAIN — Pressing this key returns to the MAIN
Menu screen.
Delete — Pressing this key deletes the current
setting or value.
Real Time I/O — Pressing this button
navigates to the Real Time Input/Output (I/O)
screen.
Barge Mode — Icon shown when barge mode
was selected.
Table 7-3 RCL Screen Symbols (Continued)
Icon Description
To Next Page
