NBT60L OPERATOR MANUAL CONTROLS AND OPERATING PROCEDURES
3
NATIONAL CRANE Published 09-06-2019 Control # 691-01 3-37
1. Lower the boom as necessary to access the
anemometer.
2. Remove the safety pin clip (1, Figure 3-29). Remove the
pin.
3. Remove the bushing (2) from the anemometer mast (3)
and rod keeper (4).
4. Remove the anemometer mast (3) from the rod keeper
(4).
5. Re-Install the bushing (2) and safety pin (1) on the rod
keeper (4).
Installing the Anemometer Assembly
Use the following procedure to install the anemometer
assembly, including the mast, on the boom or jib. Install the
anemometer assembly on the right side of the boom or jib
sheave case.
1. Lower the boom as necessary to access the
anemometer.
2. Install the anemometer mast (3, Figure 3-29) on the rod
keeper (4).
3. Install the bushing (2) over the mast (3) and rod keeper
(4). Align the bushing and keeper holes so the safety pin
can be installed.
4. Install the safety clip (1) in the bushing (2) and keeper
holes (4). Secure the pin (1) with the safety clip.
Changing the Anemometer Battery
Use the following procedure to change the battery in the
wireless anemometer. For more information about
acceptable battery types, see “Specifications” on page 6-10.
1. Lower the boom as necessary to access the
anemometer.
2. Remove the battery cover (Figure 3-28) and old battery
from the anemometer.
3. Install the replacement battery. For more information
about acceptable battery types, see “Specifications” on
page 6-10.
4. Replace the battery cover.
5. Turn power on to the crane. Using the RCL screen,
verify that the anemometer is transmitting data.
Stowing the Anemometer Assembly
Use the following procedure to stow the anemometer
assembly on the storage bracket in the crane cab near the
360 swing lock pedal (if installed).
NOTE: The anemometer should be removed and stowed
on the storage bracket in the cab before
transporting the crane to avoid damage to the
anemometer.
NOTE: The battery should be removed if the anemometer
will be stored for a prolonged period of time.
1. Remove the anemometer assembly from the boom or
jib. For more information, see “Removing the
Anemometer Assembly” on page 3-36.

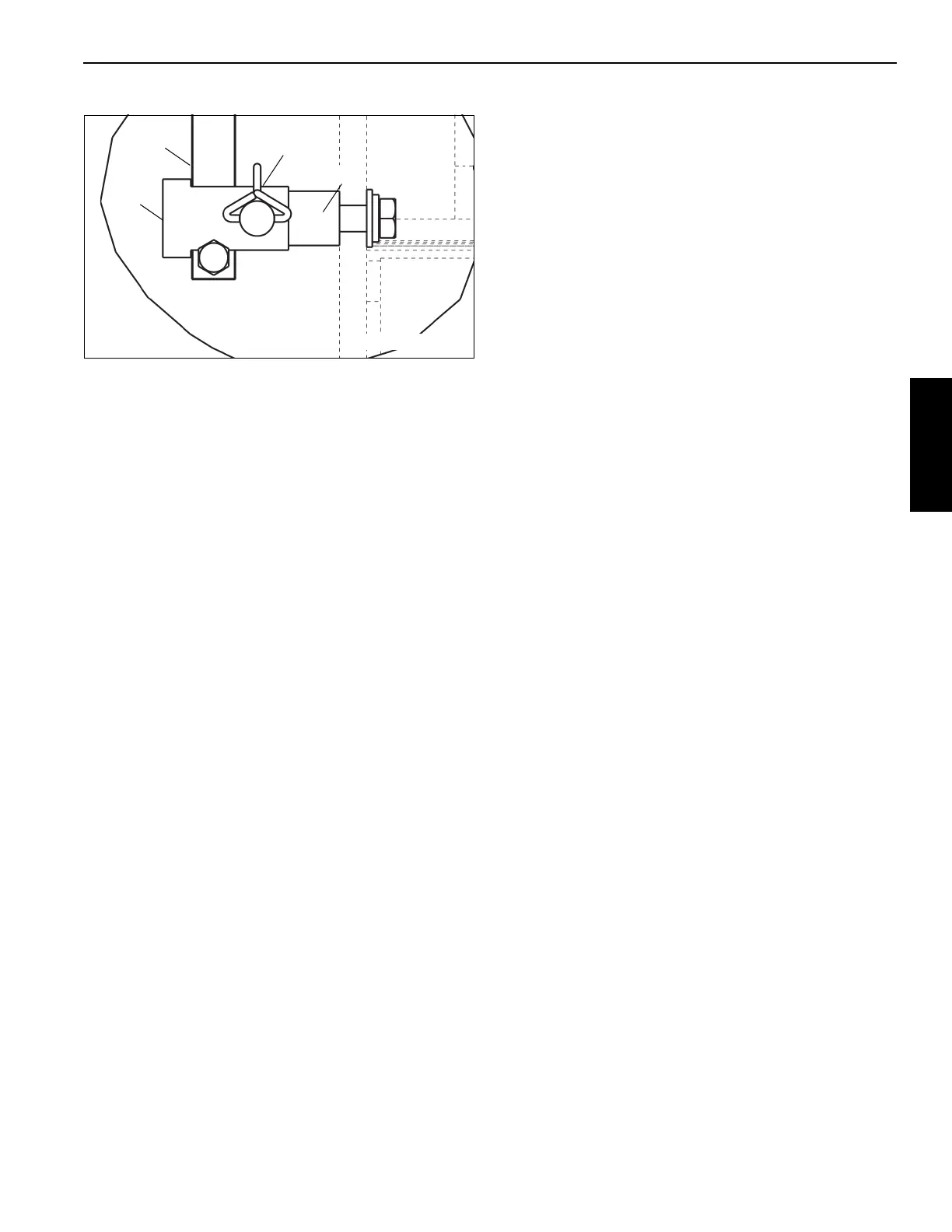

1
2
3
4
FIGURE 3-29
9701
