Section 6 Electrical System
Part No. 80-1100-3 6-11
2. REFRIGERATION SYSTEM
START-UP
The compressor, remote condenser
fan motor and liquid line solenoid
valve energize after the 45-second
water purge, and remain on
throughout the Freeze and Harvest
cycles.
The water fill valve is energized at
the same time as the compressor. It
remains on until the water level
sensor closes for 3 continuous
seconds.
The harvest valve and harvest
pressure regulating (HPR) solenoid
valve remain on for the first 5
seconds of the initial compressor
start-up.
NOTE: (The compressor and the
condenser fan motor are wired
through the contactor. Any time the
contactor coil is energized, these
components are supplied with
power.)

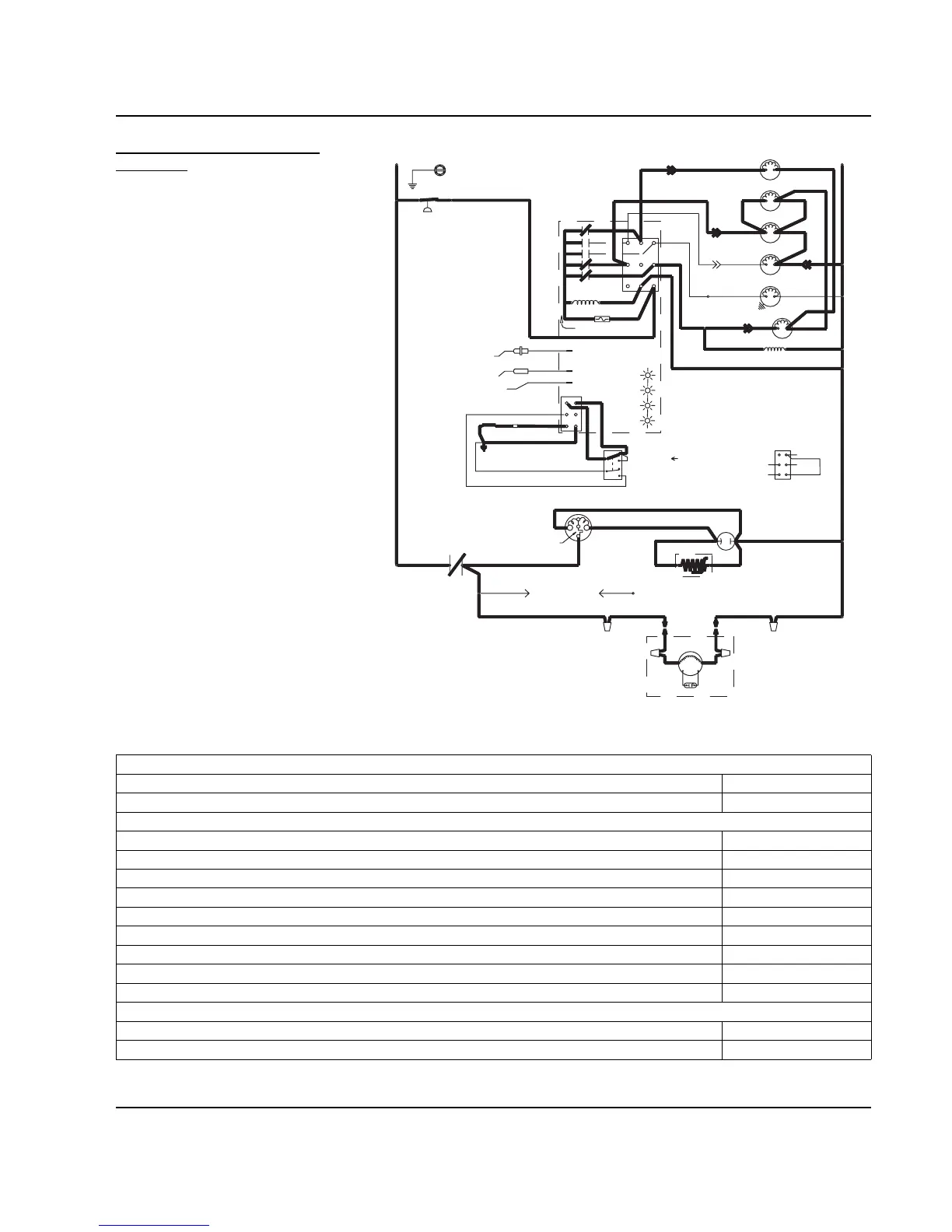

Figure 6-9. Remote — Refrigeration System Start-Up
Table 6-9. Remote Models
2. Refrigeration System Start-Up (5 Seconds)
Toggle Switch ICE
Bin Switch Closed
Control Board Relays
#1 Water Pump Open / OFF
#2 Water Fill Valve Closed / ON
#3 Harvest Solenoid Closed / ON
Harvest Pressure Regulating (HPR) Solenoid Closed / ON
#4 Water Dump Valve Open / OFF
#5 Contactor Coil Closed / ON
Liquid Line Solenoid Energized
Compressor ON
Condenser Fan Motor ON
Safety Controls (Which could stop ice machine operation)
High Pressure Cut-Out Closed
Main Fuse (On Control Board) Closed
TERMINATES AT
PIN CONNECTION
*OVERLOAD
BIN SWITCH
ICE THICKNESS PROBE
(F1)
TB33
(52)
(51)
(48)
To Next Page
