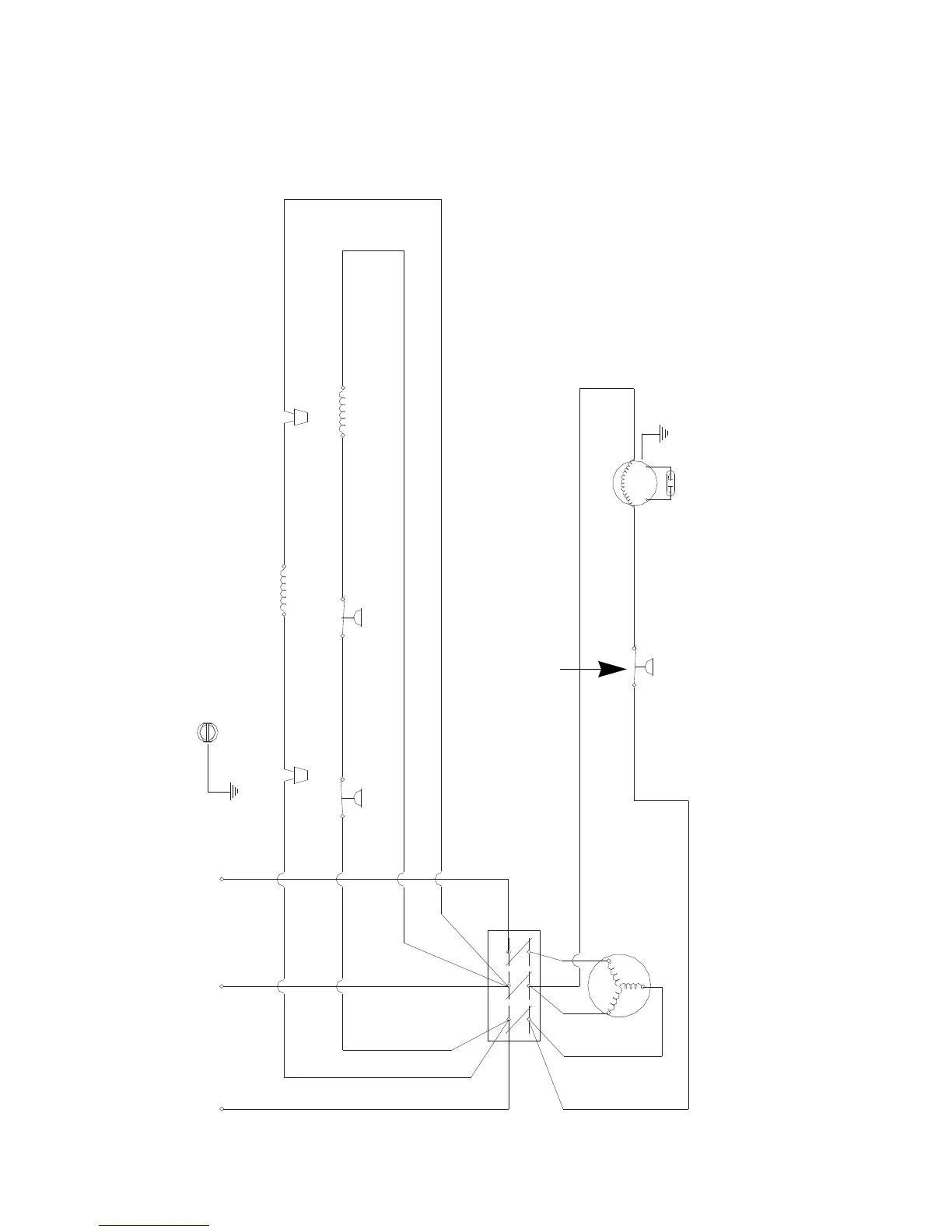

–122–
CVD0675/CVD0875/CVD1075/CVD1475/CVD1476/
CVD1875/CVD2075
208-230V/60Hz/3Ph
(Diagram Shown in Freeze Cycle)
GROUND
COMPRESSOR
CRANKCASE
HEATER
FAN MOTOR
CONTACTOR
COIL
LOW PRESSURE
SWITCH
HIGH PRESSURE
CUTOUT
CONTACTOR
COMPRESSOR
FAN CYCLE
CONTROL
RUN CAPACITOR
(94)
(96)
T1
T2
T3
(85)
(95)
(74)
L1
L2
L3
*CVD675 DOES
NOT HAVE A
FAN CYCLE
*CVD1476 DOES
NOT HAVE A
FAN MOTOR
CONTROL
*CVD1476 & CVD2075 DO
NOT USE A COMPRESSOR
CRANKCASE HEATER
