Section 4 Maintenance
Part Number 000001590 4-9

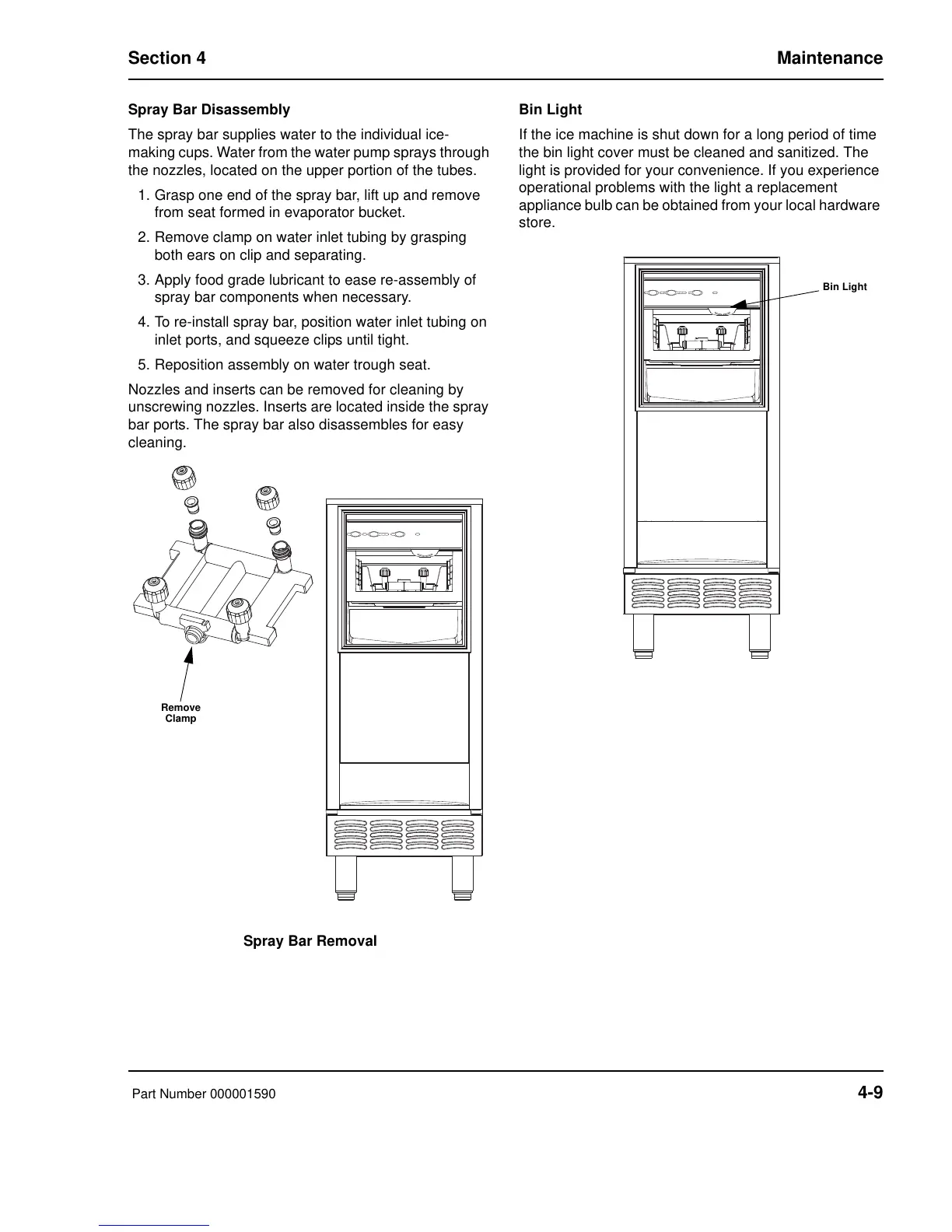

Spray Bar Disassembly
The spray bar supplies water to the individual ice-
making cups. Water from the water pump sprays through
the nozzles, located on the upper portion of the tubes.
1. Grasp one end of the spray bar, lift up and remove
from seat formed in evaporator bucket.
2. Remove clamp on water inlet tubing by grasping
both ears on clip and separating.
3. Apply food grade lubricant to ease re-assembly of
spray bar components when necessary.
4. To re-install spray bar, position water inlet tubing on
inlet ports, and squeeze clips until tight.
5. Reposition assembly on water trough seat.
Nozzles and inserts can be removed for cleaning by
unscrewing nozzles. Inserts are located inside the spray
bar ports. The spray bar also disassembles for easy
cleaning.
Spray Bar Removal
Bin Light
If the ice machine is shut down for a long period of time
the bin light cover must be cleaned and sanitized. The
light is provided for your convenience. If you experience
operational problems with the light a replacement
appliance bulb can be obtained from your local hardware
store.
