26 Part Number 000001590 Rev03 11/19
Maintenance Section 4

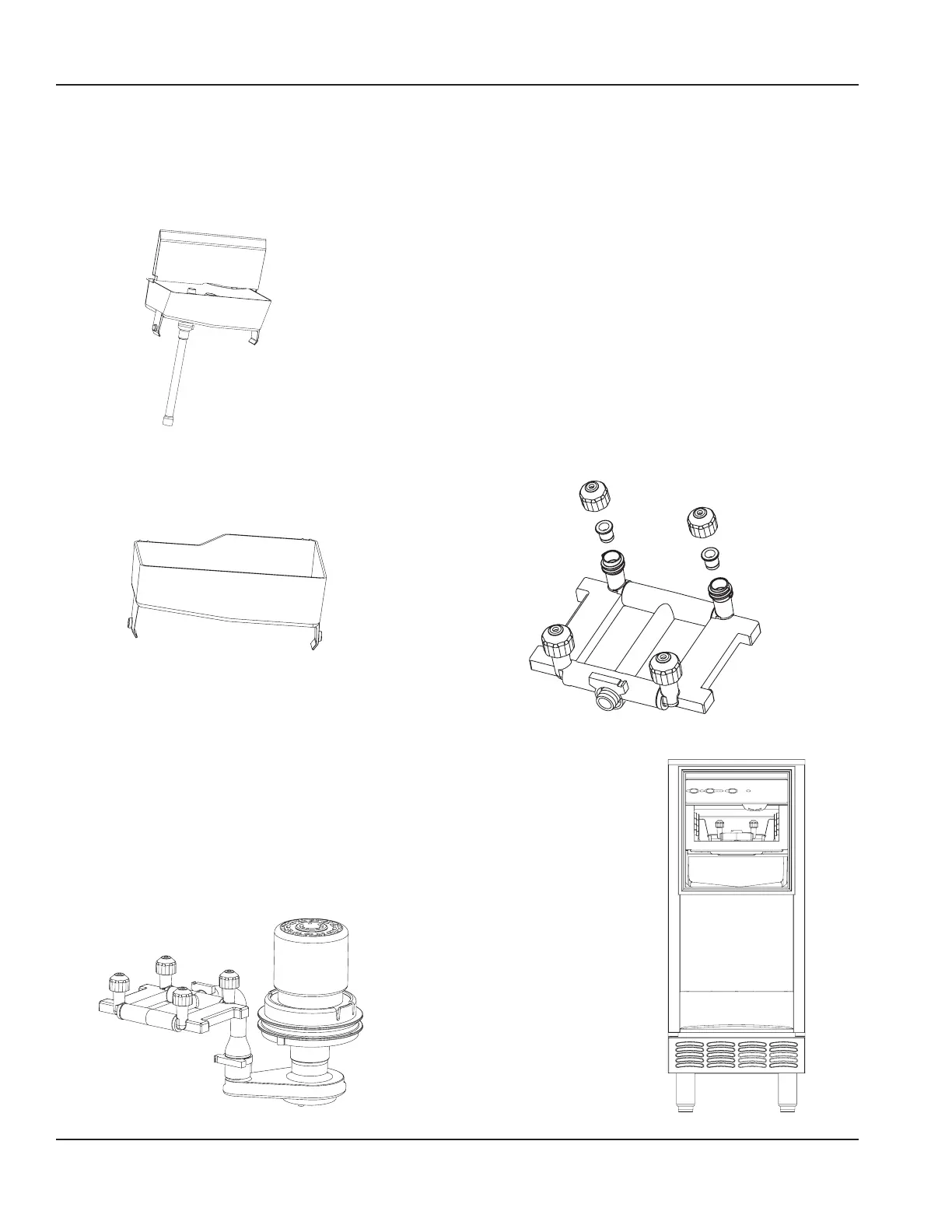

SUMP DRAIN OVERFLOW TUBE
1. Remove clamp.
2. Pull down to remove overflow tube and tubing as an
assembly. The sump trough water will drain into the bin.
3. Remove overflow tube from vinyl tubing by pulling.
WATER TROUGH
1. Depress tabs on right and left side of the water trough.
2. Allow front of water trough to drop as you pull forward
to disengage the rear pins.
SPRAY BAR, WATER PUMP AND HOSE
1. Remove spray bar clamp and spray bar.
2. Grasp pump and pull straight down until water pump
disengages and electrical connector is visible.
3. Disconnect the electrical connector.
4. Remove the water pump from ice machine.
5. Remove clamp from hose to remove from pump.
6. Do not soak the water pump in cleaner or sanitizer.
Wipe the pump and ice machine base clean.
SPRAY BAR DISASSEMBLY
The spray bar supplies water to the individual ice making
cups. Water from the water pump sprays through the
nozzles, located on the upper portion of the tubes.
1. Grasp one end of the spray bar, lift up and remove from
seat formed in evaporator bucket.
2. Remove clamp on water inlet tubing by grasping both
ears on clip and separating.
3. Apply food grade lubricant to ease re-assembly of spray
bar components when necessary.
4. To re-install spray bar, position water inlet tubing on inlet
ports, and squeeze clips until tight.
5. Reposition assembly on water trough seat.
Nozzles and inserts can be removed for cleaning by
unscrewing nozzles. Inserts are located inside the spray bar
ports. The spray bar also disassembles for easy cleaning.
