WATER SHUTTERS

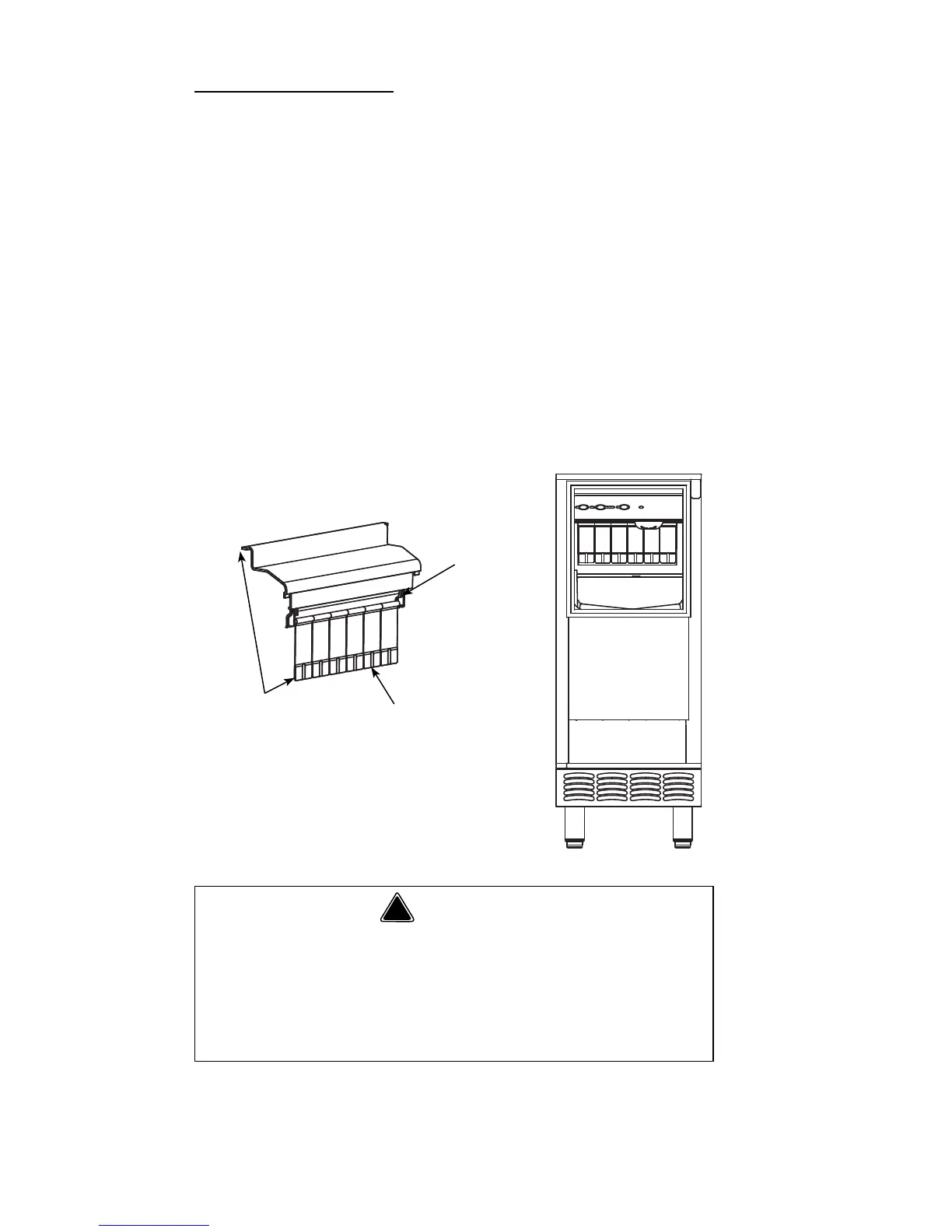

The water shutter is designed to keep the spraying
water from escaping the evaporator compartment.
To remove just the water shutters:
1. Grasp one end of the water shutter and lift up.
2. Pivot water shutter and disengage remaining end.
3. To re-install into ice machine, grasp one end of
the water shutters, install one end, pivot the
opposite end and pull down into position. Make
sure tabs are secure in grooves.
To remove water shutter assembly:
1. Slide evaporator bucket forward 1/2" (13 mm).
2. Lift shutter assembly straight up.
Removing the water shu tters whil e the water
pump is running will allow water to spray from ice
machine. D isconnect the e lectrical p ower to the
ice machine at the electric service switch box and
turn off the water supply.
