Part Number 80-01111-9 7/10 71

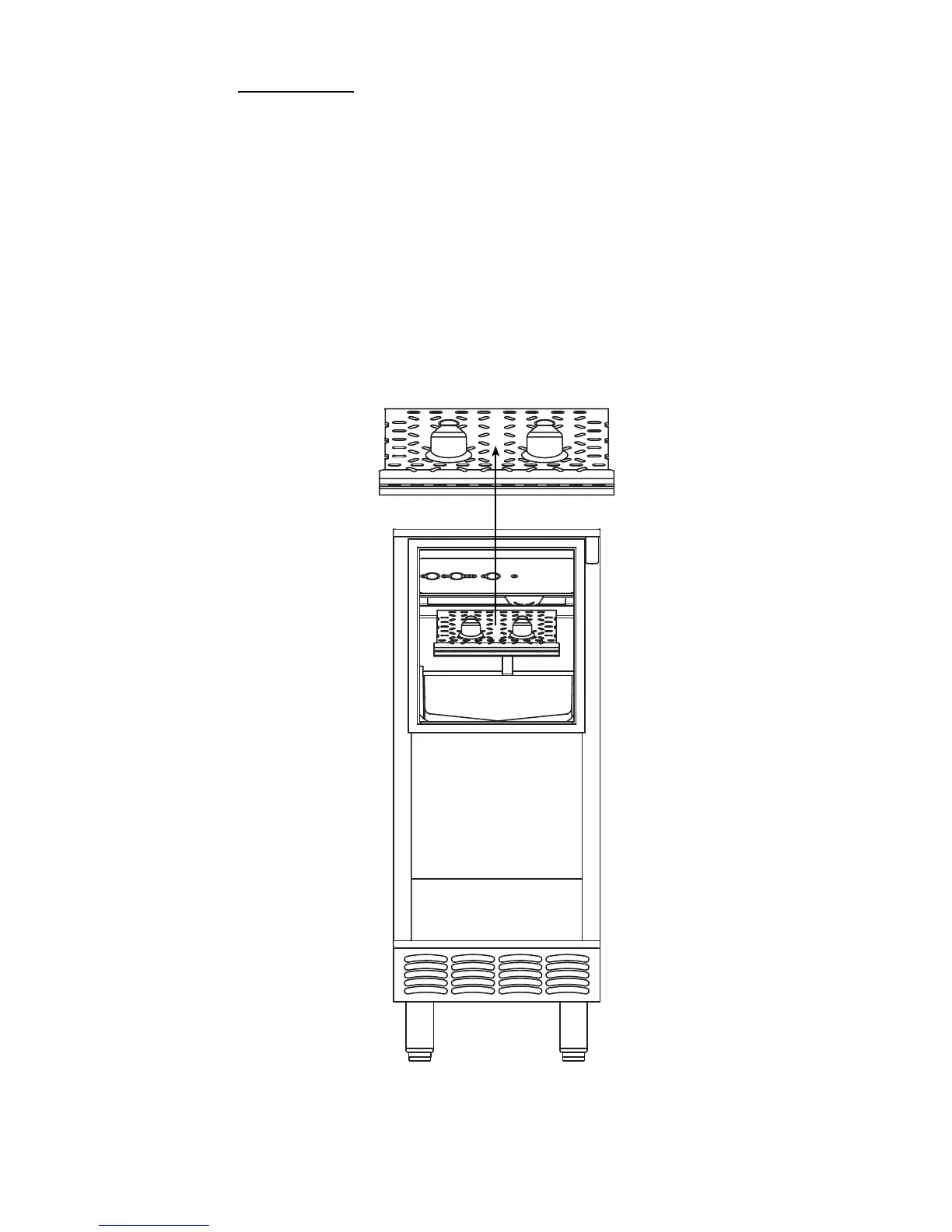

ICE CHUTE
The ice chute is positioned over the spray nozzles and
allows the ice to easily fall into the bin. It must be firmly
positioned over the spray bar, with the front edge
inside the water trough. Spray nozzles must align with
the spray holes or spray water will fall into the bin.
1. Grab protruding spray hole on one end and lift up
and remove.
2. To re-install ice chute, grasp protruding spray hole
and position over Water Distribution Assembly.
Make sure rear supports are over spray bar, and
front edge is inside of water trough.
