58 Part Number 000014797 Rev02 05/18

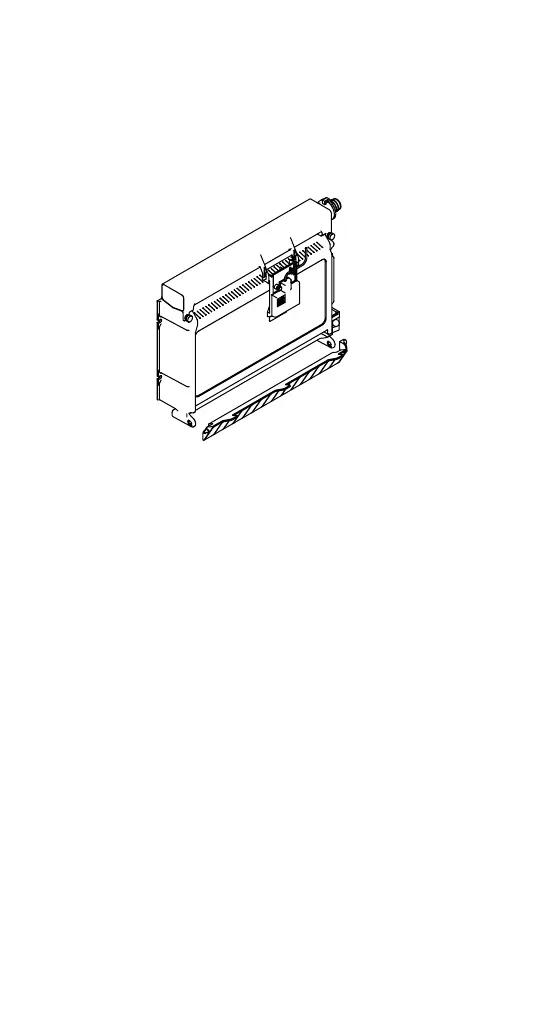

H. Remove the ice damper.
• Grasp left side of ice damper and apply pressure
against the right-hand ice damper mounting bracket.
• Pull forward on the ice damper until the left hand
mounting pin disengages.
Installation
• Grasp the right side of ice damper and place left hand
pin in the mounting bracket.
• While applying pressure against the left-hand
mounting bracket push the damper until the right-
hand mounting pin engages.
To Next Page
