Fitting the saw blade, changing the tool
• Only use sharp, undamaged saw blades. Do not use cracked or
warped saw blades.
• Only use original saw blades from BRÜDER MANNESMANN:
Item No. 352-BL-H wood saw blade
Item No. 352-BL-A metal saw blade

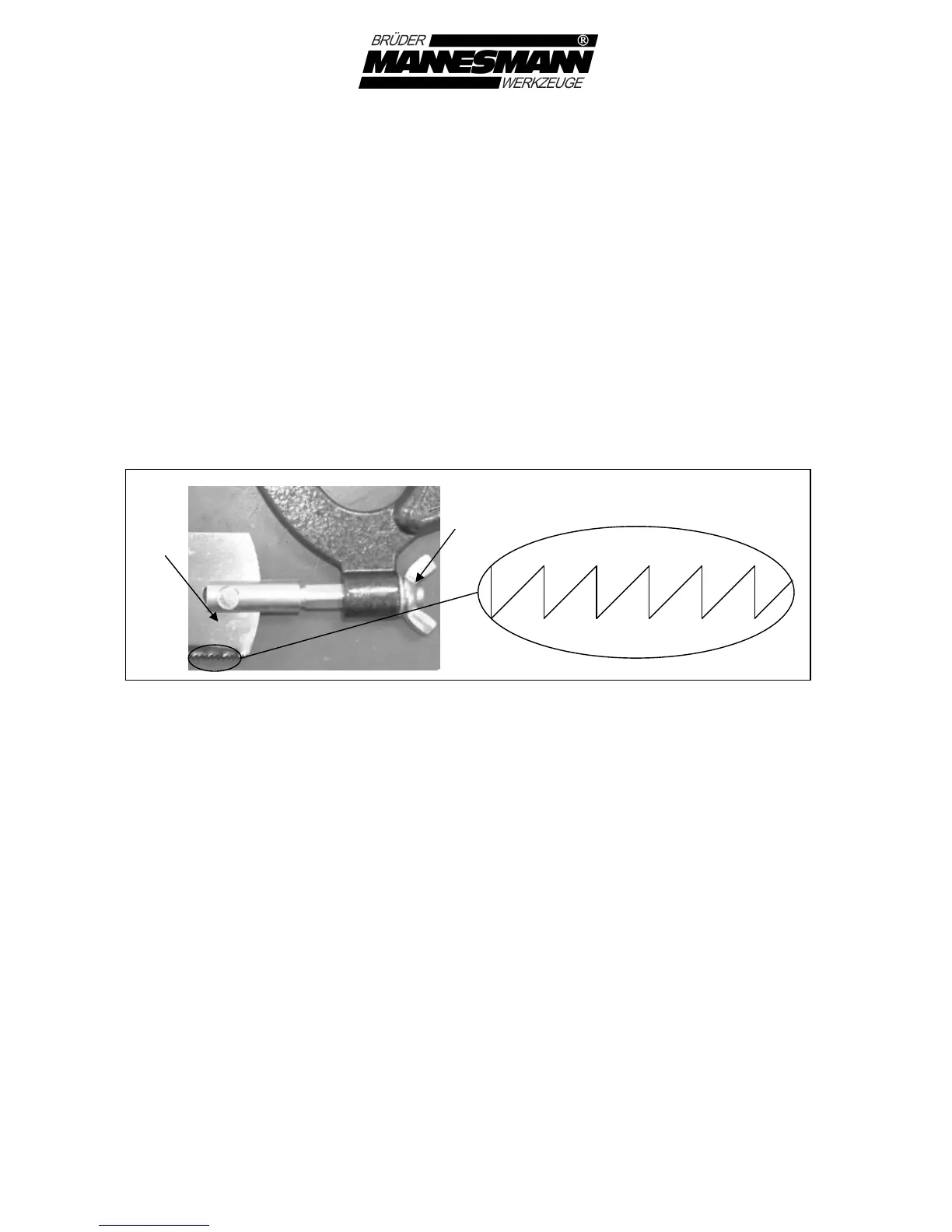

8. Loosen the wing nut (8) on the saw blade holding pin.
9. Position the saw blade (12) with the teeth facing downward into the
holding pin. Make sure that the teeth are oriented forwards in the
direction of thrust.
10. Tighten the wing nuts (8) to tighten up the saw blade.
• After making a few cuts, tighten up the wing nuts (8) again and check
the saw blade again for tightness.
Description of controls
1.) Setting the mitring angle (Fig. 2)
Lift the angle adjustment catch (7) and turn the turntable rail (5) to set
the mitring angle. You can read the angle set from the angle scale (4)
on the saw table.
The spring-loaded angle adjustment catch with the conical centring bolt
serves the centric incremental locking for 45° (square), 54°
(pentagonal), 60° (hexagonal), 67.5° (octagonal), 75° and 90° angle
cuts.
