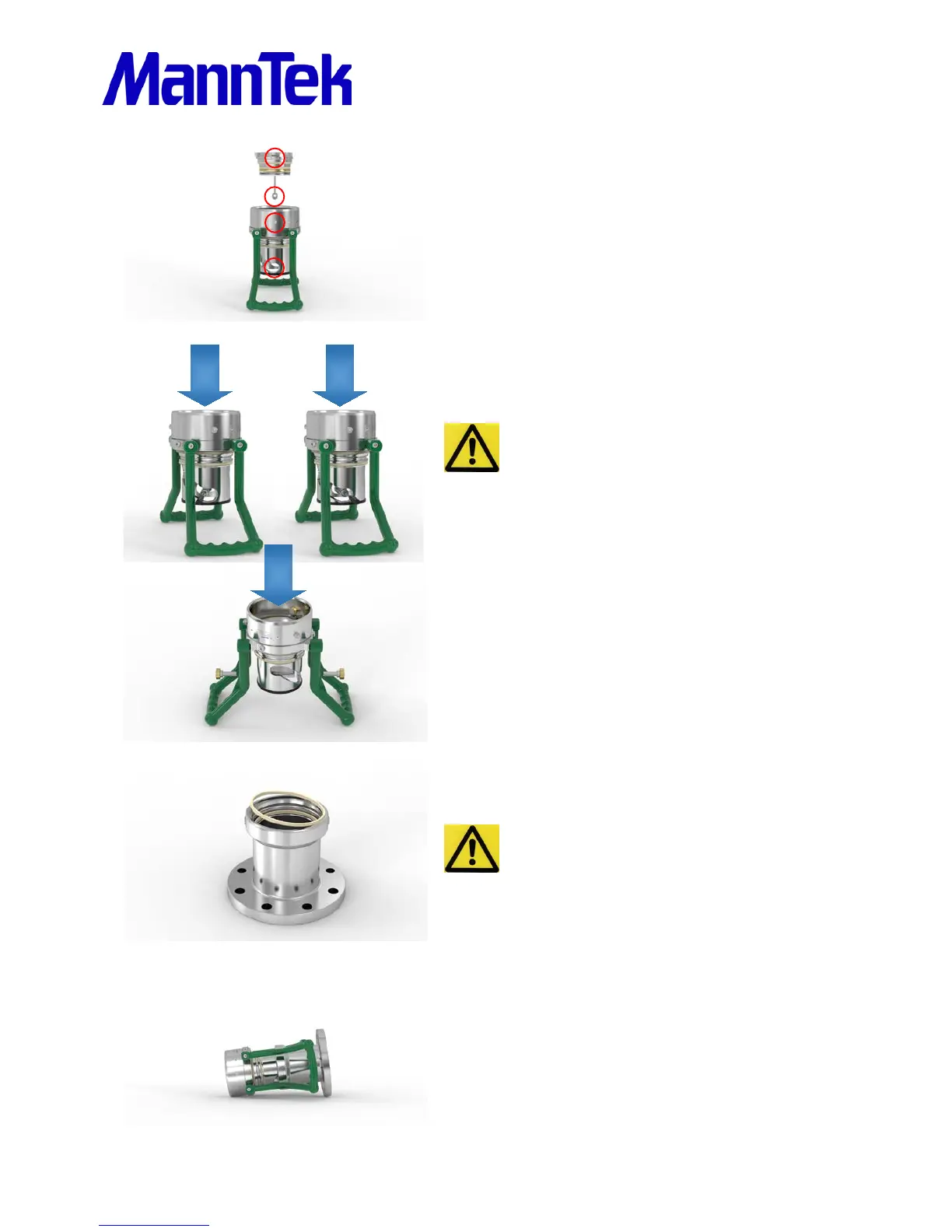

Before the coupling body is placed back on the
driving plate package, make sure that the part
where the upper cam curve ends, shall be placed
exactly over one roll, and the heel on the driving
plate package should be placed under the hole for
the shaft.
Place the coupling body over the driving plate
package. Grab the piston guide and turn the unit
upside down.
(There are different ways to mount the driving plate
package. If yours is not possible like this, ask your
sales representative for an updated instruction)
Assemble the shaft and two rollers for piston guide
by applying pressure to the driving plate packet.
Do not apply too much pressure onto the
inner package, only that the shaft and the
rollers are easy to fit.
Turn the piston guide to the right position.
When mounting back the rollers on the shaft make
sure that the flat side of the rollers face into the
coupling.
Change the seals (pos 21 & 24) in the swivel
sleeve.
Make sure that the seal doesn’t get
scratched when mounting. The open
profile should be in the direction which is
shown in the picture.
Mount the swivel sleeve over the coupling body by
using either a press or vise to push them together.
