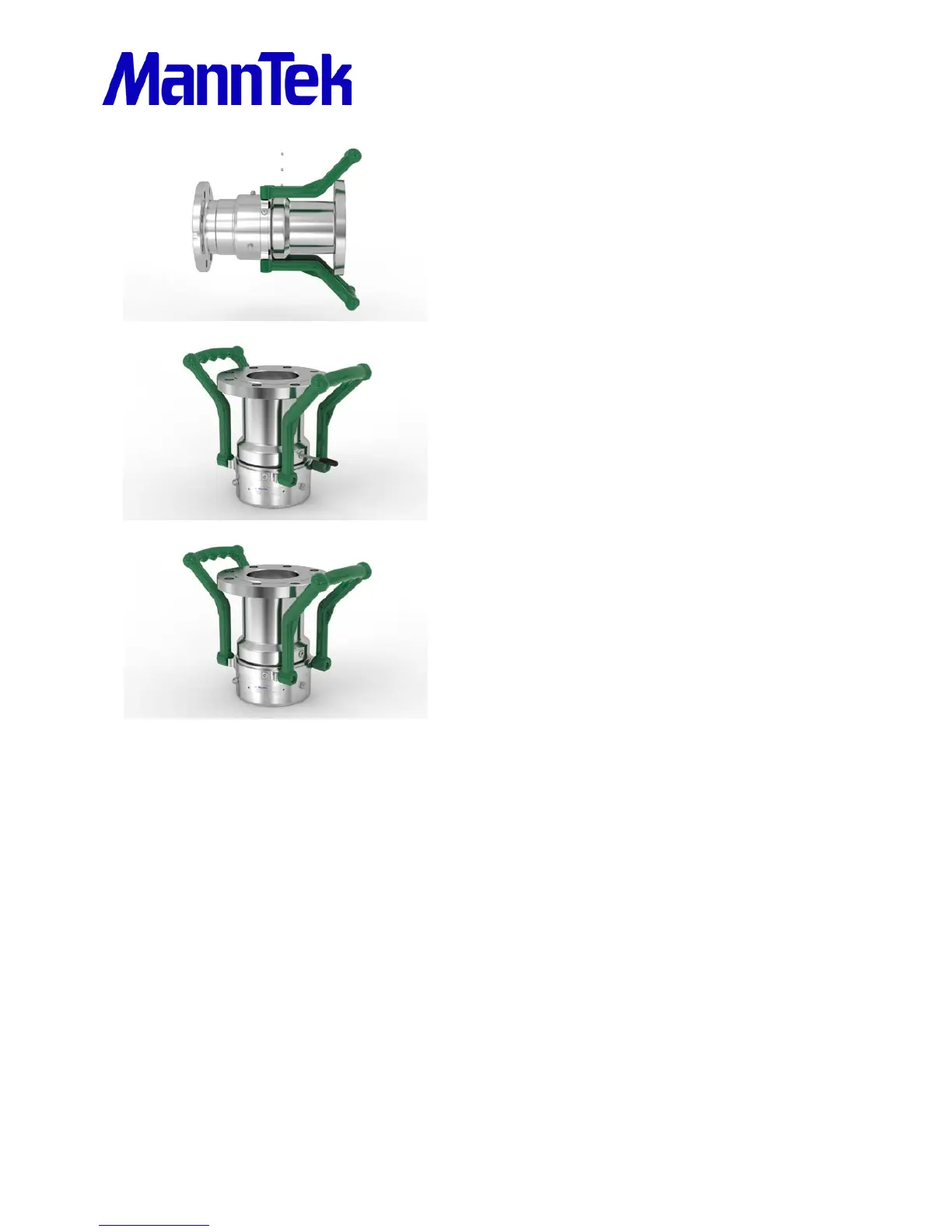

Drop the 48 balls into the swivel joint, turn the
swivel sleeve after each ball.
Use Loctite® 243 and screw the lock screw (pos
23) and o-ring (pos 78) into the swivel ring without
any force! Risk to deform the ball bearing!
Finally, make a visual inspection that everything is
in its place. Do also a test connection /
disconnection with a tank unit that dosn’t have any
fluid inside. If the coupling works alright you are
ready to do a tightness test before mounting the
hose unit on your hose again.
Loctite® is registered trademark of Henkel.
