PAGE 2 MantelMount MM860

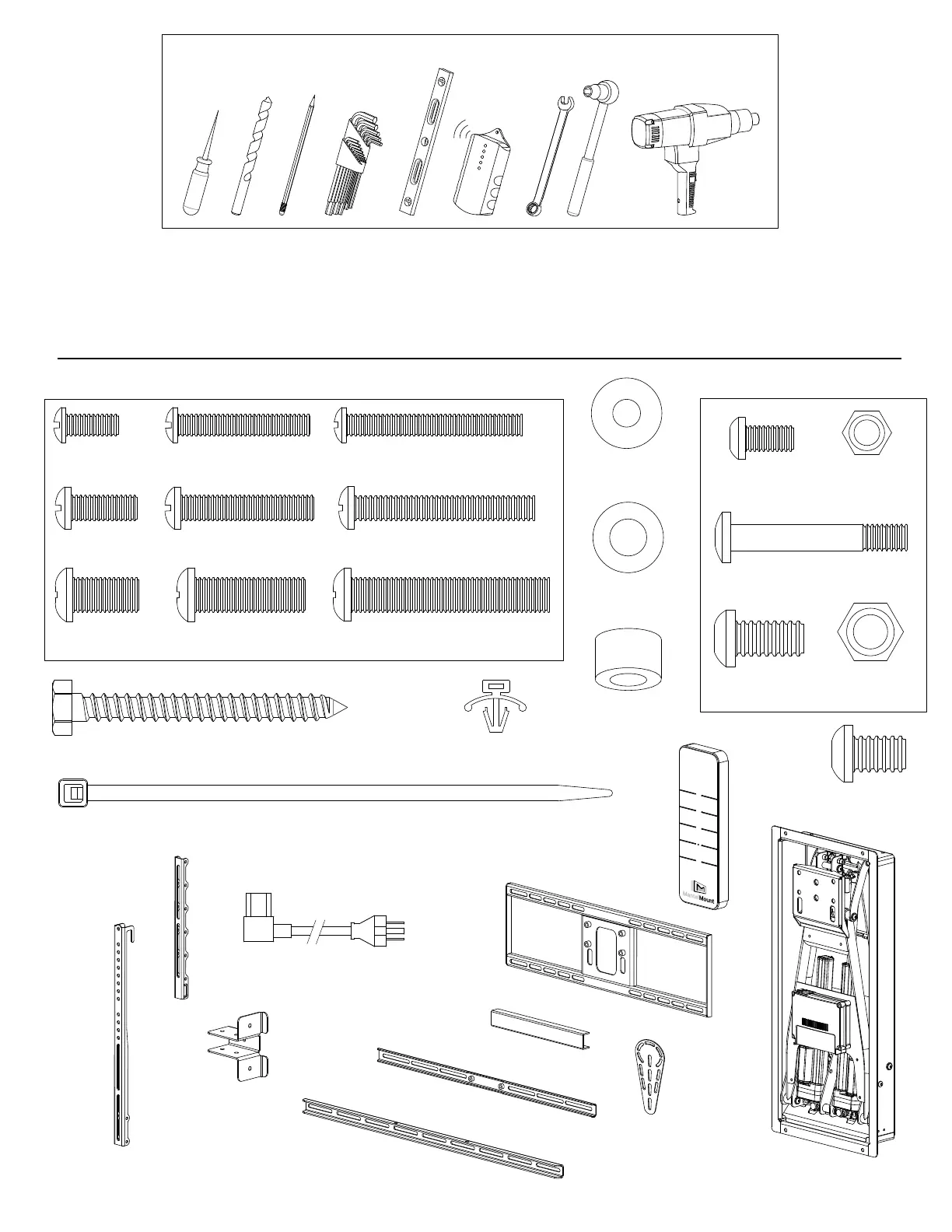

Required Tools
7/32”
10-14mm
4-5mm
Before you begin, please verify that all components are included and undamaged. If any parts
are missing or damaged, contact MantelMount. Never proceed with missing or damaged parts!
Lay out all components and make sure you identify that each one has a match in the diagram.
Some of the parts included will not be used during installation. Do not proceed if you do not
understand and identify all of the components.
{02} x4
M5x30
{01} x4
M5x12
{10} x8
M5-M6
{11} x8
M8
{12} x12
Spacer
{18} x10
M6x12
{19} x4
M6x40
{03} x4
M5x40
{05} x4
M6x30
{04} x4
M6x16
{06} x4
M6x40
{08} x4
M8x25
{07} x4
M8x15
{09} x4
M8x45
{13} x6
Lag Bolt
{16} x8
Locknut M6
{17} x4
Locknut M8
{14}
x4
Anchor
{15} x8
Cable Ties
{20} x8
M8x16
{62} x4
M8x12, Silver
{27} x2
Vertical
Brace
{28} x2
Brace
Extender
{26} x1
TV Frame
{57} x1
Remote
Control
{52} x1
Power Cable
{30} x1
Lift Housing
{25} x6
Wall Cover
{53} x4
Stud Bracket
{29} x1
Horizontal
Brace, TV
{31} x2
Horizontal
Brace
Black Parts for Mount
Silver Screws for back of TV
{59} x2
Soundbar
Wing
To Next Page
