10
Leg Assembly
Leg Assembly

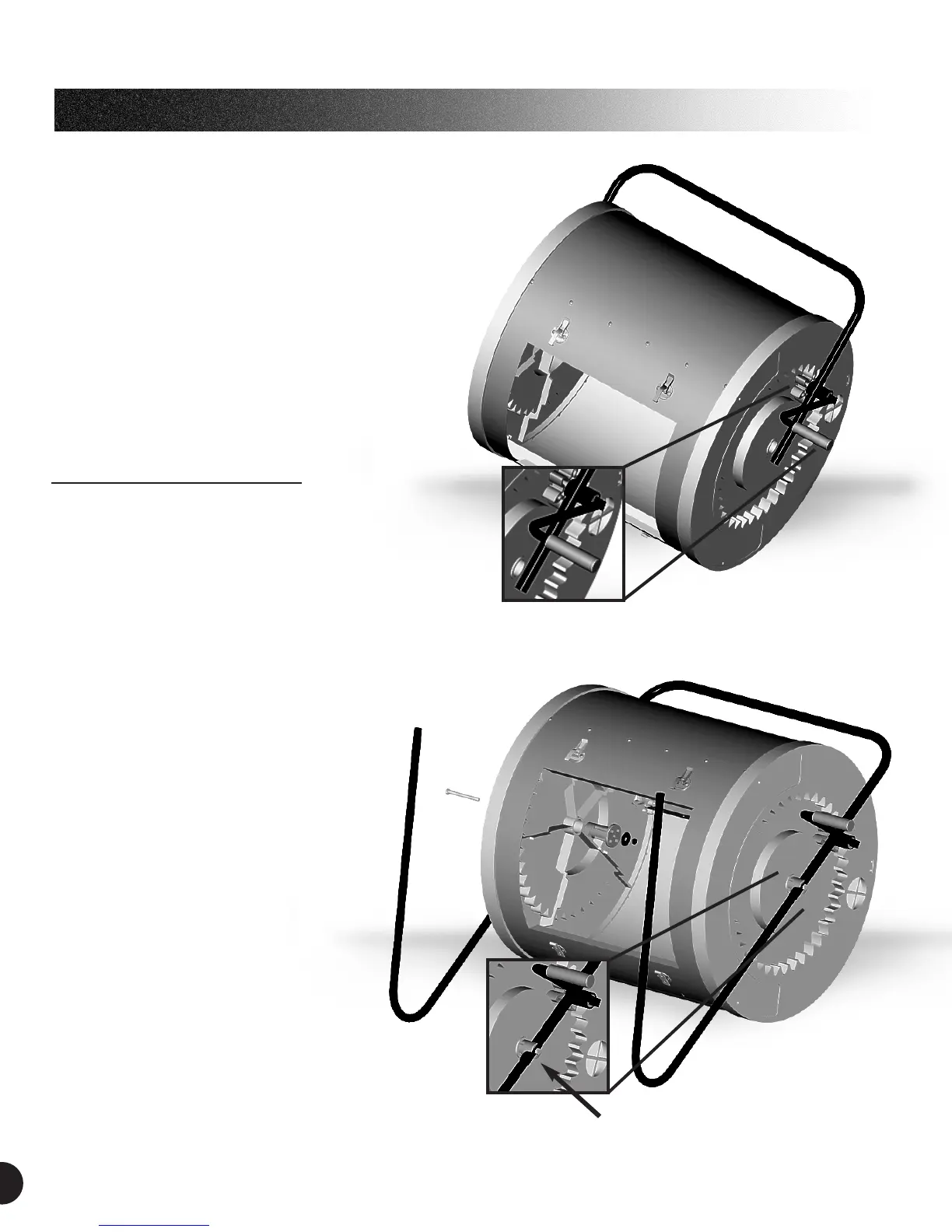

STEP 9:
Gear Drive Positioning
Select:
g
1 Gear drive Assembly (from step 8)
g
1 Drum Assembly
Guide the Drive Gear into the Gear recess
of one Endcap. It may be necessary to pull
the ends or the Drive Support slightly apart
to position it correctly.
STEP 10:
Frame Leg Assembly
Select:
g
1 Drum Assembly with Gear Drive
g
2 Frame Legs (item 22)
g
2 Stub Axles (item 29)
g
2 Bolts,
3
/8" x 4" (item 32)
g
2
3
/8" Fender Washers (item 30)
g
2
3
/8" Nuts (item 31)
A. From inside the Drum, position a Stub
Axle into the center hole of the Endcap while
at the same time, adjusting the end of the
Drive Support so that it fits into the channel
of the Stub Axle.
B. Position a Frame Leg into the end of the
Drive Support until the holes align.
C. Now push one of the 3/8”x 4” Bolts
through both parts and into the center hole
of the Stub Axle.
D. Working again inside the Drum, place
one 3/8” Fender Washer over the end of the
3/8 x 4” Bolt, against the top flange of the
Stub Axle and secure it using a 3/8” Locknut.
E. Repeat this step for the other Stub Axle and
Frame Leg.
