D00729EN - v2 DDS-SSENSOR - INSTALLATION MANUAL
2 COMMISSIONING
The recommended commissioning sequence is as follows: installation, connection, start-up and settings.

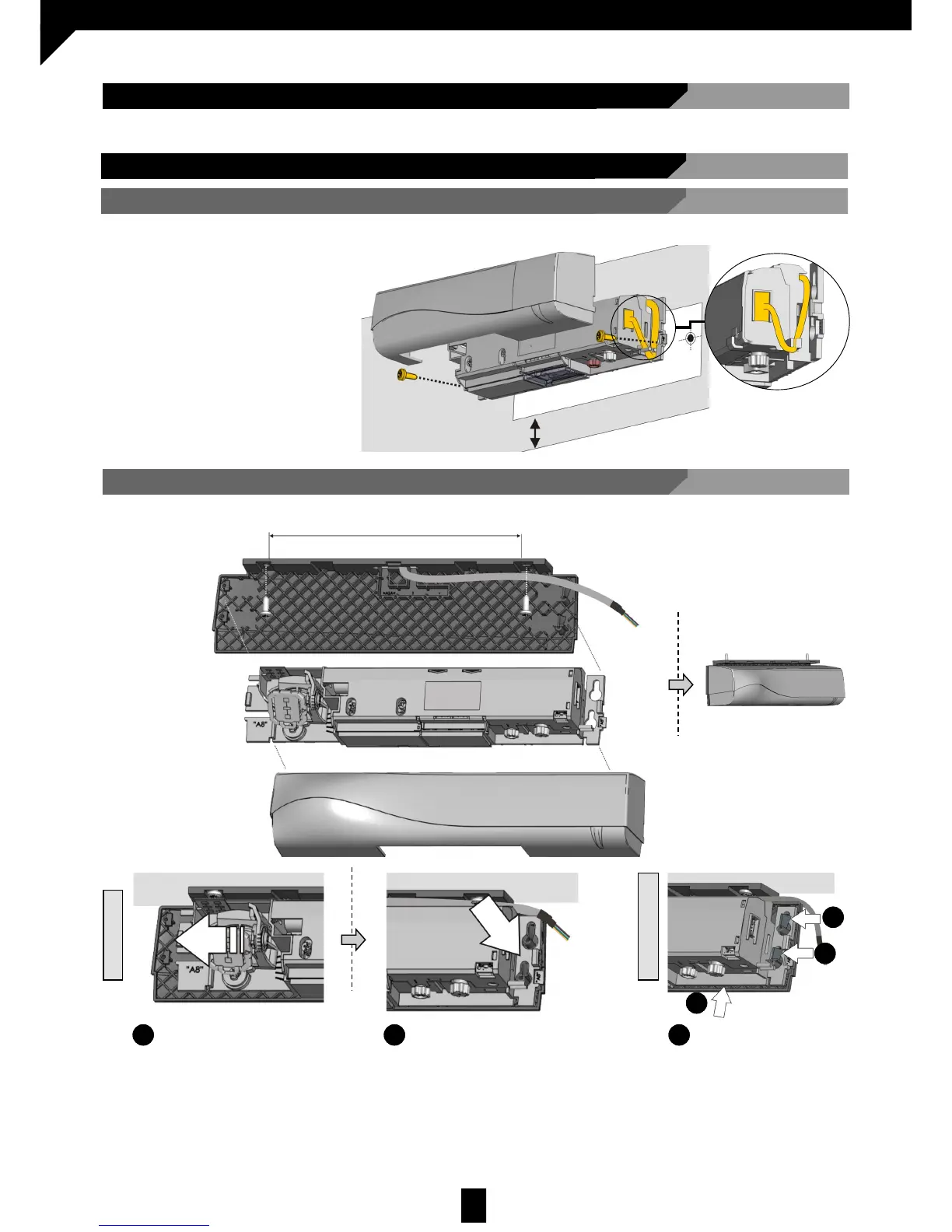

2.1 MOUNTING
Max 5cm
2.1.2 SURFACE MOUNTING (OPTIONAL)
136 mm
2.1.1 STANDARD MOUNTING
Slide
1
Clip
2
Unclip
1
Presionar
1.1
1.1
1.2
MOUNT
DISMOUNT
1. Remove the protective cover
2. Connect the cable
3. Position the drilling template
4. Drill the holes and remove the template
5. Pass the cable through and install
the sensor
