DTCXSL02EN - v2
Installation manual
SMART SELECTOR WITH LCD
TRANSLATED DOCUMENT
10.1. NAVIGATION MENU
10.2. OPTIONS AVAILABLE IN MENU
0 - INDEX
1 - DESCRIPTION
Read this instruction manual before use.
In this manual you will find all the necessary
information for the correct installation of the product.
Keep this manual in a safe place for later referral.
Control device to be used exclusively with the Visio
operator, which allows users to select the door’s operating
mode, modify operating parameters, view malfunctions and
other data such as time and number of opening cycles. The
selector comprises an LCD screen and three function
buttons:

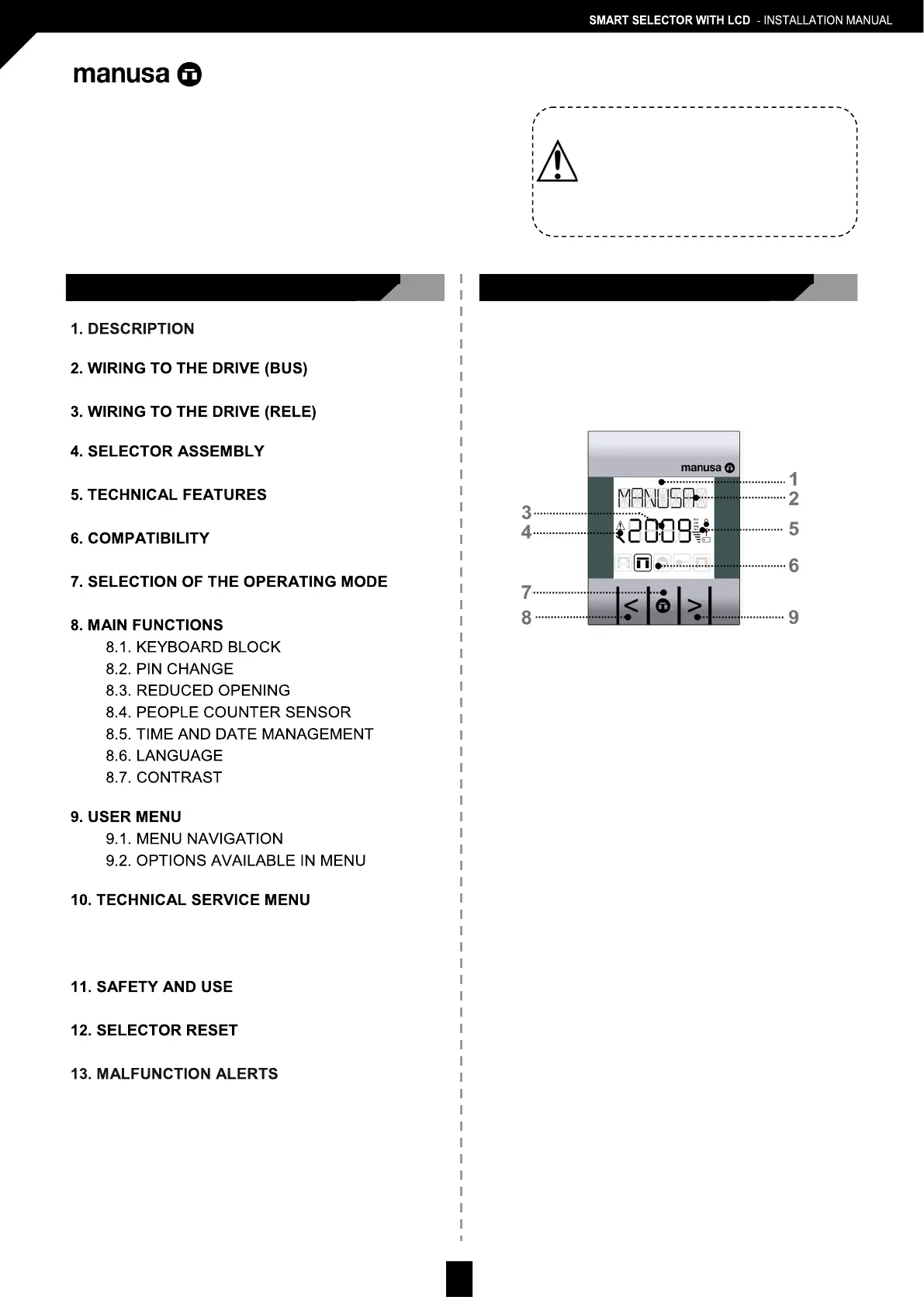

1. LCD display
2. Message viewing area to display the operating mode,
setup menus, malfunction alerts, etc.
3. Numeric data area. You can view data such as the time,
the number of opening cycles and the values of the
operating parameters.
4. Malfunction alerts icon area
5. Additional symbols area. Displays the values of the
operating parameters, and selector status.
6. Area of icons representing the door operating mode.
7. Confirmation button.
8. Right selection button.
9. Left selection button.
