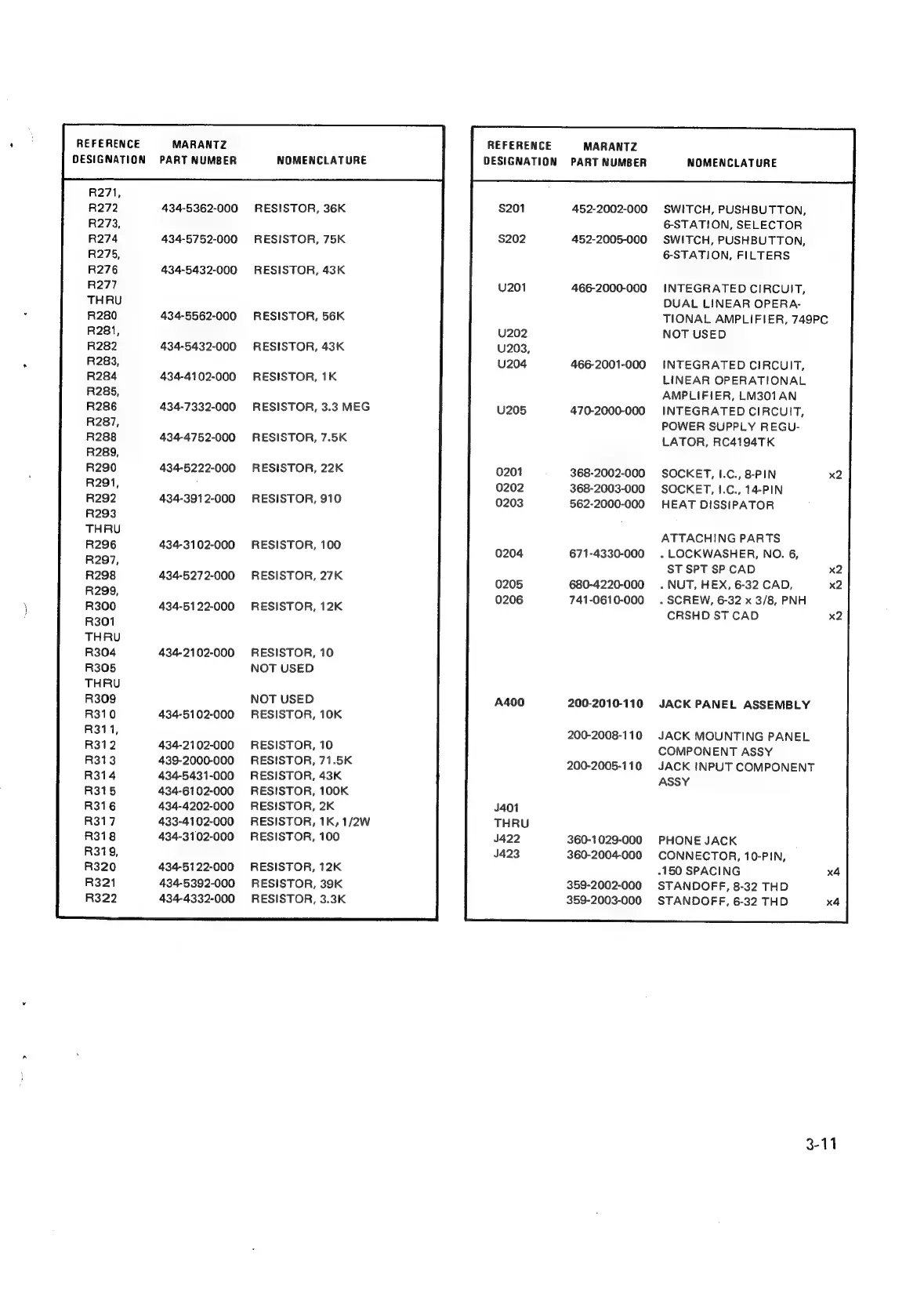

Marantz 3800 - Page 42

REFERENCE MARANTZ
DESIGNATION PART NUMBER
434-5362-000
434-5752-000
434-5432-000
434-5562-000
434-5432-000
434-4102-000
434-7332-000
434-4752-000
434-5222-000
434-391 2-000
434-3102-000
434-5272-000
434-5122-000
434-2102-000
434-5102-000
434-2102-000
439-2000-000
434-5431-000
434-6102-000
434-4202-000
433-4102-000
434-3102-000
434-5122-000
434-5392-000
434-4332-000
REFERENCE
NOMENCLATURE DESIGNATION
RESISTOR, 36K
RESISTOR, 75K
RESISTOR, 43K
RESISTOR, 56K
RESISTOR, 43K
RESISTOR, 1K
RESISTOR, 3.3 MEG
RESISTOR, 7.5K
RESISTOR, 22K
RESISTOR, 910
RESISTOR, 100
RESISTOR, 27K
RESISTOR, 12K
RESISTOR, 10
NOT USED
NOT USED
RESISTOR, 10K
RESISTOR, 10
RESISTOR, 71.5K
RESISTOR, 43K
RESISTOR, 100K
RESISTOR, 2K
RESISTOR, 1K, 1/2W
RESISTOR, 100
RESISTOR, 12K
RESISTOR, 39K
RESISTOR, 3.3K
MARANTZ
PART NUMBER
452-2002-000
452-2005-000
466-2000-000
466-2001-000
470-2000-000
368-2002-000
368-2003-000
562-2000-000
671-4330-000
680-4220-000
741-0610-000
200-2010-110
200-2008-110
200-2005-110
360-1029-000
360-2004-000
359-2002-000
359-2003-000
NOMENCLATURE
SWITCH, PUSHBUTTON,
6-STATION, SELECTOR
SWITCH, PUSHBUTTON,
6-STATION, FILTERS
INTEGRATED CIRCUIT,
DUAL LINEAR OPERA-
TIONAL AMPLIFIER, 749PC
NOT USED
INTEGRATED CIRCUIT,
LINEAR OPERATIONAL
AMPLIFIER, LM301AN
INTEGRATED CIRCUIT,
POWER SUPPLY REGU-
LATOR, RC4194TK
SOCKET, I.C., 8-PIN
SOCKET, I.C., 14-PIN
HEAT DISSIPATOR
ATTACHING PARTS
. LOCKWASHER, NO. 6,
ST SPT SP CAD
. NUT, HEX, 6-32 CAD,
. SCREW, 6-32 x 3/8, PNH
CRSHD ST CAD
JACK PANEL ASSEMBLY
JACK MOUNTING PANEL
COMPONENT ASSY
JACK INPUT COMPONENT
ASSY
PHONE JACK
CONNECTOR, 10-PIN,
-150 SPACING
STANDOFF, 8-32 THD
STANDOFF, 6-32 THD
