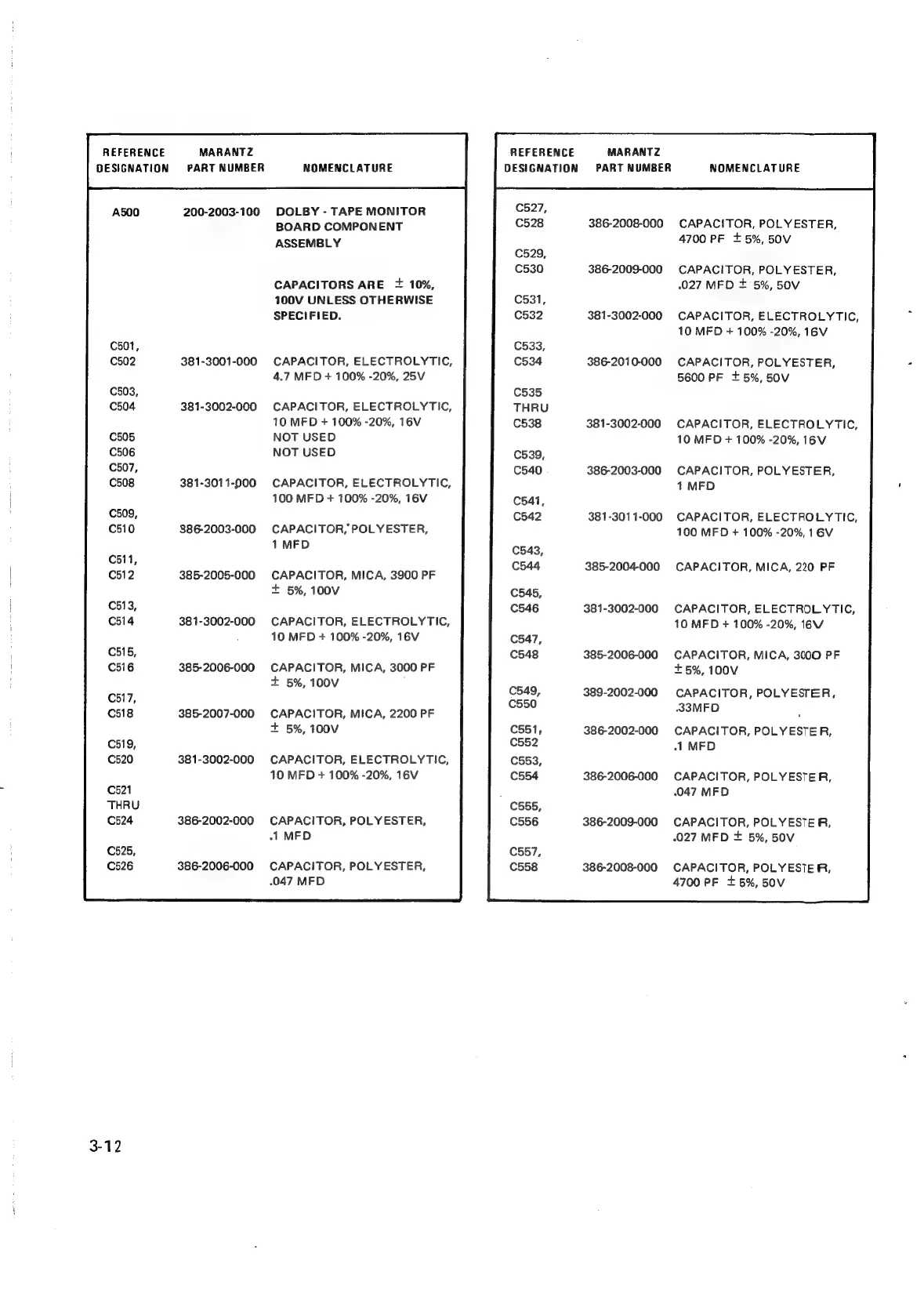

Marantz 3800 - Page 43

REFERENCE
DESIGNATION
3-12
MARANTZ
PART NUMBER
200-2003-100
381-3001-000
381-3002-000
381-301 1-900
886-2003-000
385-2005-000
381-3002-000
385-2006-000
385-2007-000
381-3002-000
386-2002-000
386-2006-000
NOMENCLATURE
DOLBY - TAPE MONITOR
BOARD COMPONENT
ASSEMBLY
CAPACITORS ARE + 10%,
100V UNLESS OTHERWISE
SPECIFIED.
CAPACITOR, ELECTROLYTIC,
4.7 MFD + 100% -20%, 25V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
NOT USED
NOT USED
CAPACITOR, ELECTROLYTIC,
100 MFD + 100% -20%, 16V
CAPACITOR, POLYESTER,
1 MFD
CAPACITOR, MICA, 3900 PF
+ 5%, 100V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, MICA, 3000 PF
+ 5%, 100V
CAPACITOR, MICA, 2200 PF
+ 5%, 100V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, POLYESTER,
-1 MFD
CAPACITOR, POLYESTER,
047 MFD
REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
386-2008-000
386-2009-000
381-3002-000
386-201 0-000
381-3002-000
386-2003-000
381-301 1-000
385-2004-000
381-3002-000
385-2006-000
389-2002-000
386-2002-000
386-2006-000
386-2009-000
386-2008-000
NOMENCLATURE
CAPACITOR, POLYESTER,
4700 PF + 5%, 50V
CAPACITOR, POLYESTER,
027 MFD + 5%, 50V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, POLYESTER,
5600 PF +5%, 50V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, POLYESTER,
1 MFD
CAPACITOR, ELECTROLYTIC,
100 MFD + 100% -20%, 16V
CAPACITOR, MICA, 220 PF
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, MICA, 3000 PF
+ 5%, 100V
CAPACITOR, POLYESTER,
33MFD ;
CAPACITOR, POLYESTE R,
-1 MFD
CAPACITOR, POLYESTER,
047 MFD
CAPACITOR, POLYESTE R,
.027 MFD + 5%, 50V
CAPACITOR, POLYESTE R,
4700 PF +5%, 50V
