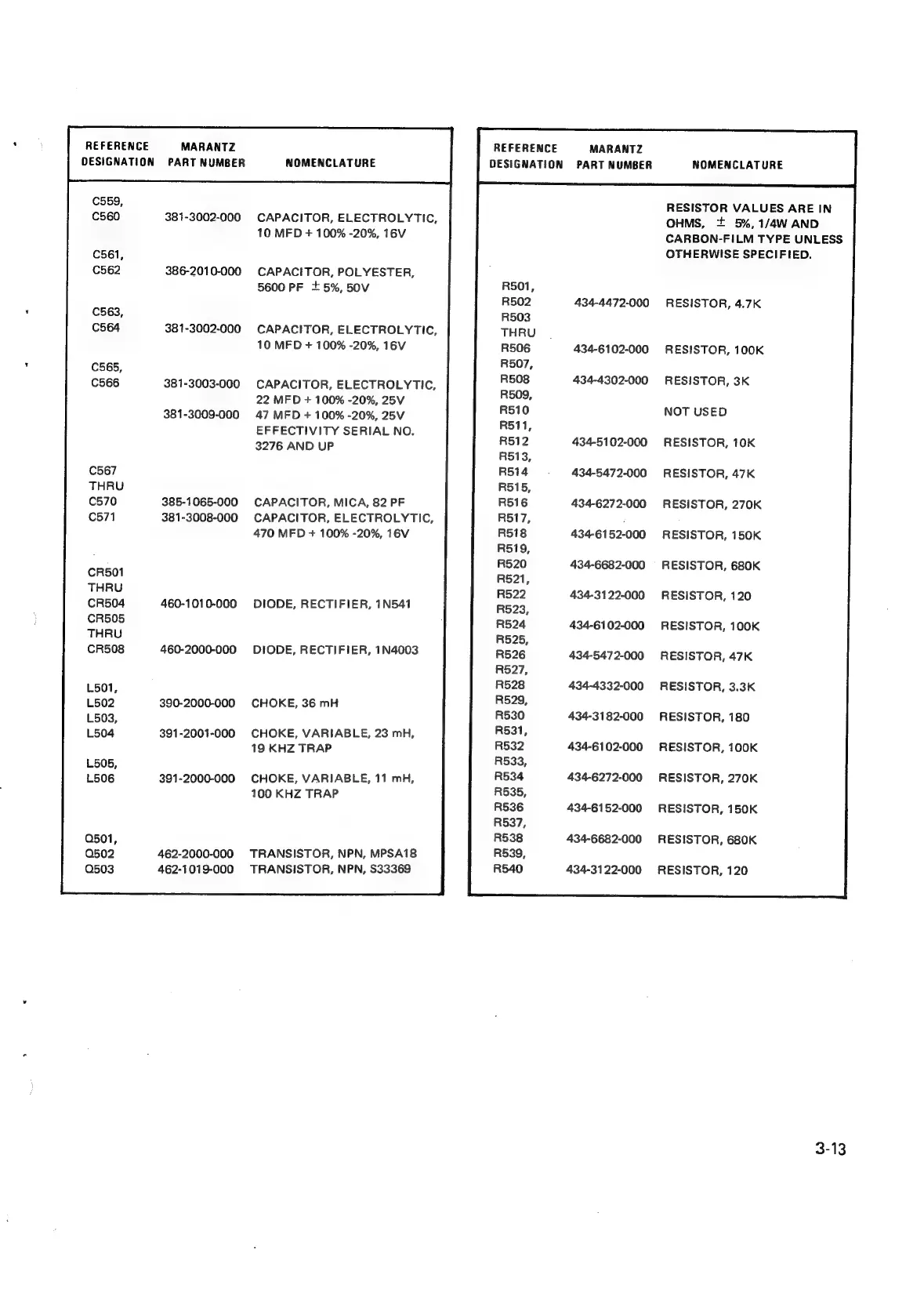

Marantz 3800 - Page 44

REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
381-3002-000
386-201 0-000
381-3002-000
381-3003-000
381-3009-000
385-1065-000
381-3008-000
460-1010-000
460-2000-000
390-2000-000
391-2001-000
391-2000-000
462-2000-000
462-1019-000
NOMENCLATURE
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, POLYESTER,
5600 PF + 5%, 50V
CAPACITOR, ELECTROLYTIC,
10 MFD + 100% -20%, 16V
CAPACITOR, ELECTROLYTIC,
22 MFD + 100% -20%, 25V
47 MFD + 100% -20%, 25V
EFFECTIVITY SERIAL NO.
3276 AND UP
CAPACITOR, MICA, 82 PF
CAPACITOR, ELECTROLYTIC,
470 MFD + 100% -20%, 16V
DIODE, RECTIFIER, 1N541
DIODE, RECTIFIER, 1N4003
CHOKE, 36 mH
CHOKE, VARIABLE, 23 mH,
19 KHZ TRAP
CHOKE, VARIABLE, 11 mH,
100 KHZ TRAP
TRANSISTOR, NPN, MPSA18
TRANSISTOR, NPN, S33369
MARANTZ
PART NUMBER
434-4472-000
434-6102-000
434-4302-000
434-5102-000
434-5472-000
434-627 2-000
434-6152-000
434-6682-000
434-3122-000
434-6102-000
434-5472-000
434-4332-000
434-3182-000
434-6102-000
434-6272-000
434-6152-000
434-6682-000
434-3122-000
NOMENCLATURE
RESISTOR VALUES ARE IN
OHMS, + 5%, 1/4W AND
CARBON-FILM TYPE UNLESS
OTHERWISE SPECIFIED.
RESISTOR, 4.7K
RESISTOR, 100K
RESISTOR, 3K
NOT USED
RESISTOR, 10K
RESISTOR, 47K
RESISTOR, 270K
RESISTOR, 150K
RESISTOR, 680K
RESISTOR, 120
RESISTOR, 100K
RESISTOR, 47K
RESISTOR, 3.3K
RESISTOR, 180
RESISTOR, 100K
RESISTOR, 270K
RESISTOR, 150K
RESISTOR, 680K
RESISTOR, 120
3-13
