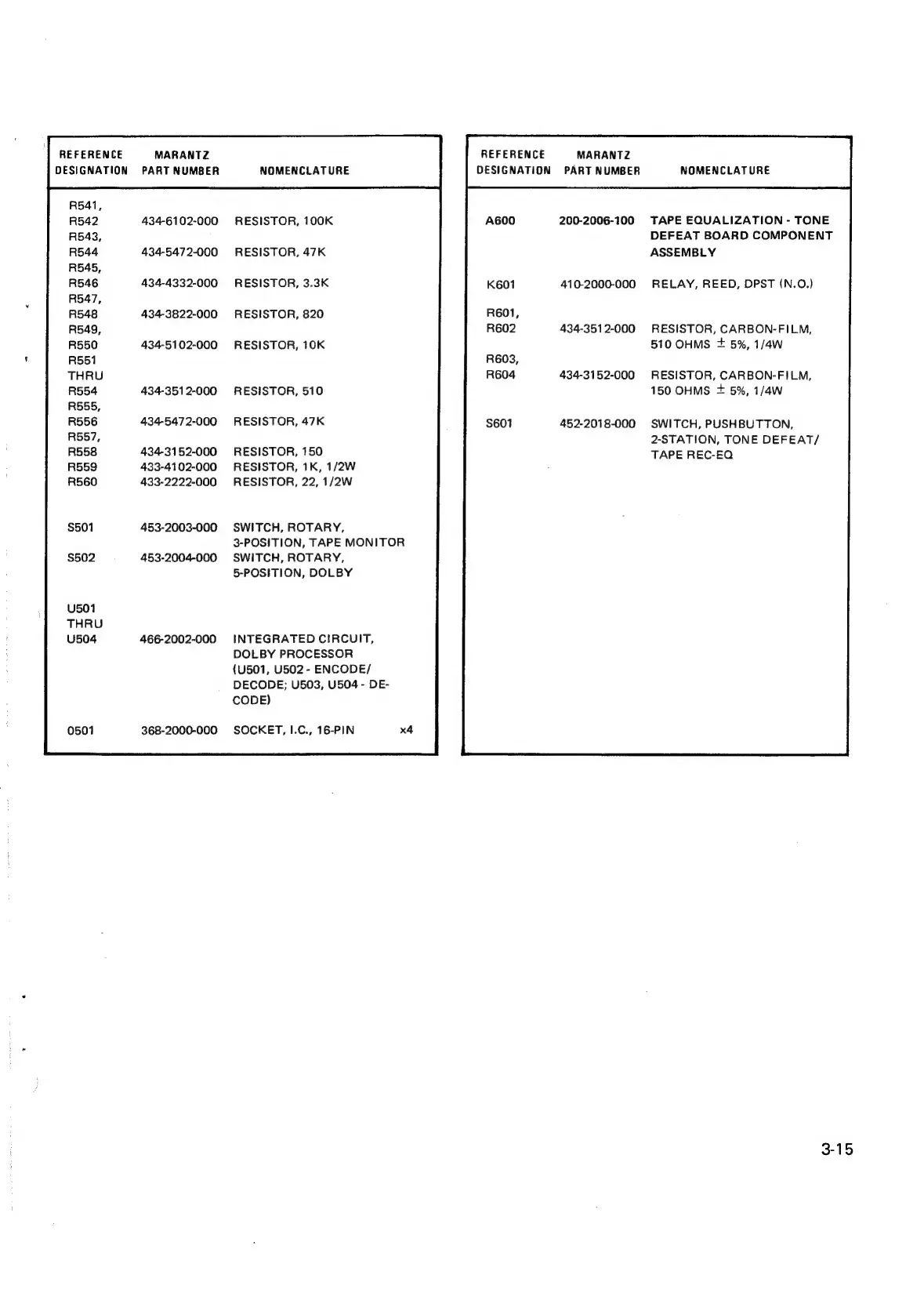

REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
434-6102-000
434-547 2-000
434-4332-000
434-3822-000
434-5102-000
434-351 2-000
434-547 2-000
434-3152-000
433-4102-000
433-2222-000
453-2003-000
453-2004-000
466-2002-000
368-2000-000
NOMENCLATURE
RESISTOR, 100K
RESISTOR, 47K
RESISTOR, 3.3K
RESISTOR, 820
RESISTOR, 10K
RESISTOR, 510
RESISTOR, 47K
RESISTOR, 150
RESISTOR, 1K, 1/2W
RESISTOR, 22, 1/2W
SWITCH, ROTARY,
3-POSITION, TAPE MONITOR
SWITCH, ROTARY,
5-POSITION, DOLBY
INTEGRATED CIRCUIT,
DOLBY PROCESSOR
(U501, U502 - ENCODE/
DECODE; U503, U504 - DE-
CODE)
SOCKET, I.C., 16-PIN
REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
200-2006-100
410-2000-000
434-351 2-000
434-3152-000
452-2018-000
NOMENCLATURE
TAPE EQUALIZATION - TONE
DEFEAT BOARD COMPONENT
ASSEMBLY
RELAY, REED, DPST (N.O.)
RESISTOR, CARBON-FILM,
510 OHMS + 5%, 1/4W
RESISTOR, CARBON-FILM,
150 OHMS + 5%, 1/4W
SWITCH, PUSHBUTTON,
2-STATION, TONE DEFEAT/
TAPE REC-EQ
3-15
