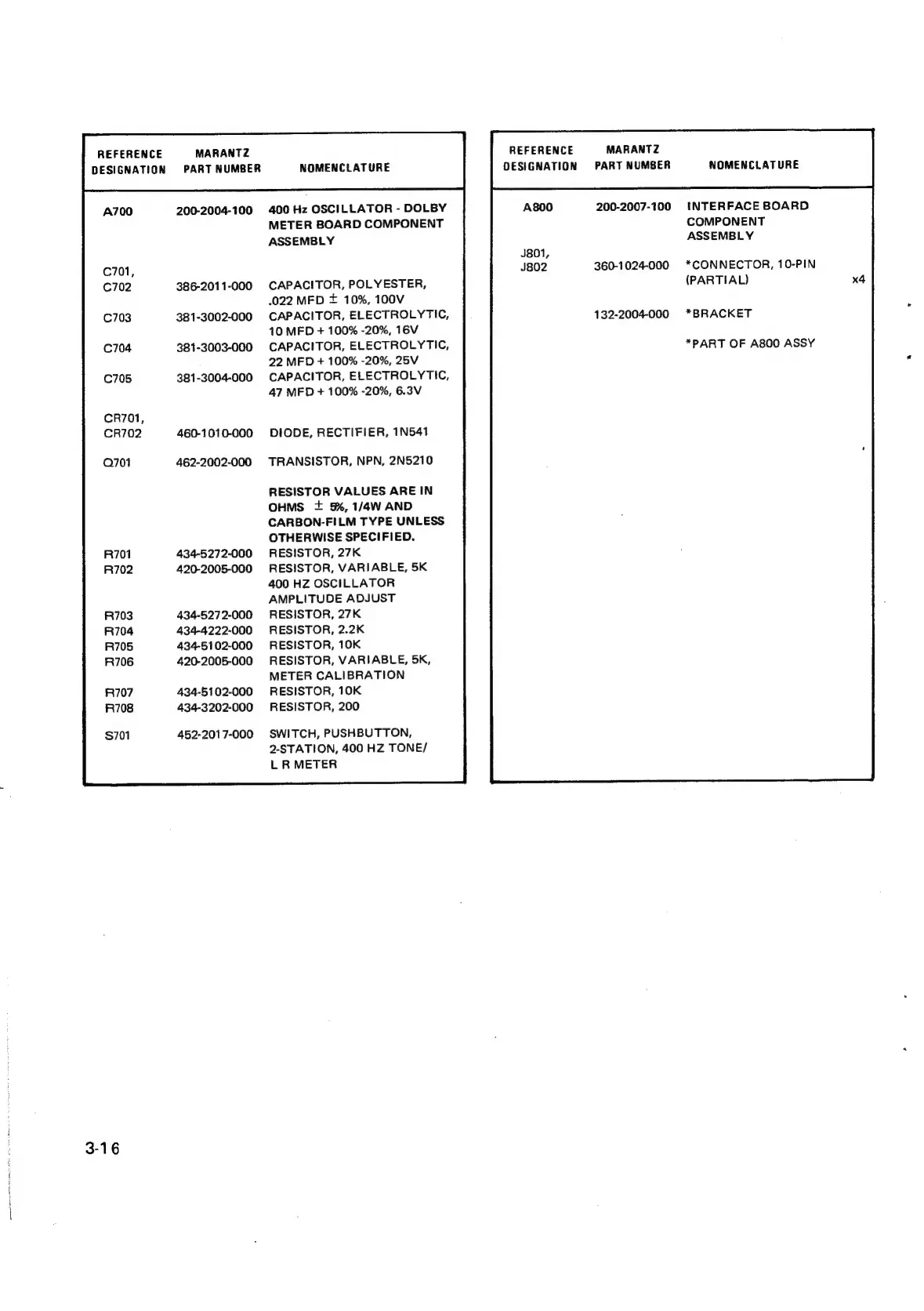

REFERENCE
DESIGNATION
3-16
MARANTZ
PART NUMBER
200-2004-100
386-201 1-000
381-3002-000
381-3003-000
381-3004-000
460-1010-000
462-2002-000
434-5272-000
420-2005-000
434-5272-000
434-4222-000
434-5102-000
420-2005-000
434-5102-000
434-3202-000
452-201 7-000
NOMENCLATURE
400 Hz OSCILLATOR - DOLBY
METER BOARD COMPONENT
ASSEMBLY
CAPACITOR, POLYESTER,
.022 MFD + 10%, 100V
CAPACITOR, ELECTROLYTIC,
10 MED + 100% -20%, 16V
CAPACITOR, ELECTROLYTIC,
22 MED + 100% -20%, 25V
CAPACITOR, ELECTROLYTIC,
47 MED + 100% -20%, 6.3V
DIODE, RECTIFIER, 1N541
TRANSISTOR, NPN, 2N5210
RESISTOR VALUES ARE IN
OHmsS + 9%, 1/4W AND
CARBON-FILM TYPE UNLESS
OTHERWISE SPECIFIED.
RESISTOR, 27K
RESISTOR, VARIABLE, 5K
400 HZ OSCILLATOR
AMPLITUDE ADJUST
RESISTOR, 27K
RESISTOR, 2.2K
RESISTOR, 10K
RESISTOR, VARIABLE, 5K,
METER CALIBRATION
RESISTOR, 10K
RESISTOR, 200
SWITCH, PUSHBUTTON,
2-STATION, 400 HZ TONE/
LR METER
REFERENCE
DESIGNATION
MARANTZ
PART NUMBER
200-2007-100
360-1024-000
132-2004-000
NOMENCLATURE
INTERFACE BOARD
COMPONENT
ASSEMBLY
*CONNECTOR, 10-PIN
(PARTIAL)
*BRACKET
*PART OF A800 ASSY
