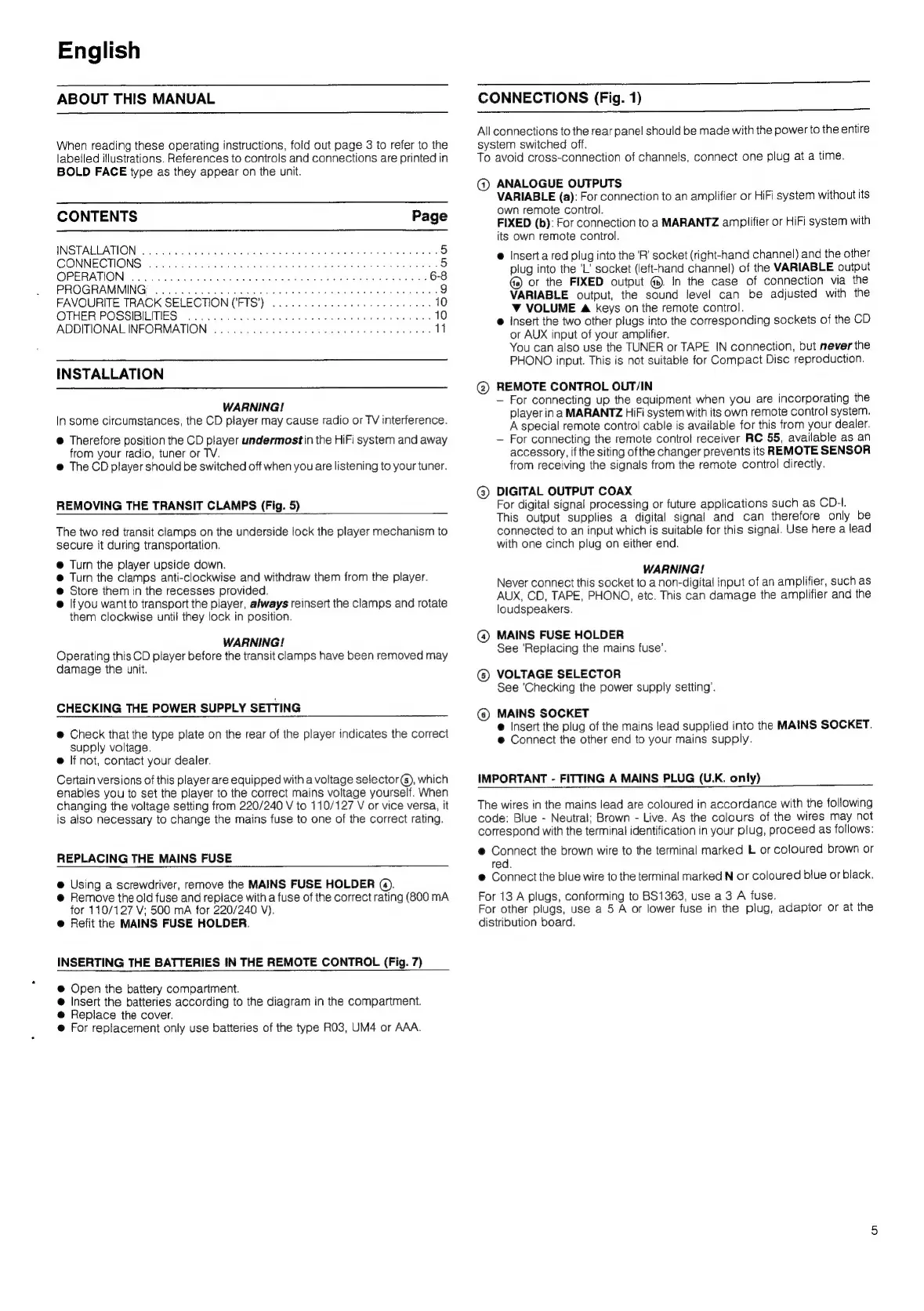

ABOUT THIS MANUAL
When reading these operating instructions, fold out page 3 to refer to the
labelled illustrations. References to controls and connections are printed in
BOLD FACE type as they appear on the unit.
CONTENTS Page
INSTALLATION. snd erp tateeent ae: ouibiinn geen CAUSE RGA AER GM ctee eas 5
CONNECTIONS <.3.54.65 cn pas ae dan ae hed pdt Ogee aE End agy Gates 5
OPERATION 3 Ger dele nid lte ka pote datas ae gheste atonal Nee gaurd GE 6-8
PROGRAMMING ~ sehisc.ccs hates ta yea sles wget: EF Oa le egal ali 9
FAVOURITE TRACK SELECTION (‘FTS’) 2.0... eee eee eee eee 10
OTHER:POSSIBILITIES x. fo ecest.ay wisi ingeits opcaliste-dhaieae taeliutle 3G SUNN Girne 10
ADDITIONAL INFORMATION 1.00... ... 00000. c eee eee 11
INSTALLATION
WARNING!
In some circumstances, the CD player may cause radio or TV interference.
@ Therefore position the CD player undermostin the HiFi system and away
from your radio, tuner or TV.
@ The CD player should be switched off when you are listening to your tuner.
REMOVING THE TRANSIT CLAMPS (Fig. 5)
The two red transit clamps on the underside lock the player mechanism to
secure it during transportation.
@ Turn the player upside down.
@ Turn the clamps anti-clockwise and withdraw them from the player.
@ Store them in the recesses provided.
@ If you wantto transport the player, always reinsert the clamps and rotate
them clockwise until they lock in position.
WARNING!
Operating this CD player before the transit clamps have been removed may
damage the unit.
CHECKING THE POWER SUPPLY SETTING
@ Check that the type plate on the rear of the player indicates the correct
supply voltage.
e@ If not, contact your dealer.
Certain versions of this player are equipped with a voltage selector), which
enables you to set the player to the correct mains voltage yourself. When
changing the voltage seiting from 220/240 V to 110/127 V or vice versa, it
is also necessary to change the mains fuse to one of the correct rating.
REPLACING THE MAINS FUSE
@ Using a screwdriver, remove the MAINS FUSE HOLDER ().
@ Remove the old fuse and replace with a fuse of the correct rating (800 mA
for 110/127 V; 500 mA for 220/240 V).
@ Refit the MAINS FUSE HOLDER.
INSERTING THE BATTERIES IN THE REMOTE CONTROL (Fig. 7)
@ Open the battery compartment.
@ Insert the batteries according to the diagram in the compartment.
@ Replace the cover.
@ For replacement only use batteries of the type RO3, UM4 or AAA.
CONNECTIONS (Fig. 1)
All connections to the rear panel should be made with the power to the entire
system switched off. ;
To avoid cross-connection of channels, connect one plug at a time.
@ ANALOGUE OUTPUTS
VARIABLE (a): For connection to an amplifier or HiFi system without its
own remote control.
FIXED (b): For connection to a MARANTZ amplifier or HiFi system with
its own remote control.
@ Insert a red plug into the 'R’ socket (right-hand channel) and the other
plug into the ’L’ socket (left-hand channel) of the VARIABLE output
or the FIXED output @. In the case of connection via the
VARIABLE output, the sound level can be adjusted with the
Vv VOLUME & keys on the remote control.
@ Insert the two other plugs into the corresponding sockets of the CD
or AUX input of your amplifier.
You can also use the TUNER or TAPE IN connection, but never the
PHONO input. This is not suitable for Compact Disc reproduction.
@ REMOTE CONTROL OUT/IN
— For connecting up the equipment when you are incorporating the
player ina MARANTZ HiFi system with its own remote control system.
A special remote control cable is available for this from your dealer.
— For connecting the remote contro! receiver RC 55, available as an
accessory, if the siting of the changer prevents its REMOTE SENSOR
from receiving the signals from the remote control directly.
@ DIGITAL OUTPUT COAX
For digital signal processing or future applications such as CD-I.
This output supplies a digital signal and can therefore only be
connected to an input which is suitable for this signal. Use here a lead
with one cinch plug on either end.
WARNING!
Never connect this socket to a non-digital input of an amplifier, such as
AUX, CD, TAPE, PHONO, etc. This can damage the amplifier and the
loudspeakers.
@ MAINS FUSE HOLDER
See ‘Replacing the mains fuse’.
®© VOLTAGE SELECTOR
See 'Checking the power supply setting’.
MAINS SOCKET
@ Insert the plug of the mains lead supplied into the MAINS SOCKET.
@ Connect the other end to your mains supply.
IMPORTANT - FITTING A MAINS PLUG (U.K. only)
The wires in the mains lead are coloured in accordance with the following
code: Blue - Neutral: Brown - Live. As the colours of the wires may not
correspond with the terminal identification in your plug, proceed as follows:
@ Connect the brown wire to the terminal marked L or coloured brown or
red.
e@ Connect the blue wire to the terminal marked N or coloured blue or black.
For 13 A plugs, conforming to BS1363, use a 3 A fuse.
For other plugs, use a 5 A or lower fuse in the plug, adaptor or at the
distribution board.
